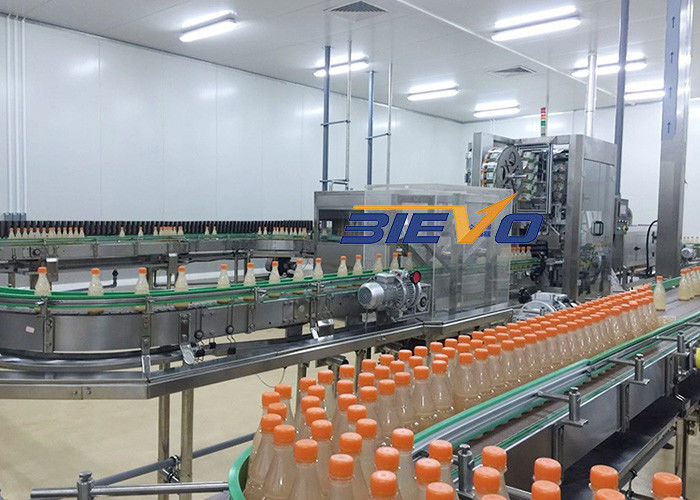

Electric Driven Juice Bottle Filling Machine 6000bph
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | RGF18-18-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 15000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Juice Filling Equipment | Automatic Grade: | Full Automatic |
|---|---|---|---|
| Material: | SUS 304/316 | Voltage: | Standard |
| Dimension(L*W*H): | By Layout | Weight: | 2500KG |
| Filling Precision: | ≤1% | Packaging Material: | Plastic Bottle |
| Filling Temperature: | 85℃ | Certification: | CE, ISO 9001 |
| Condition: | New | Key Selling Points: | Long Shelf Life |
| Wash: | Pure Water Wash | Blending System: | Concentrated Juice Blending |
| Packaging: | Film Shrink Wrapping Machine Or Carton Packing Machine | Workshop Layout: | Free Design |
| Power: | 3.5kw | Driven Type: | Electric |
| Machinery Capacity: | 6000bph | ||
| High Light: | Electric Juice Bottle Filling Machine,6000bph Juice Bottle Filling Machine,SUS 304 Juice Bottle Filling Machine |
||
Product Description
RGF18-18-6 Hot Filling 6000bph Juice Filling Machine
Fruit vegetable juicer production line apple juice processing machinery / fruit juice line
Product Description:
Standard type of RCGF series hot filling machine is "3-in-1".aiming at special production condition,one disinfectant rinser can be increased to be 4-in-1 monobloc.the system gives full consideration for beverage's characteristics(e.g.it is easy to have foaming for tea beverage and mixed juice.)and main technical requirement of hot filling.
1. The machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine.
2. This 3-in-1 monobloc machine is for fruit juice, tea beverage, etc. Processing.
3. Direct connection technology is used between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor. It is easy to change the size of bottles.
4. Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to change the size of bottles easily, without adjusting the equipment height. Only arch board and star wheel such little nylon parts need to be changed.
5. The head of filling machine is made of better stainless steel, which is firm and endurable.
Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Filling Parts.
High speed and mass flow filling valve ensures the high filling speed and exact fluid level.Filling valve have itself reflux device,Vacuum device increase the liquid level.
Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Air Conveyor.
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.
Flat Conveyor.
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
| Model | RGF14-12-4 | RGF18-18-6 | RGF24-24-8 | RGF32-32-10 | RGF40-40-12 | RGF50-50-15 |
| Capacity | 3000BPH | 6000BPH | 8000BPH | 10000BPH | 15000BPH | 22000BPH |
| Washing No | 14Heads | 18Heads | 24Heads | 32Heads | 40Heads | 50Heads |
| Filling No | 12Heads | 18Heads | 24Heads | 32Heads | 40Heads | 50Heads |
| Capping No | 4Heads | 6Heads | 8Heads | 10Heads | 12Heads | 15Heads |
| Diameter of bottles :50-100mm | ||||||
| Height of bottle :100-300mm | ||||||
| Motor power | 2.2KW | 3.7KW | 5.5KW | 7.5KW | 11KW | 15KW |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one
year without adding any aseptic.
4. After sales
After checking, we offer 2 yearsas quality guarantee, free offer wearing parts and offer other parts at the lowest price. In
quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician. After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.automatic water filling machine video
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one
year without adding any aseptic.
4. After sales
After checking, we offer 2 yearsas quality guarantee, free offer wearing parts and offer other parts at the lowest price. In
quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician. After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.automatic water filling machine video
