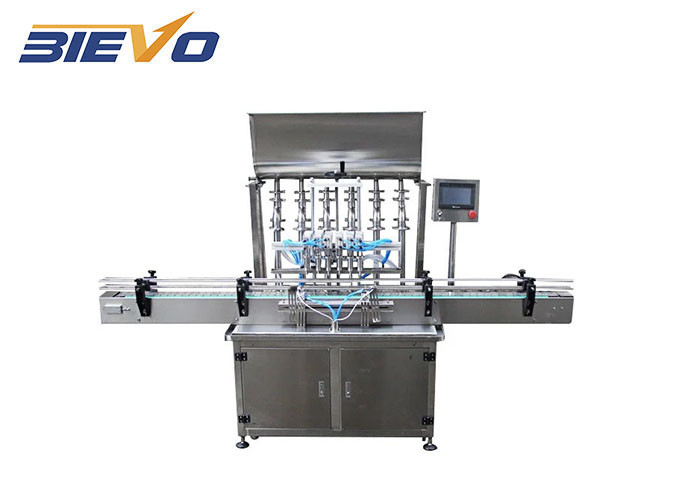

4 Nozzles 15ml 380V Viscous Liquid Filling Machine

4 Nozzles 15ml 380V Viscous Liquid Filling Machine

Product Details:

Place of Origin: China,Jiangsu
Brand Name: BIEVO
Certification: CE
Model Number: RGZ-2

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 12000dollers/set
Packaging Details: wood case
Delivery Time: 20-30working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Type: Filling Machine Automatic Grade: Automatic
Material: SUS 304 Capacity: 40-45 Bottles/Min
Filling Nozzles: 2PC Weight: 2500KG
Dimension(L*W*H): L1680*W1680*H1930mm Function: Bottle Liquid Filling
Filling Accuracy: ±1% Core Components: Pump, PLC, Gear
Filling Material: Oil Key Selling Points: 2020 Hot Product
Application: Toner,serum, Cream,lotion Filling And Capping Control System: Plc+Touch Screen
Filling Volume: 15-250ml Keywords: Oil Filling Packing Machines
Driven Type: Electric Machinery Capacity: 2500BPH/1L-5L
Air Pressure: 0.5MPA Usage: Filling For Lotion,Cream, Shampoo,Liquid Soap,Toner,Conditioner
High Light:

380V Viscous Liquid Filling Machine


2500bph Viscous Liquid Filling Machine


380V Shampoo Bottle Filling Machine

Product Description

Automatic Viscous Liquid/Paste Bottle Filling Machine For Liquid Soap, Body Lotion, Shampoo Production Line

4 Nozzles 15ml 380V Viscous Liquid Filling Machine 0

Introduction of Automatic RotaryType Viscous Liquid/cream/lotion/cosmetic Filling Machine::

It is suitable for the filling of sticky sauces with flavors such as shampoo,hair conditioner,detergent.shower gel etc.Filling mouth adopts pneumatic drip-proof device, filling no wire drawing, no dripping; There are filling volume adjustment handles, filling speed adjustment knobs, which can adjust the filling volume and filling speed arbitrarily; the filling precision is high; According to the requirements of the environment, it can be changed to a full-air-explosion-proof type. It is completely de-energized and safer.


1. Each stand-alone machine can be operated independently and linked;
2. PLC control, touch bottle operation, simple and convenient operation;
3. The use of international famous brand electrical components, performance and stability;
4. number of parts, and the adjustment is simple;
5. Plastic bottles and glass bottles are customized according to customer requirements.

Suitable of Automatic RotaryType Viscous Liquid/cream/lotion/cosmetic Filling Machine: :
detergent, shampoo, dishwasher, liquid soap,oil, hand santizer.etc
Bottle Material : PE PP Bottle
Bottle Type : Round / Square / Unique
Cap : Screw cap/ Pump cap
Label : Sticker Label

1.The parts which contact liquid are SUS316L stainless steel and others are SUS304 stainless steel
2. It has intuitive and convenient operation, measuring accurate, positioning precision
3. Fully in accordance with the GMP standard production and passed CE certification
4. Siemens Touch screen/PLC+Servo motor driven control(optional)
5. No bottle no filling/plugging/capping
6. HS Code:84223090.90
Main Technical Parameter:
Filling Volume 100-5000ml
Filling nozzle 2/4/6/8/10/12
Filling Speed 1000-6000 bottles/min
Filling Precision ±0.5%
Metering system Piston pump
Power Supply 220V/380V 50/60Hz
Power 2.0KW
Weight 600kg
Dimension(mm) 2500*1500*1800
Famous brand electrical part :
Machine frame SUS304 Stainless steel
Contact material parts SUS316L Stainless steel
Main Motor ABB Switzerland
Inverter Mitsubishi Japan
Air Switch Schneider France
Contactor Schneider France
Relay Omron Japan
OFA Autonics Korea
Bearing IGUS Germany
CAM indexer Shangdong China
Turntable Plastic POM Japan
Cylinder AIRTAC Taiwan
Touch screen Siemens Germany
PLC Siemens Germany
Servo motor driven Mitsubishi Japan

4 Nozzles 15ml 380V Viscous Liquid Filling Machine 1


4 Nozzles 15ml 380V Viscous Liquid Filling Machine 2

4 Nozzles 15ml 380V Viscous Liquid Filling Machine 3

4 Nozzles 15ml 380V Viscous Liquid Filling Machine 4

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

4 Nozzles 15ml 380V Viscous Liquid Filling Machine 5

4 Nozzles 15ml 380V Viscous Liquid Filling Machine 6

<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
