XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine

XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine

  • High Light

    Automatic Disinfectant Filling Machine

    ,

    2.5KW Disinfectant Filling Machine

    ,

    2.5KW hand sanitizer bottle filling machine

  • Type
    Filling Machine
  • Automatic Grade
    Full Auto
  • Driven Type
    Electric
  • Voltage
    220V / 380V / 415V
  • Dimension(L*W*H)
    2000*800*1650mm
  • Weight
    800KG
  • Name
    Automatic Disinfection Hand Sanitizer Filling Sealing Machine
  • Filling Type
    Piston Filling Machine
  • Certification
    CE
  • Machine Type
    Shrink Labeling
  • Condition
    New
  • Key Selling Points
    Easy To Operate
  • Packaging Type
    Plastic Bottle Glass Bottle
  • Main Function
    Disinfection Liquid Bottle Filling Sealing
  • Application
    Bottles
  • Power
    2.5kw
  • Gas Consumption
    1mpa
  • Working Air Pressure
    6-7kg/cm2
  • Material
    Stainless Steel
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    XGZ
  • Minimum Order Quantity
    1set
  • Price
    6000dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    20 working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine

China Automatic Disinfectant Toilet cleaning liquid Filling Machine

Product  Information :

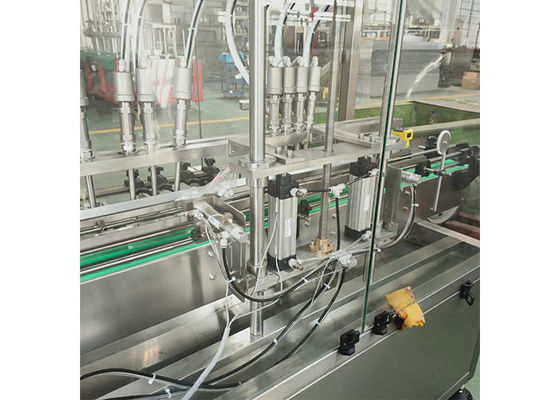

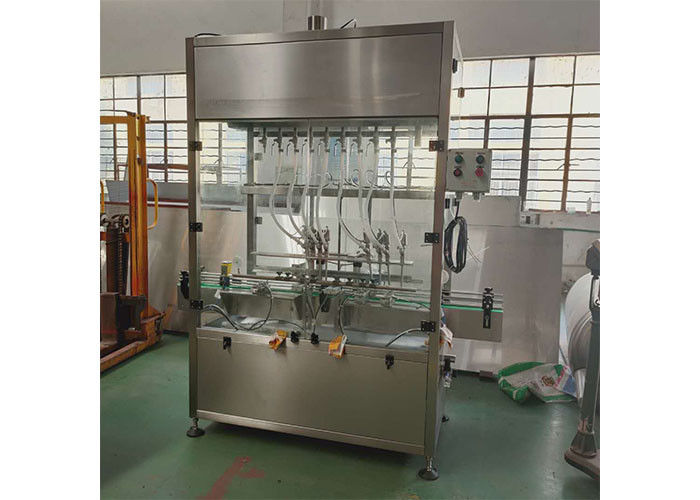

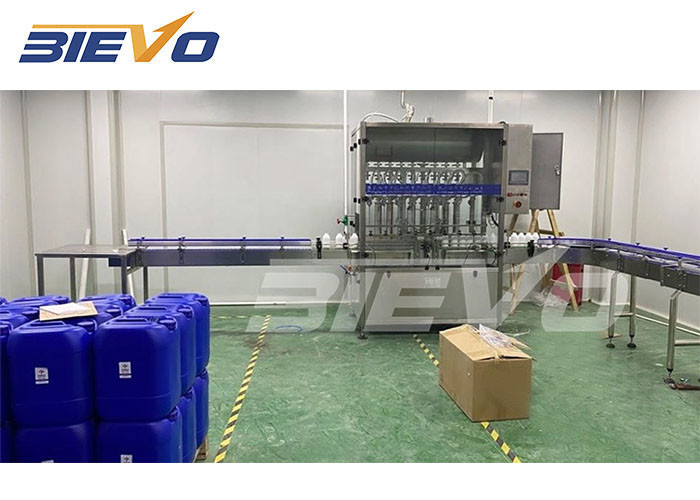

Full-automatic Anticorrosive Filling Machine With Bottle Unscrambler adopt programmable logic controller ( PLC) and human machine interface system. Imported photoelectric track from Korea, suitable for filling materials with high viscosity or bad fluidity.The machine integrates electric and pneumatic functions into one , with electric heating for the hopper and tube, also assembled with mixing functions.The whole machine is with easy cleaning, convenient operation and conforms to GMP standard.

Feature:
Based on the theory of time control measurement, the required filling measurement is determined by the opening and closing time of pneumatic valve. It is suitable for bottle shape filling production in different industries, such as water agent, pharmaceutical, strong corrosive liquid (such as color bleaching liquid, 84 liquid, toilet cleaning liquid, bleaching liquid, daily chemical, pesticide) and other industries. It has the characteristics of accurate measurement, no leakage, photoelectric detection, no bottle and no filling.
Material Information:
80% of the main parts of our products are provided by world famous suppliers.
Equipent Charcteristics:
- Wide suitability
- High filling accuracy
- Labor saving
- Easy to use and maintain

XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine 0





XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine 1





XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine 2

XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine 3

XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine 4

XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine 5

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine 6

XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine 7

Q1: Where is your factory? How can I visit there?

A1: Our location is No.66, Baixiong Road, Sanxing Town, Zhangjiagang City, Jiangsu Province, China
Our factory is nearby from Shanghai City, if you fly from abroad, we can pick you up at the airport.

Q2: What's your payment stipulation?
A2: Our standard payment is 30% of the total amount for deposit, pay the balance before the shippment. For the others,
we can further discuss.

Q3: Do you have technicians for installation?
A3: We are responsible for the installaion in your country, you can also arange your staffs to our factory to learn how to operate the complete line.

Q4: How about the spare parts?
A4: We will send one year enough easy broken spare parts together with the machines when shipping, In the course of the warranty time, we can delivery you including the cost and fees.
XGZ Automatic Disinfectant Filling Machine 2.5KW Hand Sanitizer Bottle Filling Machine 8

<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
