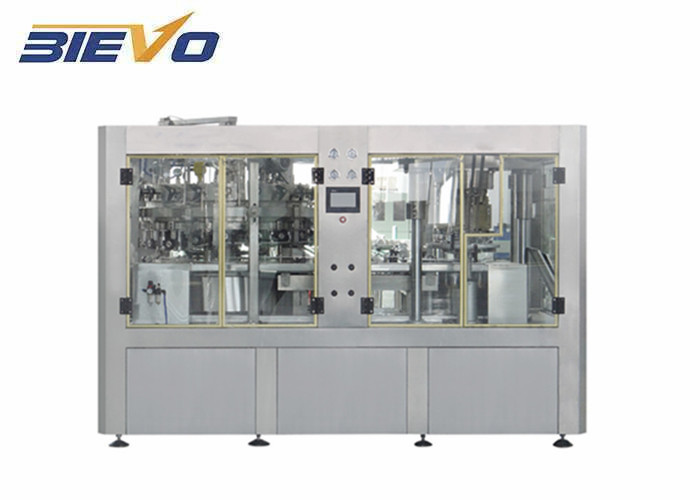

380V 12 Heads 1000cph Small Beer Filling Machine For Arbonated Beverages
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Model Number: | DGF12-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 20000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 20-30working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Certification: | CE, ISO 9001 | Type: | Beer Can Filling Machine |
|---|---|---|---|
| Automatic Grade: | Automatic | Material: | SUS 304/SUS 316 |
| Voltage: | 380V/220V | Dimension(L*W*H): | 2200X2100X2200MM |
| Weight: | 2500KG | Filling Material: | Beer/carbonated Soft Drinks |
| Filling Valve Head: | 12 | Bottle Shape: | Aluminum Can |
| Core Components: | Pump, PLC | Filling Accuracy: | 99.9% |
| Condition: | New | Key Selling Points: | Full Automatic |
| Bottle Size: | 200ml-1500ml (Customized) | Function: | Cans Filling And Sealing |
| Control System: | Plc+touch Screen | Workshop Layout: | Free Design |
| Application: | Beverage | Packaging Material: | Wood |
| Driven Type: | Electric | Machinery Capacity: | 1000-2000CPH |
| High Light: | 1000cph small beer filling machine,380V small beer filling machine,12 heads small beer filling machine |
||
Product Description
Rotating Carbonated Beverages Liquid Aluminum Automatic Packing Beer Can Filling Machine
1. Model GF12-1
The machine is advanced filling and capping equipment, it’s designed on the basis of absorbing domestic and foreign advanced technology. It is mainly used in filling and capping carbonated beverages like soft drinks, cola, sparkling wine, etc. It has such
advantages as advanced construction, stable working, convenient operation, and repair & maintenance, transducer control as well as high production efficiency. It is the ideal equipment for mid-scale & small-scale beverage factory.
• Cam driven seamer with an electric stepper motor increases seam reliability with significantly easier setup and maintenance compared to pneumatic seamers
• Utilizes the same industry-leading fill head technology as all of MIC’s canning systems
• Co2 purge function and fobbing after fill makes dissloved oxygen level become less.
• Simple change over between multiple can heights and widths!
• Only one operator needed
• Poly-carbonate enclosure for safety and hygiene
• Count pressure filling system
• Adjustable fill level sensors make precise
• Multiple post-packaging options available
• Shrink sleeve and pressure sensitive wrap around label options available
| Model | GF12-1 | GF18-4 |
| Capacity | 1200-1500cans/hour | 5000-6000 CPH |
| Can volume | 200ml-1000ml | 200ml-1000ml |
| Can diameater | 50-70mm | 50-70mm |
| Bottle high | 120-170mm | 120-170mm |
| Machine power | 1.5KW | 2.2KW |
| Machine size | 175x120x195CM | 305x175x220CM |
| S/N | Name | Brand | Country |
| 1 | Main motor | ABB | Switzerland |
| 2 | Inverter | MITSUBISHI | Japan |
| 3 | PLC | OMRON | Japan |
| 4 | Touch screen | MITSUBISHI | Japan |
| 5 | Contactor | SCHNEIDER | France |
| 6 | Thermo- relay | SCHNEIDER | France |
| 7 | Air-break switch | SCHNEIDER | France |
| 8 | Proximity switch | TURCK | USA |
| 9 | Photoelectric switch | BANNER | USA |
| 10 | Air circuit system | SMC | Japan |
| 11 | Water pump | Southern | Japan |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If
needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
Installation and commissioning
After the equipment arrived buyer's , workshop, the buyer should take it's place for each equipment according to the supplied ; layout; the seller l will d send the experienced technician to guide the installation and debugging and trail ,production, and fulfill the designed capability within the designed time. The installation, debugging and g training is about 7 days.
Training
The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.
After-sales services
1.After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price.
2.Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipment and maintenance, to find the common malfunctions and fault clearing in time;
3.If the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone;
4.If relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
5.After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
Packaging & Shipping
Packaging: International standard export package;
Terms: T/T, 30% down payment, and the balance 70% prior to the delivery out of factory.
Shipping: 25 working days after receiving 30% deposit of total amount of contract or irrevocable L/C at sight.
