OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml

OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml

  • High Light

    2.2KW mustard oil bottle filling machine

    ,

    1000ml mustard oil bottle filling machine

    ,

    5000ml edible oil bottle packing machine

  • Type
    Edible Oil Filling Machine
  • Automatic Grade
    Automatic
  • Material
    SUS 304
  • Voltage
    220V / 380V / 415V
  • Packaging Material
    Wood
  • Weight
    2500KG
  • Dimension(L*W*H)
    2700X2000X2200MM
  • Certification
    CE, ISO 9001:2008
  • Filling Accuracy
    99.9%
  • Core Components
    Pump, PLC, Gear
  • Filling Material
    Oil
  • Key Selling Points
    2020 Hot Product
  • Bottle Size
    1000ml-5000ml (Customized)
  • Function
    Bottle Liquid Filling
  • Control System
    Plc+touch Screen
  • Workshop Layout
    Free Design
  • Keywords
    Oil Filling Packing Machines
  • Driven Type
    Electric
  • Machinery Capacity
    2500BPH/1L-5L
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    OGZ-2
  • Minimum Order Quantity
    1set
  • Price
    25000dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    20-30working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml

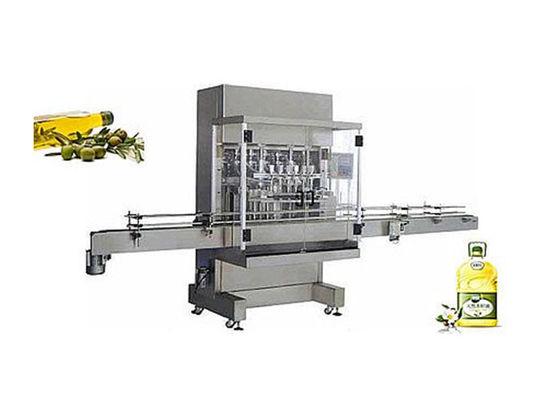

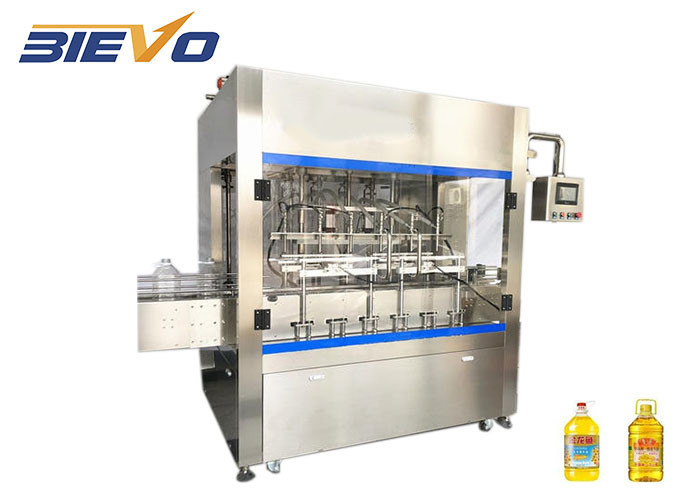

Linear automatic cooking/mustard/edible/olive/vegetable oil filling machine

OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml 0

OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml 1

OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml 2

Linear automatic cooking/mustard/edible/olive/vegetable oil filling machine

1. Model OKG-12

2.Capacity : 2500BPH (1L)
3. Suitable : Plastic bottle 1L-5L
4. Machine size : 2800x2250x2250mm
5. Machine electric brand : SIEMENS , MITSUBISHI
6.
Machine power : 2.2KW
7. Machine weight : 3500kg
8. Machine include function :filling capping
9. Application: Beverage, Mineral water, pure water, flavor water;
Linear automatic cooking/mustard/edible/olive/vegetable oil filling machine.
Linear automatic cooking/mustard/edible/olive/vegetable oil filling machine
1) This machine has compact structure, flawless control system, and is convenient To operate with high grade automatism
2) All the parts contacting the media are made of high quality stainless steel, Able to bear corrosion and easily rinsed
3) Adopts high precision and high speed ration filling valve so that the oil level is exact with loss, ensuring high quality filling
4) The capping head has constant twisting movement, which ensures capping Quality, without damaging caps
5) Adopts high efficiency cap tidying system, with flawless equipment for feeding caps and protecting
6) Needs only to change the pinwheel, bottle entering screw and arched board when changing bottle models, with simple and convenient operation
7) There is flawless equipment for overload protecting, which can protect effectively machine and operator safety

OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml 3

S/N Name Brand Country
1 Main motor ABB Switzerland
2 Inverter MITSUBISHI Japan
3 PLC OMRON Japan
4 Touch screen MITSUBISHI Japan
5 Contactor SCHNEIDER France
6 Thermo- relay SCHNEIDER France
7 Air-break switch SCHNEIDER France
8 Proximity switch TURCK USA
9 Photoelectric switch BANNER USA
10 Air circuit system SMC Japan
11 Water pump Southern Japan















OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml 4

OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml 5

OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml 6

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml 7

OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml 8

Q1: Where is your factory? How can I visit there?

A1: Our location is No.66, Baixiong Road, Sanxing Town, Zhangjiagang City, Jiangsu Province, China
Our factory is nearby from Shanghai City, if you fly from abroad, we can pick you up at the airport.

Q2: What's your payment stipulation?
A2: Our standard payment is 30% of the total amount for deposit, pay the balance before the shippment. For the others,
we can further discuss.

Q3: Do you have technicians for installation?
A3: We are responsible for the installaion in your country, you can also arange your staffs to our factory to learn how to operate the complete line.

Q4: How about the spare parts?
A4: We will send one year enough easy broken spare parts together with the machines when shipping, In the course of the warranty time, we can delivery you including the cost and fees.
OKG-12 2.2KW Mustard Oil Bottle Filling Machine 1000ml-5000ml 9

<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
