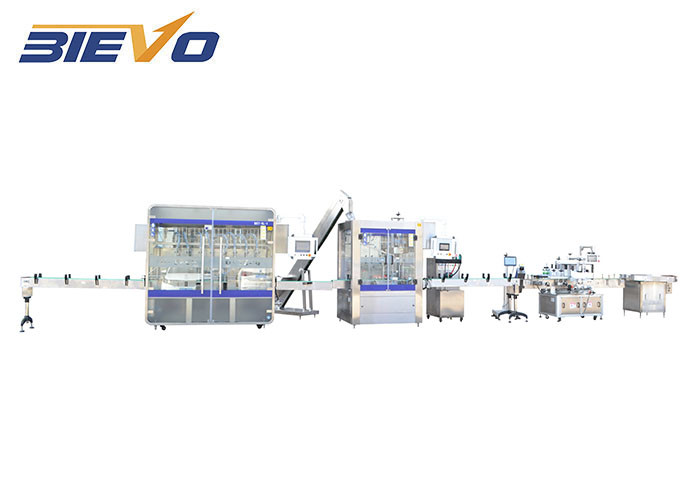

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing

  • High Light

    2.2KW Cooking Oil Filling Machine

    ,

    Cooking Oil Filling Machine 1000ml

    ,

    5000ml mustard oil packing machine

  • Type
    Edible Oil Filling Machine
  • Automatic Grade
    Automatic
  • Material
    SUS 304
  • Voltage
    220V / 380V / 415V
  • Packaging Material
    Wood
  • Weight
    2500KG
  • Dimension(L*W*H)
    2700X2000X2200MM
  • Certification
    CE, ISO 9001:2008
  • Filling Accuracy
    99.9%
  • Core Components
    Pump, PLC, Gear
  • Filling Material
    Oil
  • Key Selling Points
    2020 Hot Product
  • Bottle Size
    1000ml-5000ml (Customized)
  • Function
    Bottle Liquid Filling
  • Control System
    PLC+Touch Screen
  • Workshop Layout
    Free Design
  • Keywords
    Oil Filling Packing Machines
  • Driven Type
    Electric
  • Machinery Capacity
    2500BPH/1L-5L
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    OGZ-2
  • Minimum Order Quantity
    1set
  • Price
    25000dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    20-30working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing

Automatic Vegetable Cooking Oil Dispenser/Cooking Oil Filling Machine

Automatic paste jam/liquid/honey filling machine

adopts the principle of plunger quantitative filling, into the bottle, positioning, filling, the bottles are automatically controlled by the PLC, in accordance with the GMP standard. Suitable for medical, food, daily chemical, pesticide and fine chemical liquid filling.

Model
RF-GJ-2
Filling capacity (ML)
500-5000ml
Filling velocity (BPM)
10-25 Bottles per minute
Power supply (VAC)
220V/380V
Motor power (KW)
2.2
Gas consumption (MIN)
4KGS×30LITER
Outline dimension (mm)
6000X1200X2200
Weight(KG)
300

Main Features

1. Touch screen operation interface;
2.Up and down movement type filling, effectively prevent the foam from being
produced, easy to take apart and wash;
3.The illing accuracy can reach +/-1%;
4.The flling cylinder is ground, unique flling valve design, no leakage;
5.With no bottle no flling and automatic bottle stop function;
6. Design different positioning devices according to the actual situation of the
bottle;
7.The equipment is easy to clean, can be disassemble without tools, it can also be
cleaned online or high temperature sterilization;
8. PLC programmable control use Japan Mitsubishi;
9. Frequency converter adopts France Schneider;
10. Pneumatic components adopt Taiwan Airtac;
11. Material contact parts are made of SUS304# stainless steel;
12. The equipment meets the hygiene and safety standards. The user can choose
the glass protective cover.

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing 0

S/N Name Brand Country
1 Main motor ABB Switzerland
2 Inverter MITSUBISHI Japan
3 PLC OMRON Japan
4 Touch screen MITSUBISHI Japan
5 Contactor SCHNEIDER France
6 Thermo- relay SCHNEIDER France
7 Air-break switch SCHNEIDER France
8 Proximity switch TURCK USA
9 Photoelectric switch BANNER USA
10 Air circuit system SMC Japan
11 Water pump Southern Japan


SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing 1

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing 2

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing 3

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing 4

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing 5

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing 6

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing 7

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing 8

Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.

Q4: How do you offer technical support?
A4:

1.Technical support by phone, email or whatsapp/Skype around the clock
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas



Q5:How do you work your after sales service?
A5:Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
And You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.

Q6: How about the spare parts?
A6: After we deal down all the things , we will offer you a spare parts list for your reference.


Several answers needed before quotation:
1.Filling material?Viscosity?Corrosive?Foamy?Explosion proof?Silk or drop?
2.Filling volume?ML?
3.Filling speed?How many bottles per hour?
4.Filling capping labeling machines together?

SUS 304 2.2KW Cooking Oil Filling Machine 1000-5000ml Mustard Oil Packing 9

<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
