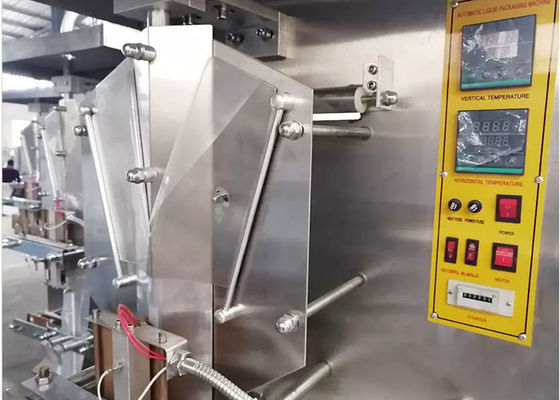

1.6KW PE Film Water Sachet Filling Machine 160-320mm Sealing Machine
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | SJ-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 1500dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Sachet Filling Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Material: | SUS 304 | Voltage: | 220V / 380V / 415V |
| Dimension(L*W*H): | 1050x850x2050mm | Weight: | 150KG |
| Filling Material: | Drinking Water | Bags Meterial: | PET/PE Firm |
| Film Width: | 160-320mm | Filling Accuracy: | 99.9% |
| Certification: | CE, ISO 9001:2008 | Condition: | New |
| Key Selling Points: | Full Automatic | Packing Speed: | 30-40bag/min |
| Function: | Bags Filling Machine | Control System: | PLC+Touch Screen |
| Workshop Layout: | Free Design | Application: | Beverage |
| Driven Type: | Electric | Packaging Type: | Stand-up Pouch, Bags, Pouch |
| High Light: | PE Film water sachet filling machine,1.6KW water sachet filling machine,320mm sachet sealing machine |
||
Product Description
2000BPH Automatic Liquid Sachet Filling Machine Sachet Packing Machine
yellow wine etc . All packing procedures including ultraviolet ray sterilization , molding of bags , print of dates , filling with fixed quantity , sealing and cutting and numeration , can finished at the same time,all components are made of stainless steels and are designed to meet national hygienic standard,C model adopt composite film.They are all can be designed middle sealing ,side sealing or photo-electric detection .Machine main structure is Stainless steel. suit for single layer film packing.
Features:
1. Automatically finish the processes of pouch forming, filling, sealing, cutting, date printing for a pillow pouch packaging.
2. Two types suit for single-layer PE film and laminated films.
3. PLC controller and A Pattern calibration photoelectric controller device, ensure the patterns will be complete and beautiful.
4. Quantitative piston pump filling ensures packaging volume can be adjusted within an accurate range.
5.Back sealing, three-side sealing, four-side sealing packing method;
6.The packing data and adjustment can be displayed on the screen. The user can directly operate it on it;
7.Assembled with a photoelectric controller to ensure that its packing bag figure are perfect;
8.It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number;
9.The body and the parts touching the material are made of stainless steel;
Application:
Adopts Computer Controll System completly, it can finish the production's process automatically such as making bags, counting, filling, sealing, cutting, printing batch number, making the rip , and so on. It also adopts the adjustable quantificational plunger pump, and it special uses for something which easy to drawbench or dript as shampoo.
| Technical Partments: | ||||
|
Model:
|
SJ-1000
|
SJ-2000
|
SJZF-1000
|
SJZF-2000
|
|
Optional material
|
liquid
|
liquid
|
liquid
|
liquid
|
|
Bag-making length:
|
50-150mm
|
50-250mm
|
50-150mm
|
50-250mm
|
|
Bag-making width:
|
40-150mm
|
40-175mm
|
40-150mm
|
45-175mm
|
|
Packing film width:
|
100-320mm
|
100-380mm
|
100-320mm
|
150-380mm
|
|
Filling range:
|
50-500ml
|
200-1000ml
|
50-500ml
|
200-1000ml
|
|
Speed:
|
2000-2200bags/h
|
1100-1300pcs/h
|
1100-1300bags/h
|
1100-1300bags/h
|
|
Power:
|
1.6kw
|
2.5kw
|
2.1kw
|
2.5kw
|
|
Overall dimension:
|
850*940*1860mm
|
1150*910*2050mm
|
1040*910*1860mm
|
1050*850*2050mm
|
|
Weight:
|
275kg
|
380kg
|
270kg
|
380kg
|
|
Applicable material of the film
|
Single-layer film
|
Single-layer film
|
Single-layer film ;
|
Single-layer film ;
|
| Composite film
|
Composite film
|
|||
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
