BW-6030 PVC Box Shrink Packing Machine 6-8bpm Carton Shrink Wrapping

High Light

PVC box shrink packing machine
,
6bpm carton shrink wrapping machine
,
8bpm carton shrink wrapping machine
Type

Bottle Packing Machine
Machine Type

Shrink Wrapping Packing Machine
Automatic Grade

Full Auto/Semi Auto
Packing Material

PE Firm
Voltage

220V/380V
Dimension(L*W*H)

L5050*W3300*H2100mm
Weight

1000KG
Name

Shrink Film Wrapping Machine/Water Packaging Machine
Packing Speed

6-8 Package
Certification

CE
Machine Type

Pet Bottle Shrink Wrapping Machine
Condition

New
Key Selling Points

Competitive Price
Packaging Type

Bottle Packing Machine
Main Function

Film Wrapping Packaging Machine
Application

Bottles/Cans/Cartons
Power

18kw
Driven Type

Electric
Packaging Type

Firm
Usage

PVC Firm
Place of Origin

China,Jiangsu
Brand Name

BIEVO
Certification

CE
Model Number

FBW-AD
Minimum Order Quantity

1set
Price

6500dollers/set
Packaging Details

wood case
Delivery Time

15 working days
Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability

10 sets per month

BW-6030 PVC Box Shrink Packing Machine 6-8bpm Carton Shrink Wrapping

Name: BW-6030 PVC Box Shrink Packing Machine 6-8bpm Carton Shrink Wrapping
Brand: BIEVO
SKU: FBW-AD
Price: 6500 USD
Availability: InStock
Rating: 4.5 (153 reviews)

button button

Get Price Contact Now

Plastic Film PVC Label Tube Heat Sleeve Labels Cutting Wrapping Shrink Bottle Packing Machine

Pet bottle PE film heat tunnel shrink packing wrapping machine

BW-6030 adopts top brand cylinder in order to work stably when it pushing and sealing Special design of the sealing blade makes sealing line deep-set, and avoids the film sticking the cutter Covert cylinder enhances the convenience for the operator; pressuring device ensures the product without dithering, even the light ones Adjustable front feeding frame ensure packing different shape products perfectlyAdopts solid steel roller with durable silicone pipe, chain conveying

The speed of the conveyor is controlled by frequency inverter.ST-6030 + SM-6040S is a simple and economic model of the sleeve wrappers series. It uses PE film, easy to operate, just push a button by hand to make the sealing automatic.
Description:
BW-6030X semiautomatic sleeve sealing machine is a type of economic one among BSF series, simple operation, push the products manually or pneumatically, sealing the film and the products enter the shrink tunnel automatically, and used PE film to pack products.
Features:
1. BSF-6030X adopts the imported air-cylinder, assure stable pushing and sealing.
2. Adopts specially designed sealing cutter, results in perfect sealing line, avoid the film sticking the cutter.
3. The covered cylinder setting enhance the convenience for the operator; with rear pressing device assure even light product without any shifting.
4. The front frame is adjustable according to different product sizes.
Application:
1. BW-6030X semiautomatic sleeve sealing machine used for packing beverage, beer and mineral water etc with or without a tray; also suitable for shrink wrapping products such as electric appliance, auto spares, furniture and floor board etc.
2. It’s suitable for all kinds of shrink films such as PVC, POF, PP , PE etc.

			Technical Partment

			Facility type
			BW-150A type

			Facility external size
			L5050×W3300×H2100mm

			Wrappage max size
			L600×W400×H350mm

			Shrinkage film size
			PE,PVC,POF

			Shrinkage thermo thickness
			0.03-0.15mm

			Thermo shrinkage tunnel temperature
			160 - 260°can adjust at will

			Max output per minute
			8-12bag

			Facility power
			18Kw

			Actual power
			15Kw/hr

			Pressure requirement
			380/220V

			Facility weight
			1.2T

			Fan machine
			1.1Kw 2set 380V, 65W 4set 380V

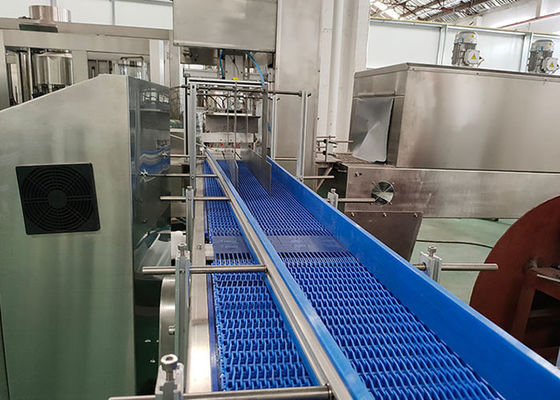

BW-6030 PVC Box Shrink Packing Machine 6-8bpm Carton Shrink Wrapping 0

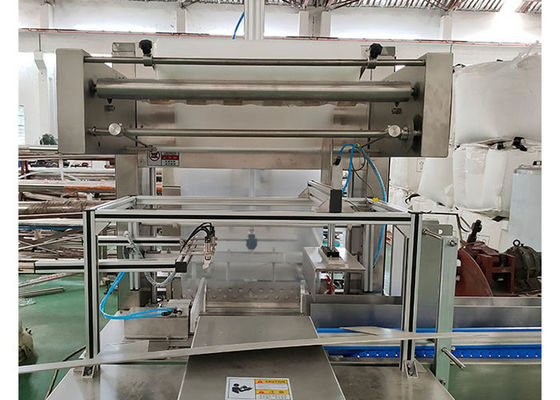

BW-6030 PVC Box Shrink Packing Machine 6-8bpm Carton Shrink Wrapping 1

BW-6030 PVC Box Shrink Packing Machine 6-8bpm Carton Shrink Wrapping 2

BW-6030 PVC Box Shrink Packing Machine 6-8bpm Carton Shrink Wrapping 3

BW-6030 PVC Box Shrink Packing Machine 6-8bpm Carton Shrink Wrapping 4

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

BW-6030 PVC Box Shrink Packing Machine 6-8bpm Carton Shrink Wrapping 5

<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
