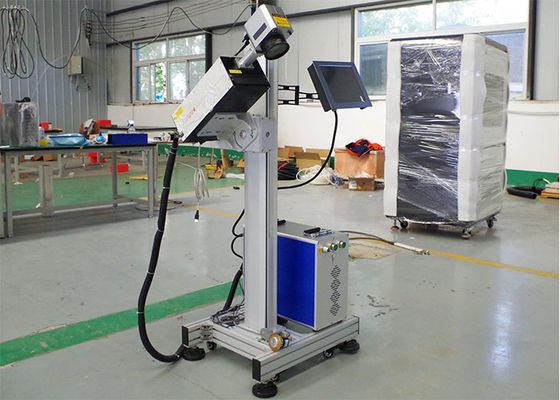

50w 100W Laser Coding Machine Electric 220V UV Laser Marking For Metal Plastic

50w 100W Laser Coding Machine Electric 220V UV Laser Marking For Metal Plastic

Products - Laser Coding Machine
  • High Light

    100W laser coding machine

    ,

    50W laser coding machine

    ,

    220v UV laser marking machine

  • Type
    Date Printer Machine
  • Automatic Grade
    Automatic
  • Machine Type
    Inkjet Date Printer/Laser Printer
  • Voltage
    By Order
  • Laser Source
    Raycus
  • Weight
    500KG
  • Dimension(L*W*H)
    2700X2000X2200MM
  • Marking Depth
    0.01-1mm
  • Laser Source Brand
    RAYCUS
  • Key Selling Points
    2020 Hot Product
  • Condition
    New
  • Cooling Mode
    Air Cooling
  • Function
    70 KG
  • Laser Type
    Fiber Laser
  • Applicable Material
    Metal Plastic
  • Marking Speed
    7000mm/s-12000mm/s
  • Driven Type
    Electric
  • Laser Wavelength
    1064nm
  • Marking Area
    175mm*175mm
  • Certification
    CE, ISO, GS, Sgs, UL
  • Working Accuracy
    0.01mm
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    OGZ-2
  • Minimum Order Quantity
    1set
  • Price
    3500dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    20-30working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

50w 100W Laser Coding Machine Electric 220V UV Laser Marking For Metal Plastic

  • 50w 100W Laser Coding Machine Electric 220V UV Laser Marking For Metal Plastic
  • 50w 100W Laser Coding Machine Electric 220V UV Laser Marking For Metal Plastic
  • 50w 100W Laser Coding Machine Electric 220V UV Laser Marking For Metal Plastic
Get Price Contact Now

High Quality 20W 30W 50W 100W Fiber Laser Coder Printer Marking Machine With Good Price

CO2 Laser code printer Feature

(1) High speed running

The efficiency of the model is very high,even in the face of a fast production line,the output can be matched.

(2) High quality accessories

Laser heads need not be cleaned,not will they age or be replaced over time.

(3) Powerful functions

It can identify large complex graphics,even on difficult materials or in a limited time,can provide high-quality

laser printing effect.

(4) Permanent marking

Ink spray codes may be scratched or erased,but laser jet codes are permanent.

(5) laser print words very clearMachine configuration instructions

Laser: touch screen version(10w,Wave length 9.3,increase by 1000)

Vibrating mirror : Digital,analog mirror.

Field mirror:Singapore brand

Power: Taiwan brand

Encoder : Japanese OMRON.

3. Parameters:




CO2 C6011
CO2 C6030-F
Laser Machine Characteristics
Material
All aluminum structure
Laser
Sealed metal radio frequency carbon dioxide laser generator
Continuous output power
≥10W
≥30W
Laser wavelength
9.3um
10.6um
Galvanometer deflection
High precision Double d scanning system
Engraving speed
≤7000mm/s
Master control
Highly integrated motherboard with 10 inch screen
Operating system
WIN CE
Cooling System
Air cooling system
Laser Parameters
Focus lens
Focal length 138 mm
Marking type
Dot matrix and vector machine (can play both dot matrix and vector)
Minimum line width
0.03mm
Repositioning Accuracy
0.01mm
Marking area
110mm×110mm(Choosable)
Locate mode
Red light focusing
Lines to type
Any lines in the marking range
Production Line Speed
0~100m/min (depends on the material) , 0~200m/min (depends on the material)
Support Types
Font
Standard Chinese and English, Numbers, etc
File Format
BMP/DXF/HPGL/JPEG/PLT
Bar codes
CODE39,CODE128,CODE126,QR
Parameters
Power
220V
Power Consumption
300W
650W
Machine net weight
14kg
25kg
3 d bracket net weight
30kg
Operational Reliability
External temperature 0℃-45℃;Humidity≤95% or less; Non - Condensing;No vibration

50w 100W Laser Coding Machine Electric 220V UV Laser Marking For Metal Plastic 0
50w 100W Laser Coding Machine Electric 220V UV Laser Marking For Metal Plastic 1

What can i do for you?

Q:Are you a manufacturer or trade company?

A:We are a manufacturer in beverage machine field more than 15 years, located at zhangjiagang city,2 hours from Shanghai,1 hour from Wuxi by car. We will pick you up to visit our factory.



Q:Do you have any certification?

A:SGS,ISO,CE



Q:What about the delivery time?

A:Normally 20 - 40 Working days



Q:The after-sale service

A: 24 months warranty.

solve basic questions by telephone, email, whatsapp, wechat and video call.

Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.

Operating manuals will be sent with machine or by email.

We also have overseas agent in different market.



Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes.just send your new bottle drawing or sample to us.



Q: If I want to buy a machine, what information do I need to tell you, do you need from me?
A:a. What kind beverage you want to produce?
   b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
   c. Producing capacity requirement? How many bottles per hour?
   d. Raw water analysis report .
   e. Voltage and factory workshop layout.



Q:What kinds of product you supply?
A: Water purified system / beverage washing filling capping machine / labeling machine / shrink packing machine / PET bottle blowing molding machine / Automatic bottle unscrambler / sterilizer / Carton packing machine / Automatic conveyor system /Juice processing system and so on
