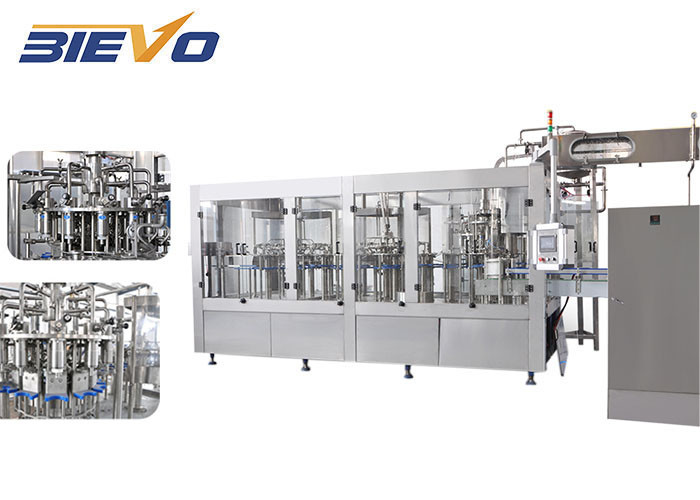

8000bph DGZ24-24-8 415V Juice Filling Line

8000bph DGZ24-24-8 415V Juice Filling Line

Product Details:

Place of Origin: China,Jiangsu
Brand Name: BIEVO
Model Number: RGF18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 15000dollers/set
Packaging Details: wood case
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Certification: CE, ISO 9001:2008 Type: Juice Filling Machine
Model: DGZ24-24-8 Machine Capacity: 6000-8000BPH
Voltage: 220V / 380V / 415V Weight: 2500KG
Dimension(L*W*H): 2360*1830*2250mm Machine Material: 304 Stainless Steel
Filling Precision: ≤±5mm Packaging Material: Wood
Filling Temperature: 85C Condition: New
Key Selling Points: Full Automatic Wash: Pure Water Wash
Blending System: Steam Heating Packaging: Film Shrink Wrapping Machine Or Carton Packing Machine
Workshop Layout: Free Design Power: 3.5kw
Driven Type: Electric Machinery Capacity: 5000bph
High Light:

415V Juice Filling Line


8000bph Juice Filling Line


8000bph milk filling machine

Product Description

6000-8000BPH Juice Production Line / Fruit Juice Production Line / Filling Machine

Product Description:

Small bottle juice  washing filling and capping machine adopts advanced Programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.

 Product Features -

1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and fast when changing the bottle type.
2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.
3. Adopting advanced gravity filling principle, the filling is fast, stable, and accurate.
4. Adopt magnetic torque type capping head to realize capping and capping. The capping torque is infinitely adjustable, the sealing is tight and reliable, and the cap is not hurt.
5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.
6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.
8000bph DGZ24-24-8 415V Juice Filling Line 0

8000bph DGZ24-24-8 415V Juice Filling Line 1

8000bph DGZ24-24-8 415V Juice Filling Line 2

Washing Parts.
Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic synchronized working.Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.
8000bph DGZ24-24-8 415V Juice Filling Line 3

Filling Parts.

Pressure or vacuum filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.

8000bph DGZ24-24-8 415V Juice Filling Line 4
Capping Parts.
No Bottle No Filling, no caps no capping, no caps auto stops.When bottle jam auto stop, machine accident auto stop.Open the window when machine running, machine auto paused.Heavy duty stainless steel filling pump & rinsing pump.Food grade 316L or 304stainless steel contact parts, smooth & fine Polish, no dead angles.
8000bph DGZ24-24-8 415V Juice Filling Line 5

Air Conveyor.

- Air conveyor is fixed on the floor, with fan installed on the top.

- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.

- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded

8000bph DGZ24-24-8 415V Juice Filling Line 6

Flat Conveyor.

- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machin
8000bph DGZ24-24-8 415V Juice Filling Line 7
Model RGF14-12-4 RGF18-18-6 RGF24-24-8 RGF32-32-10 RGF40-40-12 RGF50-50-15
Capacity 3000BPH 6000BPH 8000BPH 10000BPH 15000BPH 22000BPH
Washing No 14Heads 18Heads 24Heads 32Heads 40Heads 50Heads
Filling No 12Heads 18Heads 24Heads 32Heads 40Heads 50Heads
Capping No 4Heads 6Heads 8Heads 10Heads 12Heads 15Heads
Diameter of bottles :50-100mm
Height of bottle :100-300mm
Motor power 2.2KW 3.7KW 5.5KW 7.5KW 11KW 15KW








8000bph DGZ24-24-8 415V Juice Filling Line 8

8000bph DGZ24-24-8 415V Juice Filling Line 9

8000bph DGZ24-24-8 415V Juice Filling Line 10

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

8000bph DGZ24-24-8 415V Juice Filling Line 11

8000bph DGZ24-24-8 415V Juice Filling Line 12

<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
