Electric Steam Heating Juice Bottle Filling Machine 6000bph
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Model Number: | RGF18-18-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 15000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Certification: | CE, ISO 9001:2008 | Type: | Filling Machine |
|---|---|---|---|
| Automatic Grade: | Automatic | Material: | SUS 304/316 |
| Voltage: | 220V / 380V / 415V | Dimension(L*W*H): | By Model |
| Weight: | 2500KG | Machine Material: | 304 Stainless Steel |
| Filling Precision: | ≤±5mm | Packaging Material: | Wood |
| Filling Temperature: | 85C | Condition: | New |
| Key Selling Points: | Full Automatic | Wash: | Pure Water Wash |
| Blending System: | Steam Heating | Packaging: | Film Shrink Wrapping Machine Or Carton Packing Machine |
| Workshop Layout: | Free Design | Power: | 3.5kw |
| Driven Type: | Electric | Machinery Capacity: | 5000bph |
| High Light: | steam heating Juice Bottle Filling Machine,220V juice packaging machine,6000bph juice packaging machine |
||
Product Description
6000BPH Small Juice/Ejuice/Juicer/Juce Filling Machine Automatic Line
Product Description:
1. The filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
2. The machine is used in filling juices,beverage in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
3. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
4. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
5. It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
Product Features -
1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and fast when changing the bottle type.
2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.
3. Adopting advanced gravity filling principle, the filling is fast, stable, and accurate.
4. Adopt magnetic torque type capping head to realize capping and capping. The capping torque is infinitely adjustable, the sealing is tight and reliable, and the cap is not hurt.
5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.
3. Adopting advanced gravity filling principle, the filling is fast, stable, and accurate.
4. Adopt magnetic torque type capping head to realize capping and capping. The capping torque is infinitely adjustable, the sealing is tight and reliable, and the cap is not hurt.
5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.
6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.
This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Bottle line automatic water filling machine/water filling machine for sale
Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

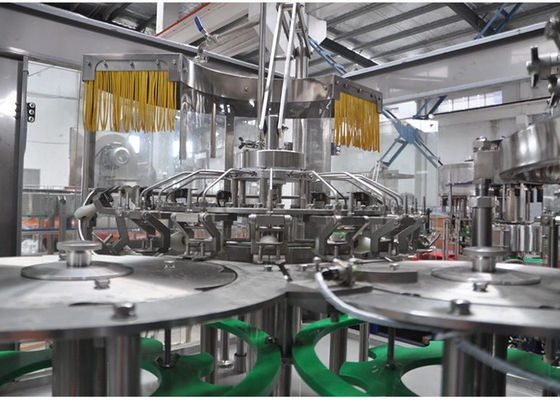

Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

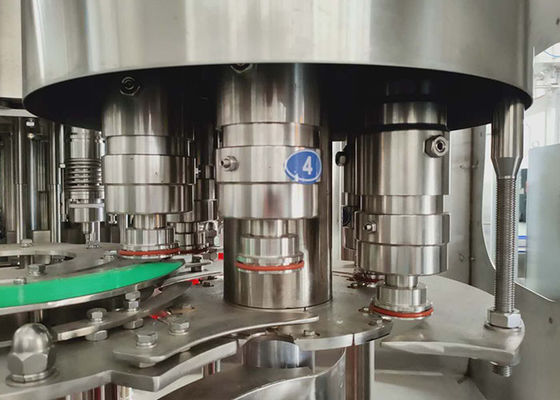

Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Air Conveyor.
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.
Flat Conveyor.
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
| Model | RGF14-12-4 | RGF18-18-6 | RGF24-24-8 | RGF32-32-10 | RGF40-40-12 | RGF50-50-15 |
| Capacity | 3000BPH | 6000BPH | 8000BPH | 10000BPH | 15000BPH | 22000BPH |
| Washing No | 14Heads | 18Heads | 24Heads | 32Heads | 40Heads | 50Heads |
| Filling No | 12Heads | 18Heads | 24Heads | 32Heads | 40Heads | 50Heads |
| Capping No | 4Heads | 6Heads | 8Heads | 10Heads | 12Heads | 15Heads |
| Diameter of bottles :50-100mm | ||||||
| Height of bottle :100-300mm | ||||||
| Motor power | 2.2KW | 3.7KW | 5.5KW | 7.5KW | 11KW | 15KW |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city. Our sales people you can get video of our reference running machineIn our nearby city has a Coca cola factory, they are buy our machine, we can take you to visit.
Q2: Do you have agent and after-service stations?
A2: So far we have agent in Indonsia, Malaysia, Vietnam, South Africa, Thailand etc.. welcome to join us!
Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
