220V Juice Bottle Filling Machine SUS 316 PET Bottle For Tea Filling
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Model Number: | RGF18-18-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 15000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Certification: | CE, ISO 9001:2008 | Type: | Filling Machine |
|---|---|---|---|
| Automatic Grade: | Automatic | Material: | SUS 304/316 |
| Voltage: | 220V / 380V / 415V | Dimension(L*W*H): | By Model |
| Weight: | 2500KG | Machine Material: | 304 Stainless Steel |
| Filling Precision: | ≤±5mm | Packaging Material: | Wood |
| Filling Temperature: | 85C | Condition: | New |
| Key Selling Points: | Full Automatic | Wash: | Pure Water Wash |
| Blending System: | Steam Heating | Packaging: | Film Shrink Wrapping Machine Or Carton Packing Machine |
| Workshop Layout: | Free Design | Power: | 3.5kw |
| Driven Type: | Electric | Machinery Capacity: | 5000bph |
| High Light: | 220V Juice Bottle Filling Machine,SUS 316 tea filling machine,6000bph tea filling machine |
||
Product Description
6000BPH PET Or Glass Bottle Juice Filling Machine De Production De Jus De Fruit
Product Description:
Best juice filling packaging machinery manufacturer 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks,functional water, various juice drinks, tea,flavored water,flavored milk on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
This juice glass bottle filling and capping machine adopts advanced SIEMENS Programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
Product Features -
1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and fast when changing the bottle type.
2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.
3. Adopting advanced gravity filling principle, the filling is fast, stable, and accurate.
4. Adopt magnetic torque type capping head to realize capping and capping. The capping torque is infinitely adjustable, the sealing is tight and reliable, and the cap is not hurt.
5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.
3. Adopting advanced gravity filling principle, the filling is fast, stable, and accurate.
4. Adopt magnetic torque type capping head to realize capping and capping. The capping torque is infinitely adjustable, the sealing is tight and reliable, and the cap is not hurt.
5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.
6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.

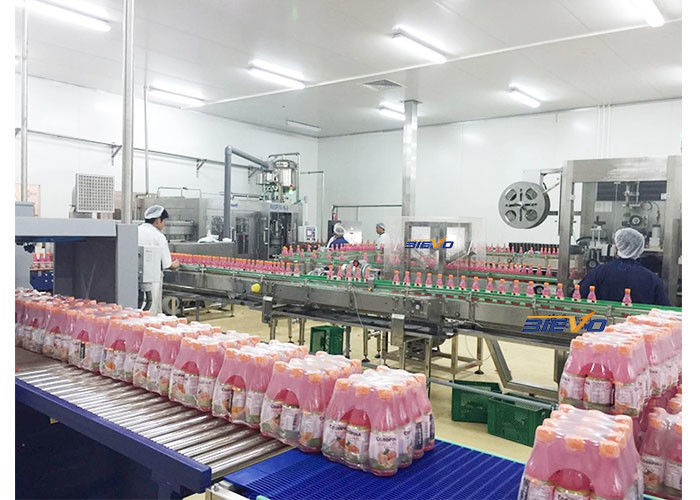

The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling.
Only need to change a few spare parts, that can suitable for filling pure water and mineral water.
Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Air Conveyor.
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.
- Air conveyor is fixed on the floor, with fan installed on the top.
- Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.
Flat Conveyor.
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
| Model | RGF14-12-4 | RGF18-18-6 | RGF24-24-8 | RGF32-32-10 | RGF40-40-12 | RGF50-50-15 |
| Capacity | 3000BPH | 6000BPH | 8000BPH | 10000BPH | 15000BPH | 22000BPH |
| Washing No | 14Heads | 18Heads | 24Heads | 32Heads | 40Heads | 50Heads |
| Filling No | 12Heads | 18Heads | 24Heads | 32Heads | 40Heads | 50Heads |
| Capping No | 4Heads | 6Heads | 8Heads | 10Heads | 12Heads | 15Heads |
| Diameter of bottles :50-100mm | ||||||
| Height of bottle :100-300mm | ||||||
| Motor power | 2.2KW | 3.7KW | 5.5KW | 7.5KW | 11KW | 15KW |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If
needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
