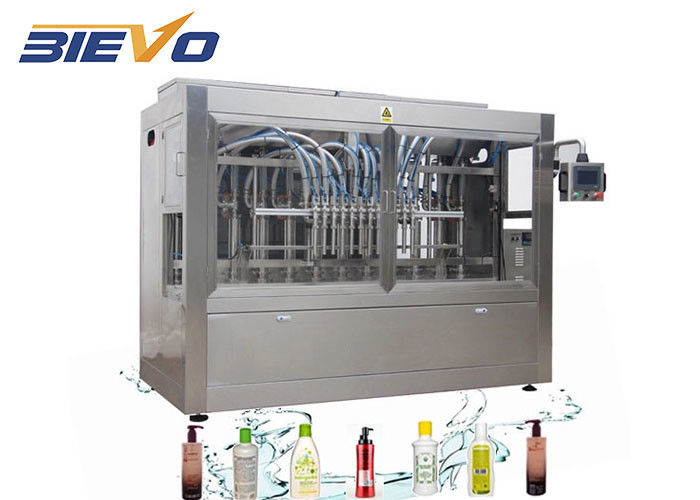

250ml 2 Nozzles 2500bph Viscous Liquid Filling Machine
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | RGZ-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 12000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 20-30working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Filling Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Material: | SUS 304 | Capacity: | 40-45 Bottles/Min |
| Name: | Manufacturer Various Liquid, Thick Liquid, Viscous Liquid Filling Capping And Labeling Machine | Weight: | 2500KG |
| Dimension(L*W*H): | L1680*W1680*H1930mm | Function: | Bottle Liquid Filling |
| Filling Accuracy: | ±1% | Core Components: | Pump, PLC, Gear |
| Filling Material: | Oil | Key Selling Points: | 2020 Hot Product |
| Application: | Toner,serum, Cream,lotion Filling And Capping | Control System: | Plc+Touch Screen |
| Filling Volume: | 15-250ml | Keywords: | Oil Filling Packing Machines |
| Driven Type: | Electric | Machinery Capacity: | 2500BPH/1L-5L |
| Air Pressure: | 0.5MPA | Usage: | Filling For Lotion,Cream, Shampoo,Liquid Soap,Toner,Conditioner |
| High Light: | 2500bph Viscous Liquid Filling Machine,250ml Viscous Liquid Filling Machine,2500bph olive oil bottling machine |
||
Product Description
Viscous Liquid Olive Oil Bottle Filling Machine / Olive Oil Bottling Machine Line Price
Introduction of Various Liquid, Thick Liquid, Viscous Liquid Filling Capping And Labeling Machine :
Liner type Olive Oil Filling Machine started since beginning, bottle unscrambler, bottle cleaning, product filling, bottle capping, labeling, till end of line wrapping, sealing, packaging. It's a fully automatic system only need a supervisor to watch complete line automatic working. Well saved client's labor cost and highly improved production efficiency. There are many models can fill various sizes of container from 50ml-5000ml, EFL models are able to handling various viscosity product from fluid to viscous product.From company established to today, EZIO's EFL piston filling system has been serving for condiments, mayonnaise, sauce, fruit paste, mas, edible oil, lubricant, cosmetics, cream, honey, e-liquid, essentials, hand washer, shampoo and more industry.
Suitable of Various Liquid, Thick Liquid, Viscous Liquid Filling Capping And Labeling Machine :
detergent, shampoo, dishwasher, liquid soap,oil, hand santizer.etc
Bottle Material : PE PP Bottle
Bottle Type : Round / Square / Unique
Cap : Screw cap/ Pump cap
Label : Sticker Label
Features of filling machine olive oil
1) High quality piston filling concept is applicable for low-high viscous product.
2) Servo motor control piston working to ensure the highly precised filling level.
3) All material is made of high quality stainless steel 304 or 316L, depending on client's product.
4) Fully automatic control system to save labor cost from long term prospect
5) Ezio's perfect installation service and after sale service making sure production fast setup and less downtime.
Features of olive oil bottle filling machine
6) High intelligence HMI interface, operator can adjust fill level, fill speed and other functions directly throuh touch screen of olive oil bottling machine.
7) Variable filling level to adapt to many size container, suffice cient's multiple needs.
8) Various filling applications, EFL olive oil bottle filling machine servces all kinds of industry including food, chemistry, cosmetic, medicine and more.
9) Can perfectly working with upstream and downstream equipments such as turnable, bottle unscrambler, depalletizer, bottle washing machine, inkjet printer, labeling machine, packaging machine, tunnel pasteurizer and more.
|
Model (EFL)
|
P200
|
P400
|
P600
|
P800
|
P1200
|
P1600
|
P2000
|
|
Filling Nozzles
|
2
|
4
|
6
|
8
|
12
|
16
|
20
|
|
Filling range
|
0.1-1L, 0.2-2L, 0.3-3L, 0.5-5L, 1-5L according to client's need
|
||||||
|
Capacity
(1000ML)
|
200BPH
|
500BPH
|
800BPH
|
1200BPH
|
2000BPH
|
3000BPH
|
4000BPH
|
|
Application
|
condiments, mayonnaise, chili sauce, hummus, fruit paste, mas, mustard, edible oil, lubricant, cosmetics, cream, honey, e-liquid, essentials, hand washer, shampoo and more.
|
||||||
|
Filling concept
|
Piston filling controlled by servo motor
|
||||||
|
Dimension
(MM)
|
1*0.8*2.1
|
1.5*1.2*2.1
|
1.7*1.2*2.1
|
1.9*1.3*2.1
|
2.2*1.4*2.1
|
2.5*1.4*2.1
|
2.8*1.4*2.1
|
|
PLC
|
Japan Mitsubishi
|
||||||
|
Bearing
|
Japan NSK
|
||||||
|
Sensors
|
Omoron, Autonics
|
||||||
|
Cylinder
|
Airtac, Festo(option), SMC(option)
|
||||||
|
Motor
|
Sanli, SEW(option)
|
||||||
| Item | Brands and material |
| sensor | transparent bottle sensor from Leuze Germany |
| PLC | SIEMENS |
| Touch screen | SIEMENS |
| Piston cylinder | 5MM thick SUS316L |
| Rotary valve | SUS316L |
| Rotary valve connection | quick coupler designed from Germany |
| Filling nozzles | SUS316L stainless steel anti-drip quick-coupler design |
| Cylinder | Airtac Taiwan |
| Connecting pipe | fast loading pipe from Italy |
| Sealing ring | food grade from Dupont USA(no need replaced for three years) |
| electrical parts | Schneider |
| Rack | SUS304 |
| bearings | Japan NSK, original imported |
| Level control in hopper | with |
Our service :
Customized service
We can design the machines according your requirements(material,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Besides, we can provide designs for the bottles and labels.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6.24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7.12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9.Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have separate quality control department, which make sure the raw materials are qualified,also ensure the machine running smoothly.
If you want to know more information about the product,Send inquiry to us, we will solve any of your problems and send you running video for reference.
