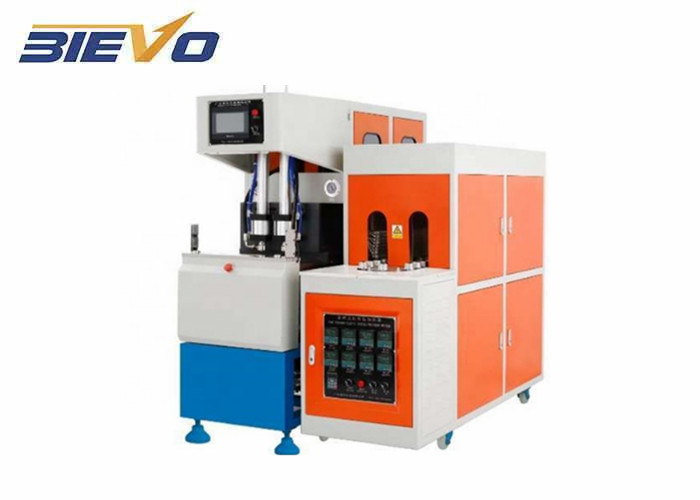

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding

  • High Light

    50ml Semi Automatic Blow Moulding Machine

    ,

    14KW Semi Automatic Blow Moulding Machine

    ,

    50ml automatic pet stretch blow molding machine

  • Plastic Processed
    50-2000ml PET Bottle
  • Automatic Grade
    Semi Automatic
  • Material
    SUS 304/SUS316
  • Voltage
    Customized
  • Dimension(L*W*H)
    1630*620*1590mm
  • Weight
    1000KG
  • Core Components
    PLC
  • Product Name
    PET Bottle Blowing Machine
  • Certification
    CE, ISO 9001
  • Condition
    New
  • Key Selling Points
    The Bottle Is Well Formed
  • Bottle Volume
    50ml-2000ml
  • Capacity
    800-1000pcs/min
  • Blow Moulding Type
    Metal
  • Application
    All Kinds Of PET Bottle Making
  • Power
    14kw
  • Driven Type
    Electric
  • Cavity
    2 Cavity
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    BV-2
  • Minimum Order Quantity
    1set
  • Price
    8900dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    30 working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding

Small bottle 50-2000ml PET plastic bottle semi automatic pet bottle manual bottle blowing machine

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding 0

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding 1

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding 2

Capacity 800-1000BPH
Max bottle volume 2L
Max neck diameter 80mm
Max bottle idameter 110mm
Max bottle height 365mm
Cavity 2 cavity
Mold thickness 110-230mm
Open stroke 180mm
Power voltage 380V/3 Phase/50Hz
Installation power 14KW
Actually power consumption 5KW
Recommend air compressor 1.2m3/30KG
Recommend water chiller 5HP



Features of main body:

Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .



Semi Automatic Bottle Blowing Machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
01.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
02.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
03.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
04.The machine can be operated in the step-by-step mode and the semi-auto mode.
05.The machine is small with low investment, easy and safe to operate .

Advantage

1. Semi automatic running with theoretical output 800-1000BPH for 50ml-2L bottle.
2. Advanced PLC control system with use-friendly touch screen.
3. Simple installation & start up operation.
4. Adopting double crank to adjust mould ,heavy locking mould, stable and fast.
5. Preforms are rotating in the heater to ensure being heated evenly.
6. Equipped with air cooling system ensure the bottle neck not deform.
7. Equipped with special designed air storage unit.
8. The machine surface is treated with baking varnish.

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding 3

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding 4

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding 5

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding 6

CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding 7

1.Can we make different design bottle in one machine?

Yes.It can. Just change the bottle mold. If the preform neck size is different, the preform holders also need to be changed.
2.What are the full sets machines and related product to make bottles?
Bottle blowing machine, bottle mold, pet preform, chiller, air compressor system
3.Can you supply the on-site installation,commissioning,training service for bottle blower?
Yes. We can. But this service cost will be extra cost based on which location.
4.How long is your bottle blowing machine warranty time?
1 year
5.Would you supply the spare parts for bottle making machine?
That is for sure. We will supply some commonly used spare parts. And be shipping with the machine together.
CE 14KW 50ml Semi Automatic Blow Moulding Machine PET Stretch Blow Molding 8

Service:

Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould. We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition. There is a litter charge, only for flight charge and accommodation.



Warranty:

We response for one year warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client. And send engineer to clients company, help install the machine, teaching their staff operates the machine and also, we do have a private school which helps our client sending their staff to china, help them training.



Up 15 million shots for the bottle mould.

3 million shots for the perform mould, cap mould

All moulds are designed by CAD/CAM.

We also can provide the drawing for the mould, help you to maintain the mould, and machine.



Delivery time: we have ready machines; regarding the moulds, we can finish within 15 days.



Payment: 30% T/T as advance payment and the balance should be paid before shipment after inspected by customer.
