2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine

2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine

  • High Light

    2000ml plastic bottle manufacturing machine


    380V plastic bottle manufacturing machine


    2000ml PET bottle manufacturing machine

  • Plastic Processed
    PET, PP, PC,Tritan
  • Automatic Grade
    Semi Automatic
  • Material
    SUS 304/316
  • Voltage
    220V / 380V / 415V
  • Dimension(L*W*H)
  • Weight
  • Machine Material
    304 Stainless Steel
  • Filling Precision
    New Product 2020
  • Core Components
  • Product Name
    PET Bottle Blowing Machine
  • Certification
    CE, ISO 9001:2008
  • Condition
  • Key Selling Points
    Competitive Price
  • Bottle Volume
  • Capacity
  • Blow Moulding Type
    Stretch Blow Moulding
  • Application
  • Power
  • Driven Type
  • Cavity
    2 Cavity
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    wood case
  • Delivery Time
    30 working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine

2 Cavities Semi Automatic PET Plastic Bottle Making Blowing Machine Price

Features of main body:

BL-880 Semi-auto Plastic Bottle PET Blowing Making Machine

Features of main body:

1). This machine is characterized by Low cost, high efficiency and its easy operation and maintenance as well as its stable performance with advanced PLC.

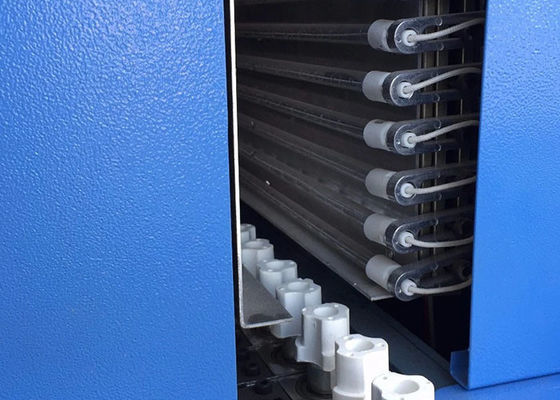

2). Preform self-rotation and infrared preheater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.

3). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the preheater, and keep the proper temperature and humidity invariable.

4). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

5). Introduce the FESTO air cylinder to avoid contamination and noise.

6). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

7). Strong clamping force with high pressure and double crank links to lock the mould.

8). Safe, reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.

9). Ideal cooling system makes the finished bottles without any flaws.

10). Low rejection rate: less than 0.2 percent

1. Machine Power: 8 KW

2. Theoretical Output: 800-1000 BPH

3. Suitable Bottle: Mineral Water Bottle, Beverage Bottle, Medicine Bottle.

4. Blower Size: 1450*590*1650 (MM)

5. Oven Size: 1680*610*1450 (MM)

6. The Weight Of Blower And Oven: 1000(KG)

Technical Partments:

BG-1000B Semi Automatic Manual 2 Cavities PET Bottle Blow Molding / Moulding Machine
Theoretical output
800-1000 pcs/h
Max. bottle volume
2 Liters
Max. neck diameter
250 mm
Finished bottle
Max. bottle diameter
Max. bottle height
28mm-95mm neck size with 2 cavity
Mold specifications
95mm-250mm neck size with 1 cavity
Mold thickness
Open stroke
420 mm
Electrical system
Power voltage
Installation power
Actual power consumption
5-8 kw
Air source
Recommend air compressor
1.2m³/min 30Kg
Cooling water
Recommend water chiller
Blower size
Oven size

2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine 0

2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine 1

2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine 2

2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine 3

2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine 4

2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine 5

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine 6

2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine 7

Q1: Where is your factory? How can I visit there?

A1: Our location is No.66, Baixiong Road, Sanxing Town, Zhangjiagang City, Jiangsu Province, China
Our factory is nearby from Shanghai City, if you fly from abroad, we can pick you up at the airport.
Q2: What's your payment stipulation?
A2: Our standard payment is 30% of the total amount for deposit, pay the balance before the shippment. For the others,
we can further discuss.
Q3: Do you have technicians for installation?
A3: We are responsible for the installaion in your country, you can also arange your staffs to our factory to learn how to operate the complete line.
2 Cavities 380V 2000ml Plastic Bottle Manufacturing Machine 8

<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
