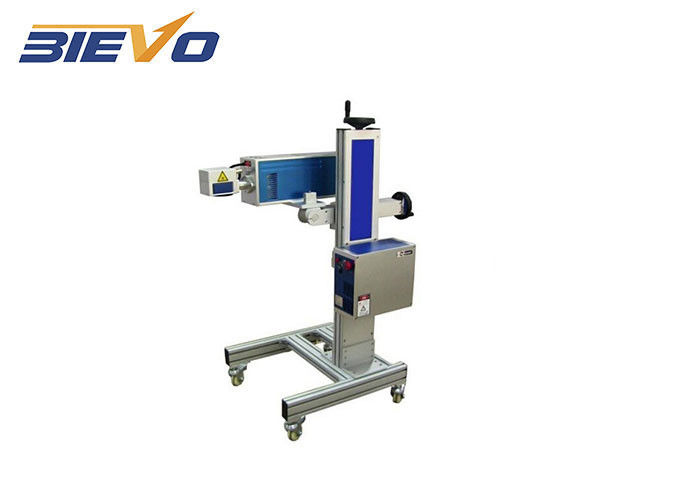

Automatic 20W Laser Coding Machine SGS 175x175mm CO2 Laser Coder
|Place of Origin:||China,Jiangsu|
Payment & Shipping Terms:
|Minimum Order Quantity:||1set|
|Packaging Details:||wood case|
|Delivery Time:||20-30working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||10 sets per month|
|Type:||Date Printer Machine||Automatic Grade:||Automatic|
|Machine Type:||Inkjet Date Printer/Laser Printer||Voltage:||By Order|
|Laser Source Brand:||RAYCUS||Key Selling Points:||2020 Hot Product|
|Condition:||New||Cooling Mode:||Air Cooling|
|Function:||70 KG||Laser Type:||Fiber Laser|
|Applicable Material:||Metal Plastic||Marking Speed:||7000mm/s-12000mm/s|
|Driven Type:||Electric||Laser Wavelength:||1064nm|
|Marking Area:||175mm*175mm||Certification:||CE, ISO, GS, Sgs, UL|
20W Laser Coding Machine,
175mm CO2 laser coder,
20W CO2 laser coder
CO2 Laser Date Coder Marking Machine For Coding Date On Bottle 20w 30w Fiber Laser Printer
High speed online flying CO2 laser marking machine for coding date on bottle 20w 30w fiber laser printer is suitable for cables, PE pipes, the it is especially suitable for automatic production line of date code or bar code. According to customer's different needs matching fiber, CO2, UV and other models and automatic assembly line work bench to meet customer requirements of flight standards system, to achieve assembly line operations to improve production efficiency.
Compared with ink jet printer, laser marking machine has functions of no consumption, no pollution, no noise, energy saving and environmental protection.
BEC Laser Printers: BEC Laser coding solution is use high energy density aggregation in carved the underlying surface, within a very short period of time make the surface of biomass gasification by controlling the effective displacement of the laser beam, precisely burning and carving out exquisite patterns or characters. Reduce production costs, no consumption, high efficiency, permanent mark to ensure that the product can be traced back. Enhance the additional value and brand effect. Performance is more stable, work continuously for 24 hours and the maintenance time of the laser is more than 100,000 hours. Environmentally friendly non-toxic and no noise pollution.
Ink Jet Printers: The use for marking on the food and medical by inkjet printing with some problems such as large number of special ink consumption, high cost; ink jet printer often appear ink clogging nozzle, long time professional maintenance staff maintenance; single style of the products. The mark is easy to be erased, it has effect to product credibility.

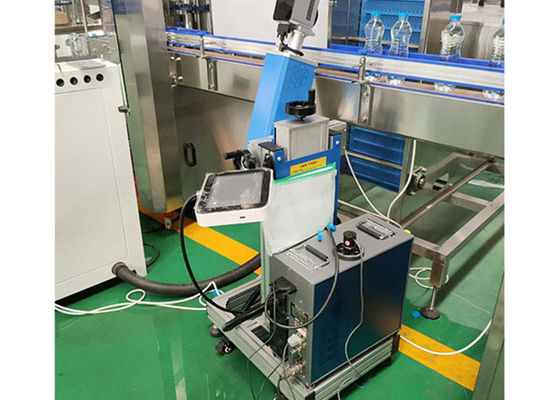

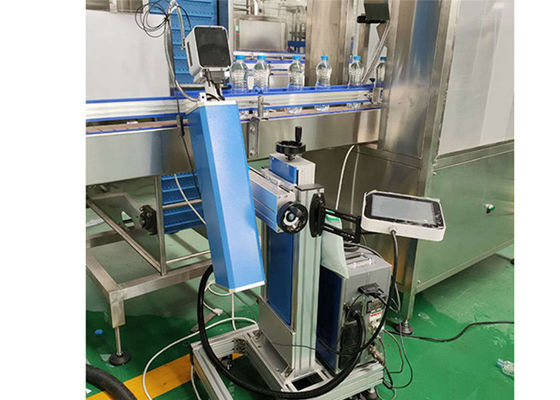

High speed online flying CO2 laser marking machine for coding date on cap bottle 20w 30w fiber laser printer combines laser technologies with production line, it can mark on fast moving items for conveyor/pipe/cable and conduct 24 hours continuous working.
It is mainly used to mark characters, figures, batch numbers, production dates, validity, LOGO, real time clock information and anti-counterfeiting, especially the pharmaceutical industries GMP and food industries HACCP.
Standard Configuration Including:
|1. China best laser source Raycus.|
|2. Enclosed type cabinet.|
|3. Beijing JCZ EZCAD control card.|
|4. High speed galvo scanning head.|
|5. Singapore wavelength 110*110mm filed lens.(150mm.175mm,200mm...optional)|
|6. Double red light for high precision position.|
|7. Taiwan meanwell power supply.|
|8. Foot pedal.|
|9. User’s manual and videos.|
|10. ISO,CE certification.|
|Product Name||High speed online flying CO2 laser marking machine for coding date on bottle 20w 30w fiber laser printer|
|Laser Power||20W, 30W, 50W optional|
|Marking Area||70mm*70mm / 100mm*100mm optional|
|Laser Source Brand||Raycus / JPT / IPG optional|
|Marking Depth||0.1~ 1.2mm ( Depending on the material. )|
|Minimum Line Width||0.01mm|
|Laser Lifetime||100,000 hours|
|Power Adjusting Range||10%~100% continuously to be adjusted|
|Beam Quality||M2 <1.5|
|Product Line Speed||The encoder measures speed, it can be adjusted according to the line speed.|
EZCAD 2.12. ( Touch screen displayer. )
* One mode specialized for online flying marking; * Another mode for non-flying marking.
|Marking Contents||Graphics, text, bar code, QR code, serial number, batch number, logo, etc.|
|Graphic Format Supported||bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.|
|Cooling Mode||Air cooling|
|Enviornment Temperature||15℃~35℃ ( No condensation )|
|Electricity Demand||Electricity Demand|
|Recommend Delivery Way||By sea, by air or door to door. ( FedEx, DHL, TNT, etc. )|
Q1: How can I get the best machine for me?
A1: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your needs or not. Then we can give you the best machine depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software. Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A3: The machine has two years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
A4: Yes, we can supply many models, such as portable fiber laser marking machine, table fiber laser marking machine, enclosed fiber laser marking machine, CO2 laser marking machine, UV laser marking machine and so on. Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
Q5: How long is the delivery time?
A5: In order to ensure the quality of products, so that customers receive high-quality laser machines. Our company has strict process of materials incoming inspection, puting in storage, materials picking, machine production, quality inspection, warehouse-out inspection. For standard machines, it would be 10-12 working days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 30 working days.
Q6: How's the payment?
A6: We accept Telegraphic Transfer(T/T). 30% in advance, pay the balance before delivery. You can make the payment on Alibaba Trade Assu
* 24 h on-line service;
* We have ourself factory;
* Free sample test & Free parts;
* Good package & Quick delivery time;
* Two years warranty and with lifetime service;
* Engineers available to service machinery overseas;
* Training how to install and use the machine and software.
