1680x1680x1930mm CE 1000ml Viscous Liquid Filling Machine

1680x1680x1930mm CE 1000ml Viscous Liquid Filling Machine

  • High Light

    1930mm Viscous Liquid Filling Machine


    1000ml Viscous Liquid Filling Machine


    1000ml liquid soap filling machine

  • Type
    Filling Machine
  • Automatic Grade
  • Material
    SUS 304
  • Capacity
    40-45 Bottles/Min
  • Filling Nozzles
  • Weight
  • Dimension(L*W*H)
  • Function
    Bottle Liquid Filling
  • Filling Accuracy
  • Core Components
    Pump, PLC, Gear
  • Filling Material
  • Key Selling Points
    2020 Hot Product
  • Application
    Toner,serum, Cream,lotion Filling And Capping
  • Control System
    Plc+Touch Screen
  • Filling Volume
  • Keywords
    Oil Filling Packing Machines
  • Driven Type
  • Machinery Capacity
  • Air Pressure
  • Usage
    Filling For Lotion,Cream, Shampoo,Liquid Soap,Toner,Conditioner
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    wood case
  • Delivery Time
    20-30working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

1680x1680x1930mm CE 1000ml Viscous Liquid Filling Machine

Skincare Liquid Filling Machine, Hemp Oil Dropper Bottle Viscous Liquid Filling Capping And Labeling Machine

1680x1680x1930mm CE 1000ml Viscous Liquid Filling Machine 0

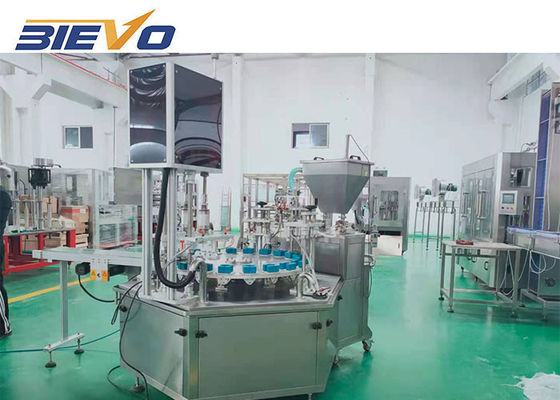

This machine is including air cleaning- filling- inner cap inserting- capping system. It is suitable for lotion, shampoo, cream and so on.
1. Automatic air cleaning- filling- inner cap inserting- capping, each part has two heads.
2. Air cleaning system: cleaning dust and impurities.
3. Filling system: Servo motor control, rotary vale filling. High filling accuracy, suitable filling high foam liquid, can self-suck when filling water type liquid.
4. The hopper is with liquid level detection system. Simple operation and adjust
5. Adjustable molds: suitable for different sizes of bottles
6. Screw filling system: suitable for any of the screw caps. The cap contacting material is soft silicone, this material won’t scrap cap.
7. Anyone can skillfully operate without training
8. Movable with wheel.

Detergents & Chemical Liquid.
Suitable :
detergent, shampoo, dishwasher, liquid soap,oil, hand santizer.etc
Bottle Material : PE PP Bottle
Bottle Type : Round / Square / Unique
Cap : Screw cap/ Pump cap
Label : Sticker Label

Technical Parameter:
1. Capacity: 40-45 bottles per minute
2. Material: Stainless steel304&316
3. Usage: filling for lotion,cream, shampoo,liquid soap,toner,conditioner, etc
4. Filling volume: 15-250ml
5. Function: automatic air cleaning, filling, collaring and screw capping
6. Filling accuracy: ±1%
7. Filling nozzle: 2 pcs
8. Air Pressure: 0.5MPA

1.The parts which contact liquid are SUS316L stainless steel and others are SUS304 stainless steel
2. It has intuitive and convenient operation, measuring accurate, positioning precision
3. Fully in accordance with the GMP standard production and passed CE certification
4. Siemens Touch screen/PLC+Servo motor driven control(optional)
5. No bottle no filling/plugging/capping
6. HS Code:84223090.90
Famous brand electrical part :
Machine frame SUS304 Stainless steel
Contact material parts SUS316L Stainless steel
Main Motor ABB Switzerland
Inverter Mitsubishi Japan
Air Switch Schneider France
Contactor Schneider France
Relay Omron Japan
OFA Autonics Korea
Bearing IGUS Germany
CAM indexer Shangdong China
Turntable Plastic POM Japan
Cylinder AIRTAC Taiwan
Touch screen Siemens Germany
PLC Siemens Germany
Servo motor driven Mitsubishi Japan

1680x1680x1930mm CE 1000ml Viscous Liquid Filling Machine 1


1680x1680x1930mm CE 1000ml Viscous Liquid Filling Machine 2

1680x1680x1930mm CE 1000ml Viscous Liquid Filling Machine 3

1680x1680x1930mm CE 1000ml Viscous Liquid Filling Machine 4

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

1680x1680x1930mm CE 1000ml Viscous Liquid Filling Machine 5

1680x1680x1930mm CE 1000ml Viscous Liquid Filling Machine 6

Q1: Where is your factory? How can I visit there?

A1: Our location is No.66, Baixiong Road, Sanxing Town, Zhangjiagang City, Jiangsu Province, China
Our factory is nearby from Shanghai City, if you fly from abroad, we can pick you up at the airport.
Q2: What's your payment stipulation?
A2: Our standard payment is 30% of the total amount for deposit, pay the balance before the shippment. For the others,
we can further discuss.
Q3: Do you have technicians for installation?
A3: We are responsible for the installaion in your country, you can also arange your staffs to our factory to learn how to operate the complete line.
Q4: How about the spare parts?
A4: We will send one year enough easy broken spare parts together with the machines when shipping, In the course of the warranty time, we can delivery you including the cost and fees.
