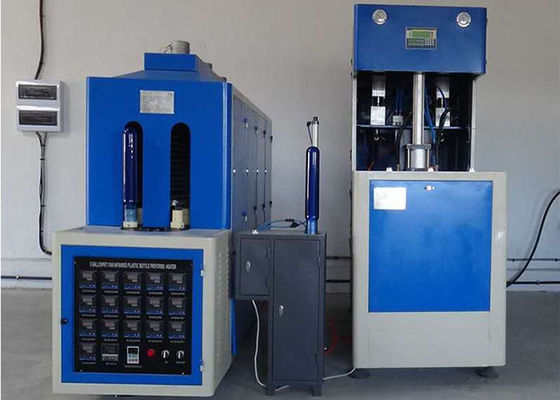

Semi automatic plastic pet bottle making machine price blowing machine blow molding machines
|Max bottle volume||2L|
|Max neck diameter||80mm|
|Max bottle idameter||110mm|
|Max bottle height||365mm|
|Power voltage||380V/3 Phase/50Hz|
|Actually power consumption||5KW|
|Recommend air compressor||1.2m3/30KG|
|Recommend water chiller||5HP|
Features of main body:
This machine is suitable for mineral water bottle,carbonated beverage bottle,daily chemical bottle,medicine bottle etc less than 2000ml.
Use the advanced touch-screen computer control,easy operation,stable quality and high safety.
The production process is finished by the automatic micro-computerized control,only need one operator.
Bothfit PLC :
It is a very popular brand all over the world . It has two big funcations: manual and automatic. Turn it to be Manual . It can help to install mold . Turn it to be automatic . It can produce bottles be stable.
Festo operating valves:
Festo valves made by Germany . The three Festo valves control three functions: Mold-closing , Left-stretching, Right-stretching. The three valves can work for a long time .
32 pieces heating lamps can heat the preform be longer an longer . And teh Heating lamps quality is very good . Let it can work for a long time .
1. Semi automatic running with theoretical output 800-1000BPH for 50ml-2L bottle.
2. Advanced PLC control system with use-friendly touch screen.
3. Simple installation & start up operation.
4. Adopting double crank to adjust mould ,heavy locking mould, stable and fast.
5. Preforms are rotating in the heater to ensure being heated evenly.
6. Equipped with air cooling system ensure the bottle neck not deform.
7. Equipped with special designed air storage unit.
8. The machine surface is treated with baking varnish.
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
30% by T/T as down payment, 70% by T/T paid before delivery. (Other payment please notice in advance.)
One year warranty and come with at least one year recommended spare parts.
Delivery Time: 15 days after get down payment &confirm bottle design.
1) The special packaging wooden case is according to the immunity standard in China,it suits for long-distance transport, damp proof, rustproof, land way and seaway
2) Transportation ways: Sea transportation
1) Installment USD80/day. Person as allowance
2) Free training for buyers worker within the installation period.
Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould. We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition. There is a litter charge, only for flight charge and accommodation.
We response for one year warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client. And send engineer to client’s company, help install the machine, teaching their staff operates the machine and also, we do have a private school which helps our client sending their staff to china, help them training.

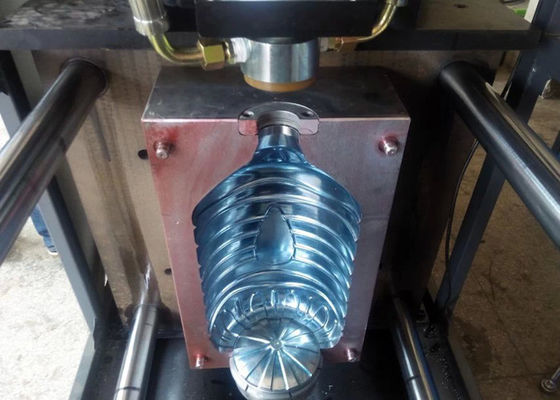

Up 15 million shots for the bottle mould.
3 million shots for the perform mould, cap mould
All moulds are designed by CAD/CAM.
We also can provide the drawing for the mould, help you to maintain the mould, and machine.
Delivery time: we have ready machines; regarding the moulds, we can finish within 15 days.
Payment: 30% T/T as advance payment and the balance should be paid before shipment after inspected by customer.
