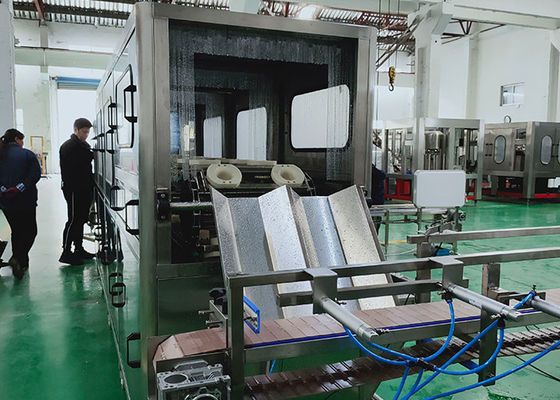

QGF-300 415V 300bph 20 Liter Jar Filling Machine
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Model Number: | QGF-300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 9000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 10-20working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Certification: | CE, ISO 9001:2008 | Type: | Filling Machine |
|---|---|---|---|
| Automatic Grade: | Automatic | Material: | SUS 304 |
| Voltage: | 220V / 380V / 415V | Dimension(L*W*H): | 3250*1900*2400mm |
| Weight: | 2000KG | Filling Material: | Mineral Water /pure Water |
| Filling Valve Head: | Multi-Head | Bottle Shape: | 19liter /20liter Barrel /5 Gallon Bottle |
| Core Components: | Pump, PLC | Filling Accuracy: | 99.9% |
| Condition: | New | Key Selling Points: | Full Automatic |
| Bottle Size: | 3gallon -5gallon (Customized) | Function: | Bottle Water Filling Machine |
| Control System: | Plc+touch Screen | Workshop Layout: | Free Design |
| Application: | Beverage | Packaging Material: | Wood |
| Driven Type: | Electric | Machinery Capacity: | 300bph |
| High Light: | 300bph 20 Liter Jar Filling Machine,QGF-300 20 Liter Jar Filling Machine,300bph mineral water packaging machine |
||
Product Description
19 Litre 20 Liter 20L Bucket Bottled 5 Gallon Water Filling Line / 5gallon Pail Drum Jar 5 Gallon Water Filling Machine
The machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.
1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows Automatic 5 gallon bottle washing machine
Advantages:
The machine integrates rinser, filler and capper together.
The machine is of stainless steel, resisting corrosion and easy to clean.
The main electrical components and gas circuit elements are all of international brand.
Water pump is Nanfang, Hangzhou (Grundfos is available)
Nozzle is of America’s Spraying System Company’s technology.
Details
Cap Decapper
This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth, and increases cap pulling success greatly. 304 stainless machine frame and machine body.
Outer Brusher
Function: clean the external of 5 gallon bottles with brush and water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing
Washing-filling-capping 3-in-1 Monoblock
1. 3-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
Function: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate
| Model | QGF-120 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 8 |
| Filling capacity | 3-5gallon | 3-5gallon | 3-5gallon | 3-5gallon | 3-5gallon | 3-5gallon |
| Barrel size | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 | φ270×490 |
| Machine capacity | 120bph | 300bph | 450bph | 600bph | 900bph | 1200bph |
| Gas pressure (Mpa) | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Q1: Where is your factory? How can I visit there?
<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
