Product Details:

Place of Origin: China,Jiangsu
Brand Name: BIEVO
Certification: CE
Model Number: CGZ32-32-10

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 45000dollers/set
Packaging Details: wood case
Delivery Time: 30working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information
Model: CGZ32-32-10 Machinery Capacity: 10000BPH
Product Name: Pure Water Making Machine Material: Stainless Steel
Voltage: 380V/220V Dimension(L*W*H): 2100*1800*2250 Mm
Weight: 3500KG Filling Material: Drinking Water
Bottle Shape: Customized Key Selling Points: High Precision
Bottle Size: 200ml-2000ml Usage: Liquid Filling
Control System: PLC+Touch Screen Filling Type: Gravity Filling
Application: Bottle Water Plant Packaging Material: PE Film/carton Packing
Driven Type: Electric Filling Accuracy: 0.1%
Product: Bottle Drinking Water
High Light:

2L Water Bottle Filling Machine

,

10000bph Water Bottle Filling Machine

,

0.2L Water Bottles Filling Machine

Product Description

0.2-2L 24 Months Guarantee 10000bph Water Bottles Filling Machine

10000BPH stainless steel mineral water production line/plastic bottle water filling machine/pure water making machine



Inroduction of  Water Production Line:

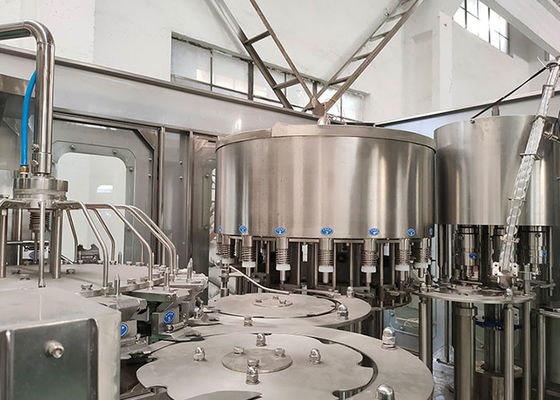

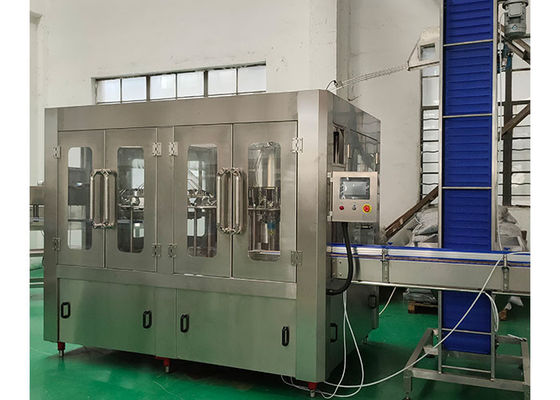

This Automatic 3-in-1 Wash-filling-capping Water Filling Machine is used to produce bottled mineral water, purified water, flavored water, alcoholic beverage and other non-gas Liquid. This Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from 250ml-2500ml meanwhile few changeover is needed. This series of filling machine capacity varies from 1000BPH to 32000BPH.

Our water filling machine is designed for the bottle water factory. It features low water and low electricity consumption, small space occupation as well as easy operation. At the same time It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine. it can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product.



Main Features Of Small Bottle Drinking Water Filling Machine
*Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
* Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
* The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
*High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
*Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
*Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 0on.

Model CGZ8-8-3 CGZ12-12-6 CGZ18-18-6 CGZ24-24-8 CGF32-32-8 CGF40-40-12
Capacity 3000BPH 4000BPH 8000BPH 12000BPH 15000BPH 20000BPH
Applicable bottle type Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml
Applicable bottle shape Plastic Screw cap
Gas pressure 0.6 0.6 0.6 0.6 0.6 0.6
Motor power 2.3 3.1 3.5 3.8 3.8 4.2
Pressure 2-3kg/cm2
Machine size 2.2*1.8*2.3 m 2.45*1.65*2.1m 2.6*1.8*2.1m 3*2.2*2.4m 4*2.2*2.4m 4.1*2.782.6m
Weight 1800kg 2000kg 2500kg 4200kg 4800kg 5000kg





























0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 1

Model CGZ32-32-10
Volume of PET bottle 0.25L-2L
Diameter of bottle 50-100mm
Height of bottle 170-320mm
Filling pressure Less than 0.15Mpa
Filling precision Less than 2%-3%
Pressure of washing 0.2Mpa
Washing water consumption 600kg/h
Gas consumption 0.4m3/min
Power of main motor 5.6KW
Dimension 2200*1800*2250mm

Machine's Details:

0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 2

Washing Part Of Small Bottle Mineral Water Filling Machine
0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 3
Function : washing bottle inside and outside dust .
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

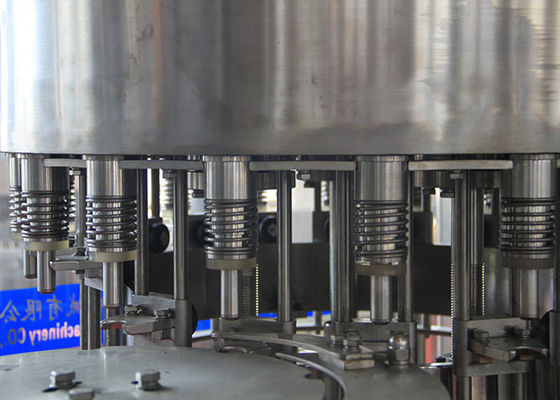

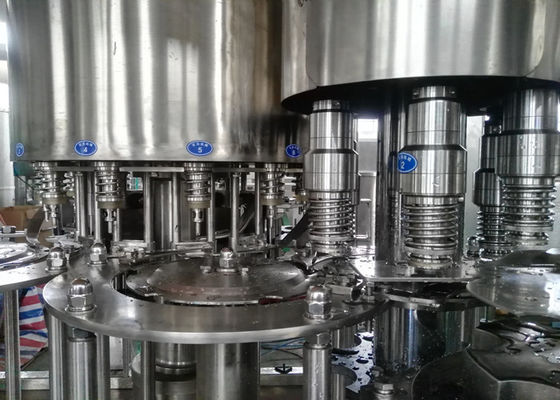

Filling Part Of Small Bottle Mineral Water Filling Machine
0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 4
Fucntion : filling wine into bottle .
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Part
0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 5
Function : put caps on bottle .
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine.

Electrical Appliances Brand :

Electrical Appliances Brand
　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 6 　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 7 　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 8 　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 9
CNP Water Pump Siemens/ABB Main Motor Siemens/Mitsubishi PLC Siemens Inveter
　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 10 　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 11 　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 12 　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 13
Siemens Touch Screen Schneider Circuit Breaker Schneider Contactor Omron Relay
　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 14 　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 15 　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 16 　0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 17
Omron Sensor SMC Solenoid Valve SMC Cylinder SMC Air Filter



0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 18

0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 19

0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 20

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .



Advantage

(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide

0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 21

0.2 - 2L Water Bottles Filling Machine 10000bph 24 Months Guarantee 22

Q1: Proposal design and make budget
We are capable of providing specialized proposal design and make a general budget for you.
Q2: Equipment production&commissioning
We will arrange the production for you as soon as the order confirmed, and make sure the quality of products, We have client cases in different countries , we can provide theirproduction working video for you .
Q3: Factory layout design
Machines and factory layout design is also available after the proposal confirmed.
Q4: Bottle shape design
We can also help to do the bottle shape design for you according to your needs.
Q5: Label Design
We can also help to design the label for you, and you can share with us your idea too.
Q6: Raw Material supply
We are capable of provide one-stop service, so the raw material supply is also available.
