CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity

CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity

Products - Water Bottles Filling Machine
  • High Light

    CE Standard Water Bottles Filling Machine

    ,

    20000bph Mineral Water Filling Line

    ,

    18000bph Mineral Water Filling Line

  • Type
    Autoatic Small Bottle Mineral Water Filling Machine
  • Machinery Capacity
    20000bph
  • Automatic Grade
    Automatic
  • Material
    SUS 304/316
  • Voltage
    By Order
  • Dimension(L*W*H)
    4100*2780*2600 Mm
  • Weight
    5000KG
  • Filling Material
    Mineral Water /Pure Water /Drinking Water
  • Bottle Shape
    Round Or Square
  • Filling Accuracy
    99.9%
  • Key Selling Points
    Hot Sale
  • Bottle Size
    200-2500ml (Customized)
  • Function
    Bottle Washing Filling Capping
  • Control System
    PLC+Touch Screen
  • Workshop Layout
    Free Design
  • Application
    Pure Water /Mineral Water/Drinking Water
  • Packaging Material
    PE Firm And Wooden Case
  • Driven Type
    Electric
  • Color
    Silver
  • Product
    Bottle Drinking Water
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    CGZ 40-40-12
  • Minimum Order Quantity
    1set
  • Price
    12000dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    20-30working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity

  • CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity
  • CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity
  • CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity
  • CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity
  • CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity
Get Price Contact Now

18000-20000bph Big Capacity CE Standrad Water Filling Machine Production Line



20000bph Full Automatic PET Plastic Small Bottle Mineral Water Filling Machine Production Line

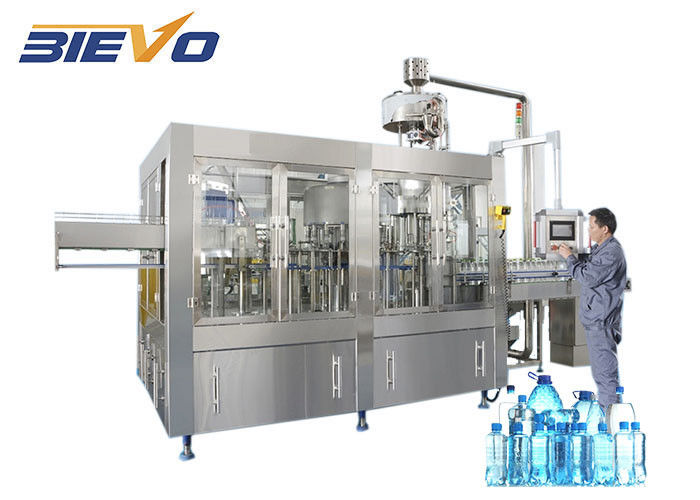

Inroduction of  Water Production Line:

The water filling machine is consisted of ringsing-filling-caping all together. CGF water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the water filling machine and packaging machinery production line.

CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 0

Model CGZ8-8-3 CGZ12-12-6 CGZ18-18-6 CGZ24-24-8 CGF32-32-8 CGF40-40-12
Capacity 3000BPH 4000BPH 8000BPH 12000BPH 15000BPH 20000BPH
Applicable bottle type Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml
Applicable bottle shape Plastic Screw cap
Gas pressure 0.6 0.6 0.6 0.6 0.6 0.6
Motor power 2.3 3.1 3.5 3.8 3.8 4.2
Pressure 2-3kg/cm2
Machine size 2.2*1.8*2.3 m 2.45*1.65*2.1m 2.6*1.8*2.1m 3*2.2*2.4m 4*2.2*2.4m 4.1*2.782.6m
Weight 1800kg 2000kg 2500kg 4200kg 4800kg 5000kg





























CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 1

Machine's Details:

CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 2

CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 3

Washing Part Of Small Bottle Mineral Water Filling Machine
Function : washing bottle inside and outside dust .
<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump
Filling Part Of Small Bottle Mineral Water Filling Machine
Fucntion : filling wine into bottle .
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping Part
Function : put caps on bottle .
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping <2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle

Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine.

Electrical Appliances Brand :

Electrical Appliances Brand
　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 4 　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 5 　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 6 　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 7
CNP Water Pump Siemens Main Motor Siemens PLC Siemens Inveter
　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 8 　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 9 　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 10 　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 11
Siemens Touch Screen Schneider Circuit Breaker Schneider Contactor Omron Relay
　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 12 　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 13 　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 14 　CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 15
Omron Sensor SMC Solenoid Valve SMC Cylinder SMC Air Filter



CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 16

CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 17

CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 18

CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 19

CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 20

Q1: Where is your factory? How can I visit there?

A1: Our location is No.66, Baixiong Road, Sanxing Town, Zhangjiagang City, Jiangsu Province, China
Our factory is nearby from Shanghai City, if you fly from abroad, we can pick you up at the airport.

Q2: What's your payment stipulation?
A2: Our standard payment is 30% of the total amount for deposit, pay the balance before the shippment. For the others,
we can further discuss.

Q3: Do you have technicians for installation?
A3: We are responsible for the installaion in your country, you can also arange your staffs to our factory to learn how to operate the complete line.

Q4: How about the spare parts?
A4: We will send one year enough easy broken spare parts together with the machines when shipping, In the course of the warranty time, we can delivery you including the cost and fees.
CE Standard Mineral Water Filling Line 18000 - 20000bph Big Capacity 21

<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
