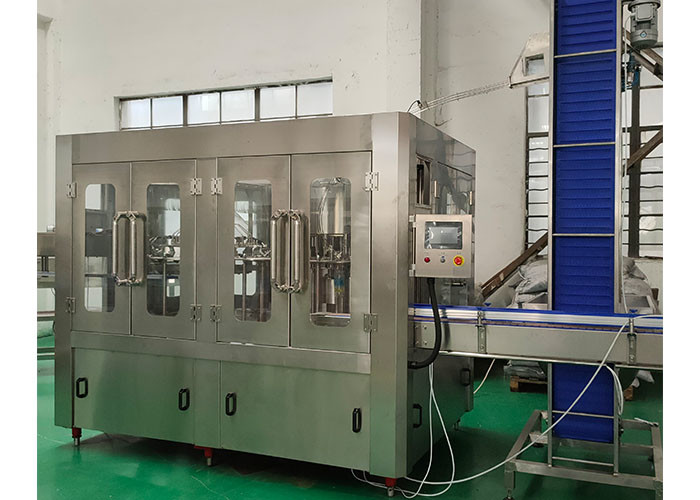

500 / 750 / 1500ml Bottle Washing Filling Capping Machine Big Capacity
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | CGZ32-32-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 45000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Model: | CGZ32-32-10 | Machinery Capacity: | 10000BPH |
|---|---|---|---|
| Product Name: | Pure Water Making Machine | Material: | Stainless Steel |
| Voltage: | 380V/220V | Dimension(L*W*H): | 2100*1800*2250 Mm |
| Weight: | 3500KG | Filling Material: | Drinking Water |
| Bottle Shape: | Customized | Key Selling Points: | High Precision |
| Bottle Size: | 200ml-2000ml | Usage: | Liquid Filling |
| Control System: | PLC+Touch Screen | Filling Type: | Gravity Filling |
| Application: | Bottle Water Plant | Packaging Material: | PE Film/carton Packing |
| Driven Type: | Electric | Filling Accuracy: | 0.1% |
| Product: | Bottle Drinking Water | ||
| High Light: | 750ml Bottle Washing Filling Capping Machine,1500ml Bottle Washing Filling Capping Machine,500ml Bottle Washing Filling Capping Machine |
||
Product Description
Big Capacity Still Water 500/750/1500ml Bottles Washing Filling Capping Machine
10000BPH stainless steel mineral water production line/plastic bottle water filling machine/pure water making machine
Inroduction of Water Production Line:
This Automatic 3-in-1 Wash-filling-capping Water Filling Machine is used to produce bottled mineral water, purified water, flavored water, alcoholic beverage and other non-gas Liquid. This Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from 250ml-2500ml meanwhile few changeover is needed. This series of filling machine capacity varies from 1000BPH to 32000BPH.
Our water filling machine is designed for the bottle water factory. It features low water and low electricity consumption, small space occupation as well as easy operation. At the same time It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine. it can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product.
Filling Machine Benefits
1) The machine is mainly used for PET bottled non-carbonated beverage production line,such as spring water and wine drinks
2) Washing,filling and capping are available in one machine
3) The contact time between raw materials and the outside world has been reduced to improve the health conditions, production capacity and economic benefits
4) The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type
5 )Using the advanced PLC(Programmable Logic Controller) technology
6) The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON
7) Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
8) Optimum uptime: 30 % reduction in changeover and maintenance downtime
9) Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
10) Hygiene improvement through volume control and contactless filling
11) Automatic dump bottles: Safer, easier cleaning procedures
12) Automatic bottle changeover improves uptime
on.
| Model | CGZ8-8-3 | CGZ12-12-6 | CGZ18-18-6 | CGZ24-24-8 | CGF32-32-8 | CGF40-40-12 |
|---|---|---|---|---|---|---|
| Capacity | 3000BPH | 4000BPH | 8000BPH | 12000BPH | 15000BPH | 20000BPH |
| Applicable bottle type | Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml | |||||
| Applicable bottle shape | Plastic Screw cap | |||||
| Gas pressure | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Motor power | 2.3 | 3.1 | 3.5 | 3.8 | 3.8 | 4.2 |
| Pressure | 2-3kg/cm2 | |||||
| Machine size | 2.2*1.8*2.3 m | 2.45*1.65*2.1m | 2.6*1.8*2.1m | 3*2.2*2.4m | 4*2.2*2.4m | 4.1*2.782.6m |
| Weight | 1800kg | 2000kg | 2500kg | 4200kg | 4800kg | 5000kg |
| Model | CGZ32-32-10 |
| Volume of PET bottle | 0.25L-2L |
| Diameter of bottle | 50-100mm |
| Height of bottle | 170-320mm |
| Filling pressure | Less than 0.15Mpa |
| Filling precision | Less than 2%-3% |
| Pressure of washing | 0.2Mpa |
| Washing water consumption | 600kg/h |
| Gas consumption | 0.4m3/min |
| Power of main motor | 5.6KW |
| Dimension | 2200*1800*2250mm |
Machine's Details:
Washing Part Of Small Bottle Mineral Water Filling Machine
Function : washing bottle inside and outside dust .
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Filling Part Of Small Bottle Mineral Water Filling Machine
Fucntion : filling wine into bottle .
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Part
Function : put caps on bottle .
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine.
Electrical Appliances Brand :
| Electrical Appliances Brand | |||
| |
|
|
|
| CNP Water Pump | Siemens/ABB Main Motor | Siemens/Mitsubishi PLC | Siemens Inveter |
| |
|
|
|
| Siemens Touch Screen | Schneider Circuit Breaker | Schneider Contactor | Omron Relay |
| |
|
|
|
| Omron Sensor | SMC Solenoid Valve | SMC Cylinder | SMC Air Filter |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Advantage
(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide
Q1: Proposal design and make budget
We are capable of providing specialized proposal design and make a general budget for you.
Q2: Equipment production&commissioning
We will arrange the production for you as soon as the order confirmed, and make sure the quality of products, We have client cases in different countries , we can provide theirproduction working video for you .
Q3: Factory layout design
Machines and factory layout design is also available after the proposal confirmed.
Q4: Bottle shape design
We can also help to do the bottle shape design for you according to your needs.
Q5: Label Design
We can also help to design the label for you, and you can share with us your idea too.
Q6: Raw Material supply
We are capable of provide one-stop service, so the raw material supply is also available.
