Monoblock Automatic Water Bottles Filling Machine 5L / 10L

Monoblock Automatic Water Bottles Filling Machine 5L / 10L

Product Details:

Place of Origin: China,Jiangsu
Brand Name: BIEVO
Certification: CE
Model Number: CGZ 18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 35800dollers/set
Packaging Details: wood case
Delivery Time: 20-30working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Model: CGZ18-18-6 Machinery Capacity: 4000bph
Product Name: Big Bottle Water Filling Machine Material: SUS 304
Voltage: Standard Dimension(L*W*H): 2800*1800*2100 Mm
Weight: 2500KG Filling Liquid: Water
Bottle Shape: 5L PET Plastic Bottle Filling Accuracy: 99.9%
Key Selling Points: Full Automatic Bottle Size: 3-10L (Customized)
Function: Bottle Washing Filling Capping Control System: PLC+Touch Screen
Power: 3.5 KW Application: Water Factory
Packaging Material: Carton Packing Driven Type: Electric
Color: Staniless Steel Color Product: Bottle Drinking Water
High Light:

10L Water Bottles Filling Machine

,

5L Water Bottles Filling Machine

,

Monoblock Water Bottles Filling Machine

Product Description

5L/10L Monoblock Big Bottle Automatic Water Filling Machine In Sale



High Quality 5 -10L 3 in 1 Water Washing Filling Capping Making Machine Price Mineral Water Plant

Inroduction of  Bottle Water Filling Packing Machine:

New 5 liters water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.
All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international
famous brand.

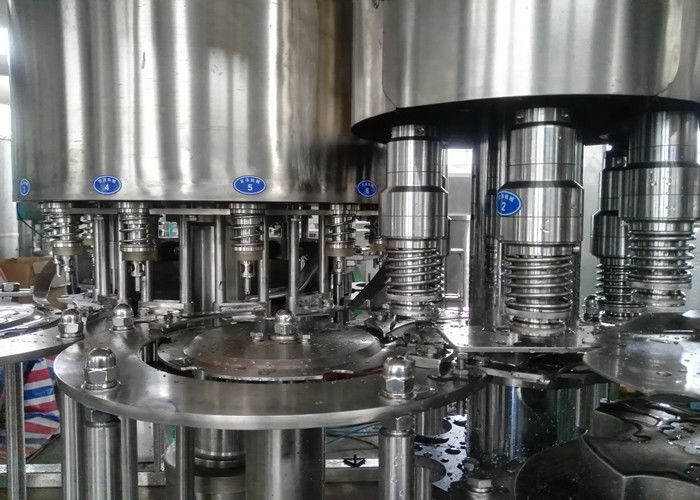

This water washing filling capping machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.
We are the water filling machine manufacturers in China.





Feature



1. The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.

2. The special stainless steel clip is adopted and the clip will not contact the area above the bottle's screw thread. Nozzle is in the clip can guarantee the complete wash of the interior of the bottle.

3. The advanced micro negative-pressure filing technology used in this machine make the filling quickly, steady and accurate. The beverage-holding tank is fully closed and also, temperature-control device and CIP washing interface are installed.

4. The machine can meet all the technical requirements for hot-filling below 95¡æ. And before capping, bottle mouth will be cleaned by RO washing device.

5. Magnetic torque is used for screw capping. And the power of screw capping can be adjusted freely. Capping is reliable and will not harm the caps.

6. Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.

7. All parts that contact with the water are made of high quality stainless steel. The critical electrical components such as the decelerators, the motor are all from famous international companies.

Monoblock Automatic Water Bottles Filling Machine 5L / 10L 0

Model CGZ4-4-1 CGZ12-12-4 CGZ18-18-6 CGZ24-24-8
Capacity 800BPH 4000BPH 8000BPH 12000BPH
Applicable bottle type Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml
Applicable bottle shape Plastic Screw cap
Gas pressure 0.8 0.6 0.6 0.6
Motor power 3.5 3.1 3.5 3.8
Pressure 2-3kg/cm2
Machine size 2.8*1.28*1.8 m 2.45*1.65*2.1m 2.6*1.8*2.1m 3*2.2*2.4m
Weight 1800kg 2000kg 2500kg 4200kg































Monoblock Automatic Water Bottles Filling Machine 5L / 10L 1

Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine.

Electrical Appliances Brand :

Electrical Appliances Brand
 Monoblock Automatic Water Bottles Filling Machine 5L / 10L 2  Monoblock Automatic Water Bottles Filling Machine 5L / 10L 3  Monoblock Automatic Water Bottles Filling Machine 5L / 10L 4  Monoblock Automatic Water Bottles Filling Machine 5L / 10L 5
CNP Water Pump Siemens Main Motor Siemens PLC Siemens Inveter
 Monoblock Automatic Water Bottles Filling Machine 5L / 10L 6  Monoblock Automatic Water Bottles Filling Machine 5L / 10L 7  Monoblock Automatic Water Bottles Filling Machine 5L / 10L 8  Monoblock Automatic Water Bottles Filling Machine 5L / 10L 9
Siemens Touch Screen Schneider Circuit Breaker Schneider Contactor Omron Relay
 Monoblock Automatic Water Bottles Filling Machine 5L / 10L 10  Monoblock Automatic Water Bottles Filling Machine 5L / 10L 11  Monoblock Automatic Water Bottles Filling Machine 5L / 10L 12  Monoblock Automatic Water Bottles Filling Machine 5L / 10L 13
Omron Sensor SMC Solenoid Valve SMC Cylinder SMC Air Filter



Monoblock Automatic Water Bottles Filling Machine 5L / 10L 14

Monoblock Automatic Water Bottles Filling Machine 5L / 10L 15

Monoblock Automatic Water Bottles Filling Machine 5L / 10L 16

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

Monoblock Automatic Water Bottles Filling Machine 5L / 10L 17



● If we can fullfill your request and you interested in our products, you may pay a visit to Bievo Machine site
● The meaning of visiting supplier, because seeing is believing, Bievo Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.

HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank
account.

AFTER-SALE SERVICE.
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
