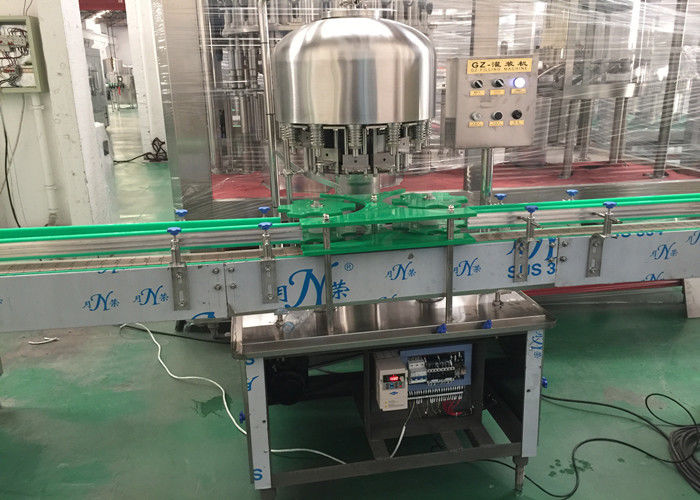

1000bph 2500ml 415V Water Bottles Filling Machine
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | CGF12-12-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 15000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 20-30working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Rinsing, Filling And Capping Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Material: | SUS 304/ SUS 316 | Voltage: | 220V / 380V / 415V |
| Dimension(L*W*H): | 3500*1800*2200 Mm | Weight: | 3000KG |
| Filling Material: | Mineral Water /pure Water | Filling Valve Head: | 12 |
| Bottle Shape: | Round Or Square | Core Components: | Pump, PLC |
| Filling Accuracy: | 99.9% | Key Selling Points: | Full Automatic |
| Bottle Size: | 200-2500ml | Function: | Bottle Water Filling Machine |
| Control System: | Plc+touch Screen | Workshop Layout: | Free Design |
| Application: | Water Filling | Packaging Material: | Wood |
| Driven Type: | Electric | Machinery Capacity: | 1000-2000BPH |
| High Light: | 1000bph Water Bottles Filling Machine,CGF12-12-1 Water Bottles Filling Machine,1000bph drinking water filling machine |
||
Product Description
1000-2000BPH separate type 12-12-1 mineral water pure water bottle filling machine
Introduction of Bottle Water Production Line
The water filling machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine. The whole process is automatic. The water filling machine is used in filling mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine tofill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.
| Model | CGZ12-12-1 | CGZ8-8-3 | CGZ12-12-6 | CGZ18-18-6 | CGZ24-24-8 | CGF32-32-8 | CGF40-40-12 |
|---|---|---|---|---|---|---|---|
| Capacity | 1000-2000bph | 2000BPH | 4000BPH | 8000BPH | 12000BPH | 15000BPH | 20000BPH |
| Applicable bottle type | Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml | ||||||
| Applicable bottle shape | Plastic Screw cap | ||||||
| Gas pressure | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Motor power | 2.3 | 2.3 | 3.1 | 3.5 | 3.8 | 3.8 | 4.2 |
| Pressure | 2-3kg/cm2 | ||||||
| Machine size | 2.2*1.8*2.3 m | 2.45*1.65*2.1m | 2.6*1.8*2.1m | 3*2.2*2.4m | 4*2.2*2.4m | 4.1*2.782.6m | |
| Weight | 1800kg | 2000kg | 2500kg | 4200kg | 4800kg | 5000kg | |
| Bottle Water Washing Filling Capping Machine | |
| model | output |
| 12-12-1 | 1000-2000bph |
| 8-8-3 | 2000-3000bph |
| 16-12-6 | 4000-5000bph |
| 18-18-6 | 6000-7000bph |
| 24-24-8 | 8000-9000bph |
| 32-32-10 | 10000-12000bph |
Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine
Choose your production output per hour:
12-12-1 Bottle Water Washing Filling Capping Machine,Production:1000-2000 bottles per hour.
8-8-3 Bottle Water Washing Filling Capping Machine,Production:2000-3000 bottles per hour.
16-12-6 Bottle Water Washing Filling Capping Machine,Production:4000-5000 bottles per hour.
18-18-6 Bottle Water Washing Filling Capping Machine,6000-7000 bottles per hour.
24-24-8 Bottle Water Washing Filling Capping Machine,8000-9000 bottles per hour.
32-32-10 Bottle Water Washing Filling Capping Machine,10000-12000 bottles per hour.
40-40-10 Bottle Water Washing Filling Capping Machine,13000-15000 bottles per hour.
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Q1: Where is your factory? How can I visit there?
<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
