3000bph Water Bottles Filling Machine
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | CGZ 12-12-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 13500dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 20-30working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Model: | CGZ12-12-6 | Machinery Capacity: | 3000-4000bph |
|---|---|---|---|
| Product Name: | Small Bottle Drking Water Filling Machine | Material: | SUS 304/316 |
| Dimension(L*W*H): | 2300*1580*2200 Mm | Weight: | 3000KG |
| Filling Liquid: | Mineral Water /Pure Water /Drinking Water | Bottle Shape: | Round Or Square |
| Filling Accuracy: | 99.9% | Bottle Size: | 200-2500ml (Customized) |
| Function: | Bottle Washing Filling Capping | Control System: | PLC+Touch Screen |
| Power: | 3.1KW | Application: | Beverage Factory |
| Packaging Material: | PE Firm And Wooden Case | Driven Type: | Electric |
| Color: | Gray | Product: | Bottle Drinking Water |
| High Light: | CGZ 12-12-6 Water Bottles Filling Machine,3000bph Water Bottles Filling Machine,3.1KW mineral water filling machine |
||
Product Description
3000-4000bph Automatic PET Glass Small Bottle Drinking Water Making Filling Machine
Inroduction of Water Production Line:
PET/Glass small bottle drinking water making filling machine 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine.
| Model | CGZ8-8-3 | CGZ12-12-6 | CGZ18-18-6 | CGZ24-24-8 | CGF32-32-8 | CGF40-40-12 |
|---|---|---|---|---|---|---|
| Capacity | 3000BPH | 4000BPH | 8000BPH | 12000BPH | 15000BPH | 20000BPH |
| Applicable bottle type | Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml | |||||
| Applicable bottle shape | Plastic Screw cap | |||||
| Gas pressure | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Motor power | 2.3 | 3.1 | 3.5 | 3.8 | 3.8 | 4.2 |
| Pressure | 2-3kg/cm2 | |||||
| Machine size | 2.2*1.8*2.3 m | 2.45*1.65*2.1m | 2.6*1.8*2.1m | 3*2.2*2.4m | 4*2.2*2.4m | 4.1*2.782.6m |
| Weight | 1800kg | 2000kg | 2500kg | 4200kg | 4800kg | 5000kg |
| Electrical Appliances Brand | |||
| |
|
|
|
| CNP Water Pump | Siemens Main Motor | Siemens PLC | Siemens Inveter |
| |
|
|
|
| Siemens Touch Screen | Schneider Circuit Breaker | Schneider Contactor | Omron Relay |
| |
|
|
|
| Omron Sensor | SMC Solenoid Valve | SMC Cylinder | SMC Air Filter |
Machine's Details:
Washing Part Of Small Bottle Mineral Water Filling Machine

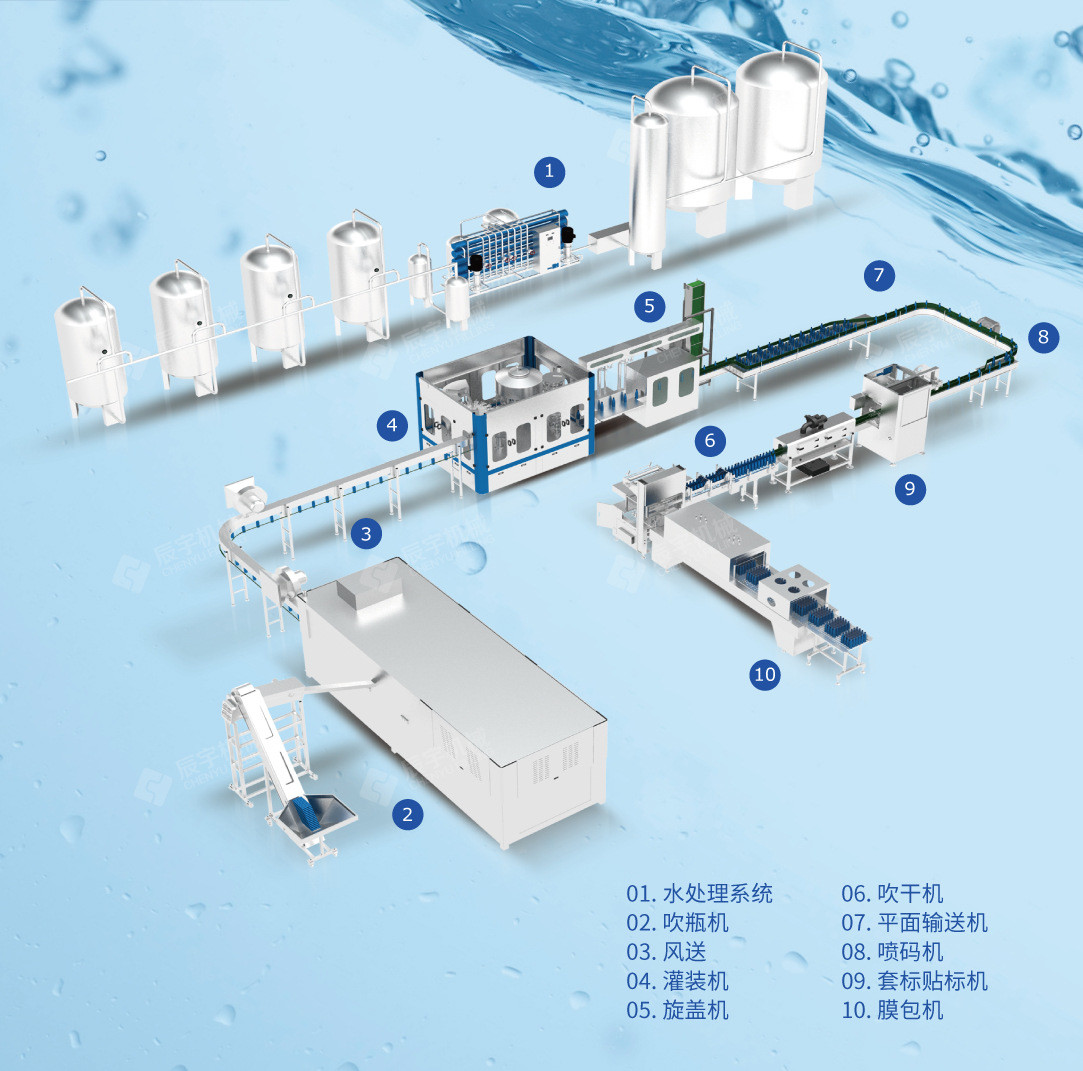

Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine.
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Q1: Where is your factory? How can I visit there?
<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
