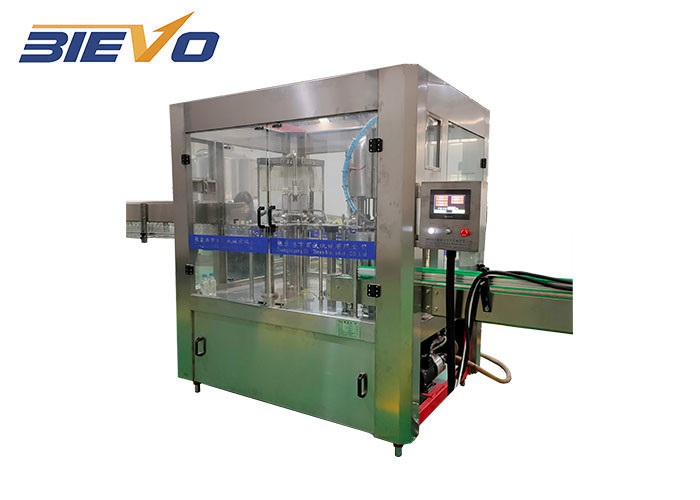

CE 4000bph SUS 304 Mineral Water Packaging Machine

CE 4000bph SUS 304 Mineral Water Packaging Machine

  • High Light

    CGZ16-12-6 Mineral Water Packaging Machine

    ,

    4000bph Mineral Water Packaging Machine

    ,

    4000bph monoblock liquid filling machine

  • Model
    CGZ16-12-6
  • Machinery Capacity
    4000-5000bph
  • Product Name
    Automatic Bottle Water Filling Plant
  • Material
    SUS 304/316
  • Voltage
    380V
  • Dimension(L*W*H)
    2280*1600*2250 Mm
  • Weight
    3200KG
  • Filling Material
    Water
  • Bottle Shape
    Round Or Square
  • Filling Material
    Flowing Liquid
  • Key Selling Points
    Long Service Life
  • Bottle Size
    200-2000ml
  • Usage
    Beverage Packaging
  • Control System
    PLC+Touch Screen
  • Filling Type
    Quantity Filling
  • Application
    Beverage Factory
  • Packaging Material
    PE Firm And Wooden Case
  • Driven Type
    Electric
  • Filling Accuracy
    1%
  • Product
    Bottle Drinking Water
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    CGZ 16-12-6
  • Minimum Order Quantity
    1set
  • Price
    13500dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    30working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

CE 4000bph SUS 304 Mineral Water Packaging Machine

4000-5000bph Automatic PET Glass Small Bottle Drinking Water Making Filling Machine



Inroduction of  Water Production Line:



Automatic mineral water bottle 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

This CGF washing-filling-capping 3-in-1 unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. The CGF washing-filling-capping 3-in-1 unit: Beverage Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.



Main Features Of Small Bottle Drinking Water Filling Machine
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this
enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only
change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of
bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's
Mitsubishi, France Schneider, OMRON.

CE 4000bph SUS 304 Mineral Water Packaging Machine 0on.

Model CGZ8-8-3 CGZ16-12-6 CGZ18-18-6 CGZ24-24-8 CGF32-32-8 CGF40-40-12
Capacity 3000BPH 5000BPH 8000BPH 12000BPH 15000BPH 20000BPH
Applicable bottle type Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml
Applicable bottle shape Plastic Screw cap
Gas pressure 0.6 0.6 0.6 0.6 0.6 0.6
Motor power 2.3 3.1 3.5 3.8 3.8 4.2
Pressure 2-3kg/cm2
Machine size 2.2*1.8*2.3 m 2.45*1.65*2.1m 2.6*1.8*2.1m 3*2.2*2.4m 4*2.2*2.4m 4.1*2.782.6m
Weight 1800kg 2000kg 2500kg 4200kg 4800kg 5000kg





























CE 4000bph SUS 304 Mineral Water Packaging Machine 1

Machine's Details:

CE 4000bph SUS 304 Mineral Water Packaging Machine 2

Washing Part Of Small Bottle Mineral Water Filling Machine
CE 4000bph SUS 304 Mineral Water Packaging Machine 3
Function : washing bottle inside and outside dust .
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Filling Part Of Small Bottle Mineral Water Filling Machine
CE 4000bph SUS 304 Mineral Water Packaging Machine 4
Fucntion : filling wine into bottle .
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Part
CE 4000bph SUS 304 Mineral Water Packaging Machine 5
Function : put caps on bottle .
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%

Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine.

Electrical Appliances Brand :

Electrical Appliances Brand
 CE 4000bph SUS 304 Mineral Water Packaging Machine 6  CE 4000bph SUS 304 Mineral Water Packaging Machine 7  CE 4000bph SUS 304 Mineral Water Packaging Machine 8  CE 4000bph SUS 304 Mineral Water Packaging Machine 9
CNP Water Pump Siemens Main Motor Siemens PLC Siemens Inveter
 CE 4000bph SUS 304 Mineral Water Packaging Machine 10  CE 4000bph SUS 304 Mineral Water Packaging Machine 11  CE 4000bph SUS 304 Mineral Water Packaging Machine 12  CE 4000bph SUS 304 Mineral Water Packaging Machine 13
Siemens Touch Screen Schneider Circuit Breaker Schneider Contactor Omron Relay
 CE 4000bph SUS 304 Mineral Water Packaging Machine 14  CE 4000bph SUS 304 Mineral Water Packaging Machine 15  CE 4000bph SUS 304 Mineral Water Packaging Machine 16  CE 4000bph SUS 304 Mineral Water Packaging Machine 17
Omron Sensor SMC Solenoid Valve SMC Cylinder SMC Air Filter



CE 4000bph SUS 304 Mineral Water Packaging Machine 18

CE 4000bph SUS 304 Mineral Water Packaging Machine 19

CE 4000bph SUS 304 Mineral Water Packaging Machine 20

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

CE 4000bph SUS 304 Mineral Water Packaging Machine 21

CE 4000bph SUS 304 Mineral Water Packaging Machine 22

Q1: Where is your factory? How can I visit there?

A1: Our location is No.66, Baixiong Road, Sanxing Town, Zhangjiagang City, Jiangsu Province, China
Our factory is nearby from Shanghai City, if you fly from abroad, we can pick you up at the airport.

Q2: What's your payment stipulation?
A2: Our standard payment is 30% of the total amount for deposit, pay the balance before the shippment. For the others,
we can further discuss.

Q3: Do you have technicians for installation?
A3: We are responsible for the installaion in your country, you can also arange your staffs to our factory to learn how to operate the complete line.

Q4: How about the spare parts?
A4: We will send one year enough easy broken spare parts together with the machines when shipping, In the course of the warranty time, we can delivery you including the cost and fees.
CE 4000bph SUS 304 Mineral Water Packaging Machine 23

<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
