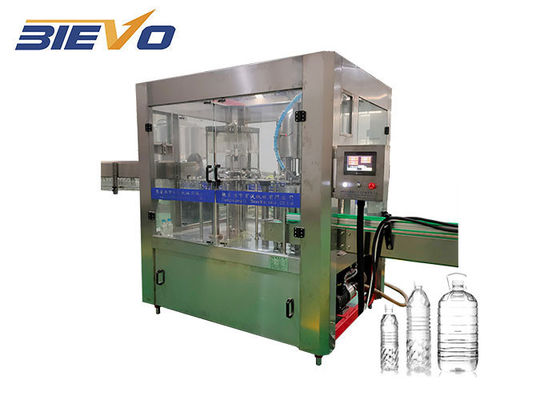

380V 2000bph SUS 316 Pure Water Filling Machine
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | CGZ 8-8-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 13500dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Model: | CGZ8-8-3 3-in-1 | Machinery Capacity: | 1000-2000BPH |
|---|---|---|---|
| Product Name: | Pure Water Filling Machine | Material: | SUS 304/SUS 316 |
| Voltage: | 380V/220V Customized | Dimension(L*W*H): | 2280*1600*2250 Mm |
| Weight: | 3000KG | Filling Material: | Mineral Water/pure Water/drinking Water |
| Bottle Shape: | Customized | Filling Material:: | Liquid |
| Key Selling Points: | Easy Installation | Bottle Size: | 200-2000ml |
| Usage: | Packing Water | Control System: | PLC+Touch Screen |
| Filling Type: | Gravity Filling | Application: | Water Plant |
| Packaging Material: | PE Film/Carton Packing | Driven Type: | Electric |
| Filling Accuracy: | 1% | Product: | Bottle Drinking Water |
| High Light: | CGZ 8-8-3 Pure Water Filling Machine,2000bph Pure Water Filling Machine,2000bph mineral water filling machine |
||
Product Description
1000-2000BPH 8-8-3 small bottle water filling machine/mineral water filling machine/pure water filling machine
Inroduction of Water Production Line:
This is water washing, filling, capping 3 in 1 mono block Machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment. Production capacity is 2000 bottles per hour. Main-frame machine adopts frequency controlling electric motor, which is much convenient to adjust speed in scope of production capacity.
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
4. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as
Japan'sMitsubishi, France Schneider, OMRON
on.
| Model | CGZ8-8-3 | CGZ16-12-6 | CGZ18-18-6 | CGZ24-24-8 | CGF32-32-8 |
|---|---|---|---|---|---|
| Capacity | 3000BPH | 5000BPH | 8000BPH | 12000BPH | 15000BPH |
| Applicable bottle type | Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml | ||||
| Applicable bottle shape | Plastic Screw cap | ||||
| Gas pressure | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Motor power | 2.3 | 3.1 | 3.5 | 3.8 | 3.8 |
| Pressure | 2-3kg/cm2 | ||||
| Machine size | 2.2*1.8*2.3 m | 2.45*1.65*2.1m | 2.6*1.8*2.1m | 3*2.2*2.4m | 4*2.2*2.4m |
| Weight | 1800kg | 2000kg | 2500kg | 4200kg | 4800kg |
| Model | CGZ8-8-3 |
| Washing head | 8 |
| Filling head | 8 |
| Capping head | 3 |
| Capacity | 2000BPH/500ml |
| Air source pressure | 0.5-0.6Mpa |
| Rinsing water pressure | 0.15-0.2Mpa |
| Bottle height | 150-340mm |
| Bottle diameter | Φ50-Φ110MM |
Machine's Details:
Washing Part Of 2000BPH Rinsing filling capping 3-in-1 small bottle water filling machine/ bottle water plant
Function : washing bottle inside and outside dust .
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.

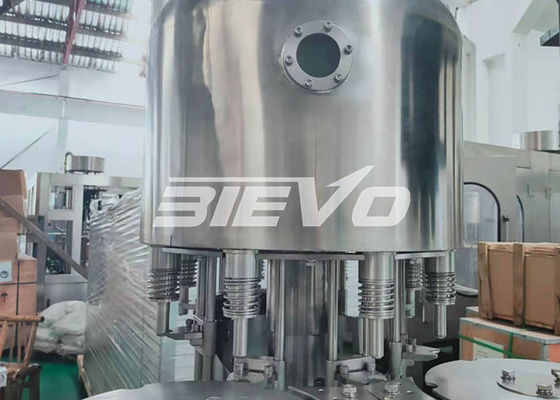

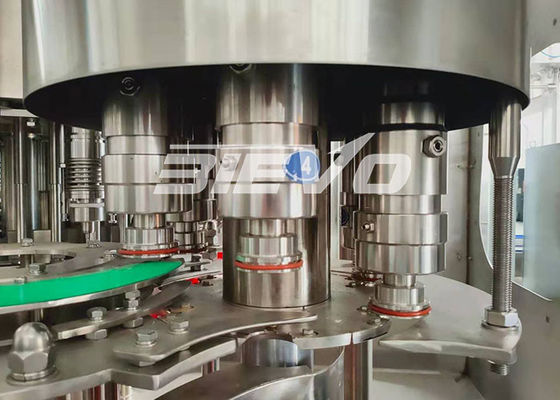

Filling Part Of Small Bottle Mineral Water Filling Machine
Fucntion : filling wine into bottle .
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Part
Function : put caps on bottle .
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine.
Electrical Appliances Brand :
| Electrical Appliances Brand | |||
| |
|
|
|
| CNP Water Pump | ABB Main Motor | Siemens/Mitsubishi PLC | Siemens Inveter |
| |
|
|
|
| Siemens Touch Screen | Schneider Circuit Breaker | Schneider Contactor | Omron Relay |
| |
|
|
|
| Omron Sensor | SMC Solenoid Valve | SMC Cylinder | SMC Air Filter |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Q1: Are you a manufacturer or trade company?
A1: We are a manufacturer in beverage machine field more than 10 years. We can have video call to check workshop.
Q2: What's product ranges ?
A2: Drink water/juice/carbonated drink filling line.
PET small bottle or big barrel like 5 gallon water / can beverage / glass bottle beverage filling line
Water, beverage and carbonated drinking treatment line.
Performs blowing machine and caps injecting moulding machine .
After packing system(label machine, PE film shrink packing machine, carton machine etc.)
Q3: Do you have any certification?
A3: We are certified by CE and SGS.
Q4: Before sending a quotation, What information shall be provided?
A4: a. What kind of beverage do you want to produce?
b. How about bottle volume? 250ml, 330ml, 500ml, 750ml, or else?
c. Production capacity requirement, how many bottles per hour?
d. Raw water analysis report if you have.
e. How about your electric power system for 3 phase, in China it is 3 pahse, 380V, 50Hz.
Q5: If bottle size changes, is it possible just do some adjustment on machine according to new bottle size?
A5: Yes, just need to change some relevant parts. We have a video for teaching how to operate.
<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
