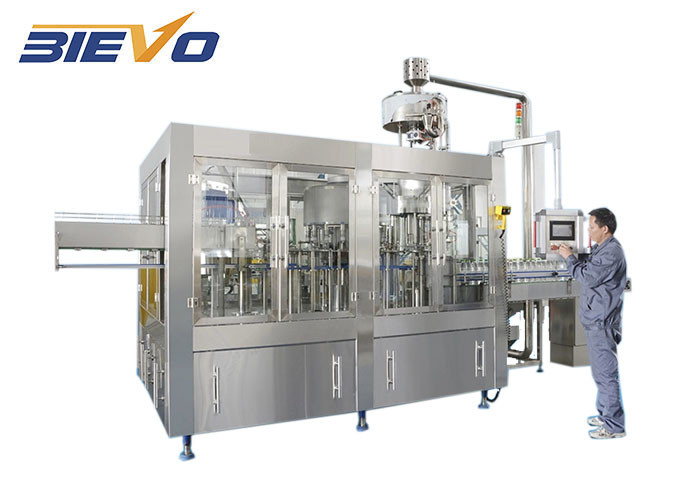

415V PLC 6000bph Packaged Drinking Water Filling Machine

415V PLC 6000bph Packaged Drinking Water Filling Machine

  • High Light

    CGF16-16-6 Packaged Drinking Water Filling Machine

    ,

    6000bph Packaged Drinking Water Filling Machine

    ,

    6000bph mineral water packaging machine

  • Type
    Automatic Drinking Water Filling Machine Production Line
  • Machinery Capacity
    6000bph
  • Automatic Grade
    Automatic
  • Bottle Material
    PET
  • Voltage
    220V / 380V / 415V
  • Dimension(L*W*H)
    2400*1300*2200 Mm
  • Weight
    2800KG
  • Filling Material
    Mineral Water /pure Water
  • Certification
    CE,ISO
  • Bottle Shape
    Round Or Square
  • Usage
    Beverage Packaging
  • Filling Accuracy
    99.9%
  • Key Selling Points
    Competitive Price
  • Bottle Size
    200-2500ml (Customized)
  • Bottle Diameter
    50~110mm
  • Bottle Height
    160~320mm
  • Control System
    PLC (Siemens, Mitsubishi)
  • Application
    Beverage
  • Packaging Material
    Wood
  • Driven Type
    Electric
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    CGF16-16-6
  • Minimum Order Quantity
    1set
  • Price
    22500dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    20-30working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

415V PLC 6000bph Packaged Drinking Water Filling Machine

6000BPH Factory Price Automatic Small Bottle Drinking Water Filling Packing Machines Production Line Plant

Inroduction of  Water Production Line:

1.) Automatic Drinkng Water Bottle Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Main Features:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this
enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only
change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of
bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's
Mitsubishi, France Schneider, OMRON.

415V PLC 6000bph Packaged Drinking Water Filling Machine 0

Main Composition Of Mineral Water Bottle Filling Machine
PLC Mitsubishi, Siemens
Touch screen Mitsubishi, Siemens, PROFACE
Frequency converter Mitsubishi, Siemens, Danfoss
Air switch Schneider
Contactor Siemens
Breaker Siemens
Photoelectric switch Omron, Keyence, P+F
Approach switch Truck
Main bearing NTN
Lubrication bearing IGUS
Sealing Sealtech
Pneumatic components Camozzi



415V PLC 6000bph Packaged Drinking Water Filling Machine 1

415V PLC 6000bph Packaged Drinking Water Filling Machine 2

415V PLC 6000bph Packaged Drinking Water Filling Machine 3

415V PLC 6000bph Packaged Drinking Water Filling Machine 4



Washing part

<1>All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump

Filling part
<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
Capping part
<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle

Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine

Choose your production output per hour:

12-12-1 Bottle Water Washing Filling Capping Machine,Production:1000-2000 bottles per hour.
8-8-3 Bottle Water Washing Filling Capping Machine,Production:2000-3000 bottles per hour.
16-12-6 Bottle Water Washing Filling Capping Machine,Production:4000-5000 bottles per hour.
18-18-6 Bottle Water Washing Filling Capping Machine,6000-7000 bottles per hour.
24-24-8 Bottle Water Washing Filling Capping Machine,8000-9000 bottles per hour.
32-32-10 Bottle Water Washing Filling Capping Machine,10000-12000 bottles per hour.

40-40-10 Bottle Water Washing Filling Capping Machine,13000-15000 bottles per hour.

Electrical Appliances Brand
 415V PLC 6000bph Packaged Drinking Water Filling Machine 5  415V PLC 6000bph Packaged Drinking Water Filling Machine 6  415V PLC 6000bph Packaged Drinking Water Filling Machine 7  415V PLC 6000bph Packaged Drinking Water Filling Machine 8
CNP Water Pump Siemens Main Motor Siemens PLC Siemens Inveter
 415V PLC 6000bph Packaged Drinking Water Filling Machine 9  415V PLC 6000bph Packaged Drinking Water Filling Machine 10  415V PLC 6000bph Packaged Drinking Water Filling Machine 11  415V PLC 6000bph Packaged Drinking Water Filling Machine 12
Siemens Touch Screen Schneider Circuit Breaker Schneider Contactor Omron Relay
 415V PLC 6000bph Packaged Drinking Water Filling Machine 13  415V PLC 6000bph Packaged Drinking Water Filling Machine 14  415V PLC 6000bph Packaged Drinking Water Filling Machine 15  415V PLC 6000bph Packaged Drinking Water Filling Machine 16
Omron Sensor SMC Solenoid Valve SMC Cylinder SMC Air Filter



415V PLC 6000bph Packaged Drinking Water Filling Machine 17

415V PLC 6000bph Packaged Drinking Water Filling Machine 18

415V PLC 6000bph Packaged Drinking Water Filling Machine 19

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

415V PLC 6000bph Packaged Drinking Water Filling Machine 20

415V PLC 6000bph Packaged Drinking Water Filling Machine 21

<1> Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

<2> Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

<3> Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
