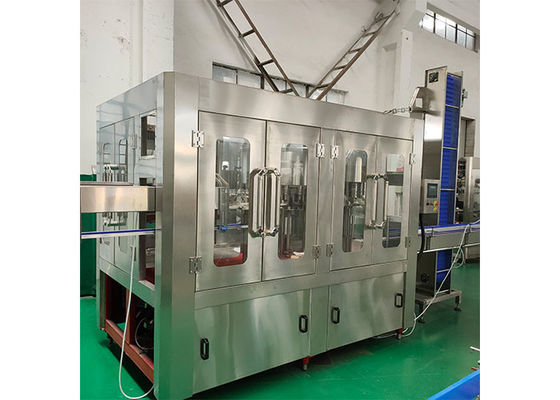

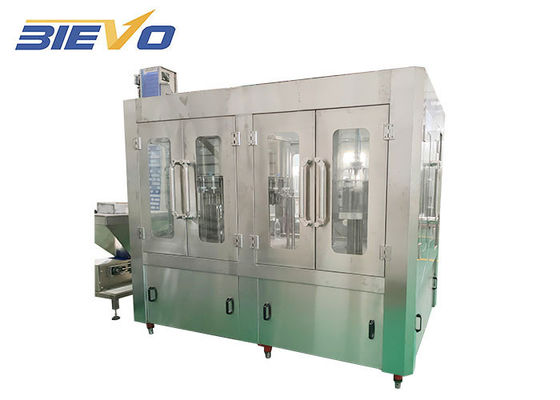

CGF12-12-6 PET Bottle 4000bph Water Bottles Filling Machine
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | CGF12-12-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 22500dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Automatic Water Filling Machine | Filling Capacity: | 4000bph |
|---|---|---|---|
| Automatic Grade: | Automatic | Washing Heads: | 12Heads |
| Filling Heads: | 12Heads | Capping Heads: | 6Heads |
| Dimension(L*W*H): | 2100*2300*2500mm | Filling Material: | Mineral Water, Wine, Non-carbonated Water |
| Application: | Beverage | Bottle Shape: | Round Or Square |
| Usage: | Beverage Packaging | Filling Pressure: | Normal Pressure |
| Key Selling Points: | High Safety Level | Bottle Size: | 200-2500ml (Customized) |
| Bottle Diameter: | 50~110mm | Bottle Height: | 160~320mm |
| Control System: | PLC (Siemens, Mitsubishi) | Certification: | CE Certificate |
| Packaging Material: | Wood | Driven Type: | Electric |
| Condition: | New | Brand Name: | Bievo |
| High Light: | 4000bph Water Bottles Filling Machine,CGF12-12-6 Water Bottles Filling Machine,4000bph fully automatic water bottle filling machine |
||
Product Description
4000BPH AutomaticPET Bottle Mineral Water Filling Machine Production Line
Inroduction of Automatic Bottle Filling Machine:
1.Applied for filling pure and mineral water into bottles.
2.The three functions of bottle washing, filling and capping are combined into one machine.
3.The whole machine has scientific and reasonable design, beautiful appearance, complete functions, easy operation and maintenance, a high degree of automation.
4.The most advanced technology Italy and Germany is employed in the design.
5.The whole machine is controlled by PLC with touch-screen as the human-machine interface.
6.The filling and capping will be stopped when there is no bottles.
7. Each water filling machine element that contacts with the liquid is made of high quality Stainless steel 304, if needed,Stainless steel is also available.
8. Easy to operate, save the cost for workers.
Main Features:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this
enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only
change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of
bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's
Mitsubishi, France Schneider, OMRON.
| Model | CGZ8-8-3 | CGZ16-12-6 | CGZ18-18-6 | CGZ24-24-8 | CGF32-32-8 | CGF40-40-12 |
|---|---|---|---|---|---|---|
| Capacity | 3000BPH | 5000BPH | 8000BPH | 12000BPH | 15000BPH | 20000BPH |
| Applicable bottle type | Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml | |||||
| Applicable bottle shape | Plastic Screw cap | |||||
| Gas pressure | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Motor power | 2.3 | 3.1 | 3.5 | 3.8 | 3.8 | 4.2 |
| Pressure | 2-3kg/cm2 | |||||
| Machine size | 2.2*1.8*2.3 m | 2.45*1.65*2.1m | 2.6*1.8*2.1m | 3*2.2*2.4m | 4*2.2*2.4m | 4.1*2.782.6m |
| Weight | 1800kg | 2000kg | 2500kg | 4200kg | 4800kg | 5000kg |
| Main Composition Of Mineral Water Bottle Filling Machine | |
| PLC | Mitsubishi, Siemens |
| Touch screen | Mitsubishi, Siemens, PROFACE |
| Frequency converter | Mitsubishi, Siemens, Danfoss |
| Air switch | Schneider |
| Contactor | Siemens |
| Breaker | Siemens |
| Photoelectric switch | Omron, Keyence, P+F |
| Approach switch | Truck |
| Main bearing | NTN |
| Lubrication bearing | IGUS |
| Sealing | Sealtech |
| Pneumatic components | Camozzi |
<1> All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean
<2>
304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<3> 304/316 stainless steel washing pump
Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine
Choose your production output per hour:
12-12-1 Bottle Water Washing Filling Capping Machine,Production:1000-2000 bottles per hour.
8-8-3 Bottle Water Washing Filling Capping Machine,Production:2000-3000 bottles per hour.
16-12-6 Bottle Water Washing Filling Capping Machine,Production:4000-5000 bottles per hour.
18-18-6 Bottle Water Washing Filling Capping Machine,6000-7000 bottles per hour.
24-24-8 Bottle Water Washing Filling Capping Machine,8000-9000 bottles per hour.
32-32-10 Bottle Water Washing Filling Capping Machine,10000-12000 bottles per hour.
40-40-10 Bottle Water Washing Filling Capping Machine,13000-15000 bottles per hour.
| Electrical Appliances Brand | |||
| |
|
|
|
| CNP Water Pump | Siemens Main Motor | Siemens PLC | Siemens Inveter |
| |
|
|
|
| Siemens Touch Screen | Schneider Circuit Breaker | Schneider Contactor | Omron Relay |
| |
|
|
|
| Omron Sensor | SMC Solenoid Valve | SMC Cylinder | SMC Air Filter |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
