12000bph 380V 3500kg Rinsing Filling Capping Machine
|Place of Origin:
Payment & Shipping Terms:
|Minimum Order Quantity:
|L/C, D/A, D/P, T/T, Western Union, MoneyGram
|10 sets per month
|Pure Water Filling Machine
|Key Selling Points:
|Easy To Operate
|Bottle Water Plant
|PE Film/carton Packing
|Bottle Drinking Water

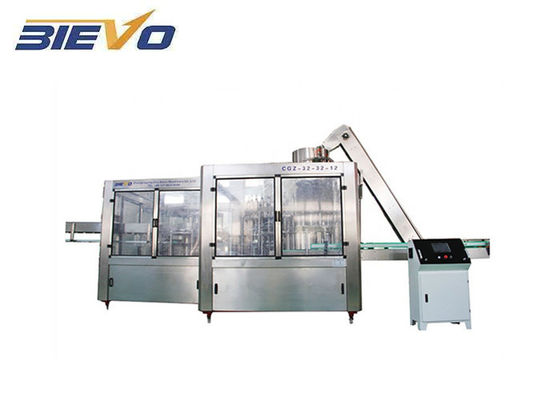

CGZ32-32-10 Rinsing Filling Capping Machine,
12000bph Rinsing Filling Capping Machine,
12000bph washing filling and capping machine

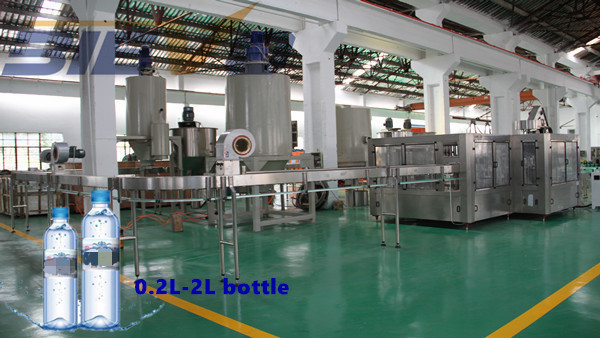

12000BPH 32-32-10 rinsing filling capping filling machine/mineral water production line/pure water filling machine
Inroduction of Water Production Line:
1.The water filling machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
2.The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
3.CGF series Non-carbonated Water Filling Machine apply to the production of mineral water, purified water, flavor water and low alcoholic drinks, etc.
Main Features Of Small Bottle Drinking Water Filling Machine
1. Air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section, the two conveyor system speed can be adjusted to work in synchronization with transducer of the main machine to make the operations of moving bottle steadily and reliably,

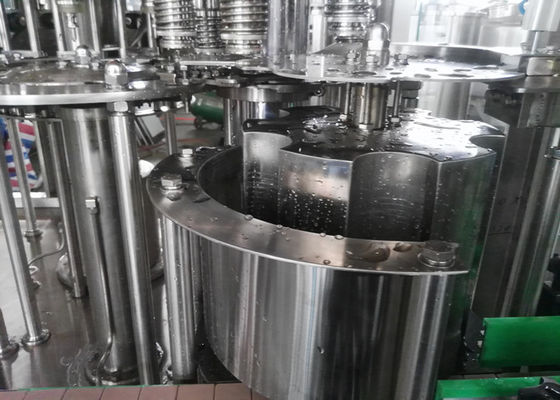

2. It adopt hanging type conveying-bottle structure, The bottle neck is cramped and bottles are suspended during the operation process, this avoid many malfunctions caused by thinner bottle body and different height of bottles, the design also reduce the required number of changeable parts for changing between various bottle, make bottle change more convenient and with high efficiency,

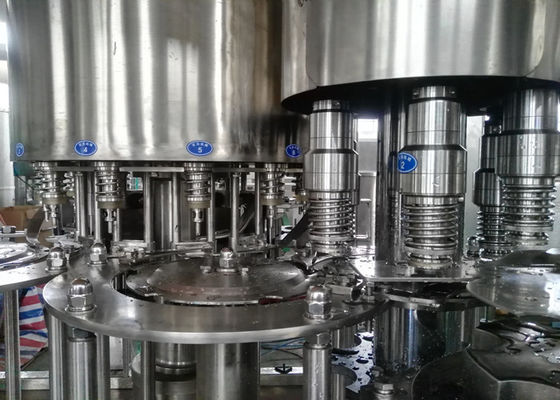

3. Japanese and Italy technology is employed by balanced pressure filling, with liquid tank and bottle inside pressure balanced during filling, the filling is faster and liquid level is accurately controlled, and avoid leakage and dropping,
4. Spring cramps are used in the bottle washing process, the empty bottle can be turned over 180degree along the conveying rail, there are two times of internal and external washing to guarantee high efficiency for washing

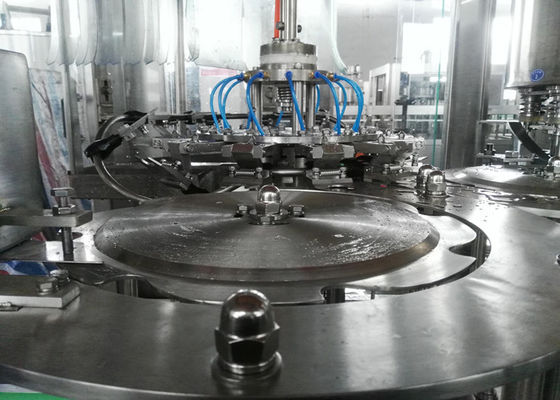

5. The magnetic torque is used for screw capping, the force of cap grabing, and screw capping can be adjusted steplessly, the force of the screw capping can also be fixed to avoid cap damaged and make sure reliable capping
6. The horizontal rotary pneumatic cap sorting device is used to avoid the damage to the surface of the caps, and when there is a shortage of caps in the cap storage tank, alarm signal will be generated and the caps will be fed automatically
7. The whole machine is controlled by PLC program with touch screen as the human-machine interface,The liquid level in the storage tank is automatically controlled, the filling and capping will automatically stop when there is no bottle, when the bottles are cramped wrongly or when caps not available, the machine will stop automatically,
8. Use Mitsubishi frequency changing technology to adjust the operation speed steplessly,the production capacity will be displayed digitally and easy for adjusting,
9. All parts that have direct contact with water are made in SUS304 stainless steel to reach the requirements of Food sanitation
10. Main components of the machine is adopting imported brands,PLC and touch screen from Mitsubishi, electronics from Schneider and Omron, pneumatic parts from Airtac or Festo,Main motor from Siemens, and Transducer from Mitsubishi, to guarantee heavy duty machine
The drinking water filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing,filling and capping. This 3-in-1 water filling machine is mainly used for PET bottled liquid such as mineral water, pure water,stilled water, distilled water, and etc.
This water filling machine adopts advanced PLC control technology. The main electric elements adopt Mitsubishi, Omron, Siemens,etc international famous products. Each machine element that contacts with the liquid is made of high-quality stainless steel 304 or 316L.
CGF series filling machine adopts hanging type conveying-bottle structure to make changing bottle mould more convenient,faster.
The capacity of model CGFA 32-32-10 is up to 12000BPH.
|Applicable bottle type
|Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml
|Applicable bottle shape
|Plastic Screw cap
|Volume of PET bottle
|Diameter of bottle
|Height of bottle
|Less than 0.15Mpa
|Less than 2%-3%
|Pressure of washing
|Washing water consumption
|Power of main motor
|Electrical Appliances Brand
|CNP Water Pump
|Siemens/ABB Main Motor
|Siemens Touch Screen
|Schneider Circuit Breaker
|SMC Solenoid Valve
|SMC Air Filter
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Q1: Proposal design and make budget
We are capable of providing specialized proposal design and make a general budget for you.
Q2: Equipment production&commissioning
We will arrange the production for you as soon as the order confirmed, and make sure the quality of products, We have client cases in different countries , we can provide theirproduction working video for you .
Q3: Factory layout design
Machines and factory layout design is also available after the proposal confirmed.
Q4: Bottle shape design
We can also help to do the bottle shape design for you according to your needs.
Q5: Label Design
We can also help to design the label for you, and you can share with us your idea too.
Q6: Raw Material supply
We are capable of provide one-stop service, so the raw material supply is also available.
♦ We provide one year warranty for machines.
♦ 24hours technical support for the life- long.
♦ We can help you design the production line and workshop.We provide turn-key project.
♦ The cost of debugging is typically$100 a day .Accommodation ,visa applications and air tickets will be charged by the buyer.
♦ We have the singe quality department,that make sure the material of the raw materials good,and ensure the machine runnning smoothly.
♦ Afetr the machine is shipped to the buy's factory .Our company will send enough technicians to debug the installation until they can operate the machine well.
♦ All need wearing parts or maintenance spare part after warranty time will only need our production cost and will deliver to you in 7 days courier.
Welcome to choice our product , please give us more advices . Thank you!
