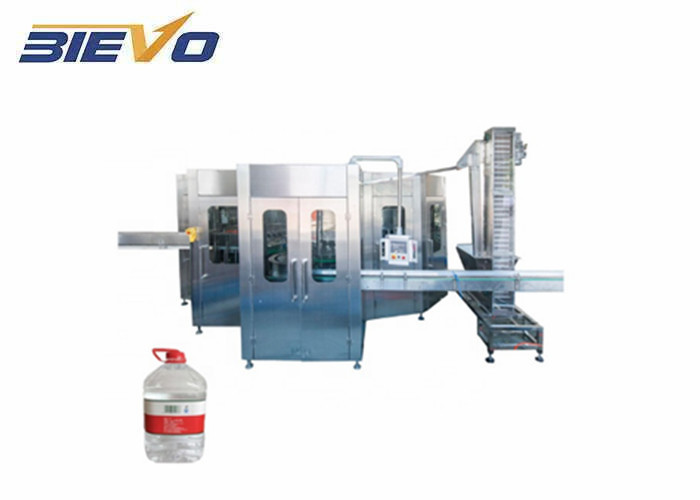

10L 1200bph 2000kg Packaged Drinking Water Filling Machine

10L 1200bph 2000kg Packaged Drinking Water Filling Machine

  • High Light

    2000kg Packaged Drinking Water Filling Machine

    ,

    1200bph Packaged Drinking Water Filling Machine

    ,

    1200bph washing filling and capping machine

  • Model
    CGZ12-12-4
  • Machinery Capacity
    1200bph
  • Product Name
    5L Bottle Rotary Filling Machine
  • Material
    SUS 304/SUS 316
  • Voltage
    Standard
  • Dimension(L*W*H)
    2800*1280*1800 Mm
  • Weight
    2000KG
  • Filling Liquid
    Drinking Water
  • Bottle Shape
    3-10L PET Plastic Bottle
  • Filling Accuracy
    99.9%
  • Key Selling Points
    Full Automatic
  • Bottle Size
    3-10L (Customized)
  • Function
    Bottle Washing Filling Capping
  • Control System
    PLC+Touch Screen
  • Power
    3.5 KW
  • Application
    Beverage Factory
  • Packaging Material
    PE Firm And Wooden Case
  • Driven Type
    Electric
  • Color
    Staniless Steel Color
  • Product
    Bottle Drinking Water
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    CGZ 12-12-4
  • Minimum Order Quantity
    1set
  • Price
    15800dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    20-30working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

10L 1200bph 2000kg Packaged Drinking Water Filling Machine

Automatic rotary 5L 10L bottled water filling capping machine / pure water making processing production line

Inroduction of  Bottle Water Filling Packing Machine:

New 5 liters water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.

This water washing filling capping machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.

We are the water filling machine manufacturers in China





1. Adopts piston pump to fill, suitable for all kinds of liquid, high precision; The structure of pump adopts shortcut dismantling organ, convenient to wash, sterilize.
2. The piston ring of volumetric injection pump use different material of silicone, polyclonal or other kinds according to liquid characteristic, use ceramic pump in special industry.
3. PLC control system, frequency conversion adjusting speed, high degree automation.
4. No bottle, no filling, auto count the quantity. And have the anti-drop device.
5. Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.
6. Filling head is equipped with anti-dropping equipment, diving to the bottom to fill, rise slowly, to avoid bubble.
7. The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.

10L 1200bph 2000kg Packaged Drinking Water Filling Machine 0

Model CGZ4-4-1 CGZ12-12-4 CGZ18-18-6 CGZ24-24-8
Capacity 800BPH 4000BPH 8000BPH 12000BPH
Applicable bottle type Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml
Applicable bottle shape Plastic Screw cap
Gas pressure 0.8 0.6 0.6 0.6
Motor power 3.5 3.1 3.5 3.8
Pressure 2-3kg/cm2
Machine size 2.8*1.28*1.8 m 2.45*1.65*2.1m 2.6*1.8*2.1m 3*2.2*2.4m
Weight 1800kg 2000kg 2500kg 4200kg































10L 1200bph 2000kg Packaged Drinking Water Filling Machine 1

Bottled water plant machinery:
1. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
2. (Water Filtration) RO water purification machine / UF mineral water filtration machine.
3. (Filling water into bottle) Bottle washing filling and capping machine.
4. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine.
5. (Printing the date on the bottle water) Date printing machine.
6. (package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine.

Electrical Appliances Brand :

Electrical Appliances Brand
 10L 1200bph 2000kg Packaged Drinking Water Filling Machine 2  10L 1200bph 2000kg Packaged Drinking Water Filling Machine 3  10L 1200bph 2000kg Packaged Drinking Water Filling Machine 4  10L 1200bph 2000kg Packaged Drinking Water Filling Machine 5
CNP Water Pump Siemens Main Motor Siemens PLC Siemens Inveter
 10L 1200bph 2000kg Packaged Drinking Water Filling Machine 6  10L 1200bph 2000kg Packaged Drinking Water Filling Machine 7  10L 1200bph 2000kg Packaged Drinking Water Filling Machine 8  10L 1200bph 2000kg Packaged Drinking Water Filling Machine 9
Siemens Touch Screen Schneider Circuit Breaker Schneider Contactor Omron Relay
 10L 1200bph 2000kg Packaged Drinking Water Filling Machine 10  10L 1200bph 2000kg Packaged Drinking Water Filling Machine 11  10L 1200bph 2000kg Packaged Drinking Water Filling Machine 12  10L 1200bph 2000kg Packaged Drinking Water Filling Machine 13
Omron Sensor SMC Solenoid Valve SMC Cylinder SMC Air Filter



10L 1200bph 2000kg Packaged Drinking Water Filling Machine 14

10L 1200bph 2000kg Packaged Drinking Water Filling Machine 15

10L 1200bph 2000kg Packaged Drinking Water Filling Machine 16

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

10L 1200bph 2000kg Packaged Drinking Water Filling Machine 17

10L 1200bph 2000kg Packaged Drinking Water Filling Machine 18

After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s visiting maintenance service.



FAQ



Q1: How to find suitable machine or complete beverage production line?
A1: •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.



Q2: Are you a trading company or a manufactory?

A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .



Q3: Do you have technical support after we purchased your machines?

A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.



Q4: If you buy our machines, can you offer us wear-out spare pats?

A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
