Product Details:

Place of Origin: China,Jiangsu
Brand Name: BIEVO
Certification: CE
Model Number: QGF-600

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 9000dollers/set
Packaging Details: wood case
Delivery Time: 10-20working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Type: 5 Gallon Filling Machine Automatic Grade: Automatic
Material: SUS 304 Voltage: Standard
Dimension(L*W*H): 3250*1900*2400mm Weight: 2000KG
Filling Material: Pure Water Filling Valve Head: 4 Heads
Bottle Shape: 5 Gallon Barrel/20L Barrel Core Components: PLC Control
Filling Accuracy: ±1% Certification: CE, ISO
Condition: New Key Selling Points: Full Automatic
Bottle Size: 3gallon -5gallon Function: Bottle Water Filling Machine
Control System: Plc+touch Screen Workshop Layout: Free Design
Application: Beverage Packaging Material: Wood
Driven Type: Electric Machinery Capacity: 600bph
High Light:

ISO9001 5 Gallon Water Filling Machine

,

2400mm 5 Gallon Water Filling Machine

,

2400mm drinking water filling machine

Product Description

5 gallon bucket water washing filling capping machine 20liter barrel water bottling machine line bottle filler with seal​

2400mm 5 Gallon Water Filling Machine 0

2400mm 5 Gallon Water Filling Machine 1

2400mm 5 Gallon Water Filling Machine 2



2400mm 5 Gallon Water Filling Machine 3



1.This big barrel water filling machine is specially produced 4 5 6 gallons bottled drinking water, whose types(b/h)are:100BPH type, 200BPH type, 300BPH type, 450BPH type, 600BPH type, 900BPH type and 1200 bottles per hour type.

2.The big barrel water filling machine integrates bottle washer, filler and sealer into one unit ,in order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and leaching are used in bottle washer, Washing solution can boused circularly.





This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

BKCC01 Bottle line automatic water filling machine/water filling machine for sale



Details
Cap Decapper
This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth, and increases cap pulling success greatly. 304 stainless machine frame and machine body.



Outer Brusher


Function: clean the external of 5 gallon bottles with brush and water


1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing

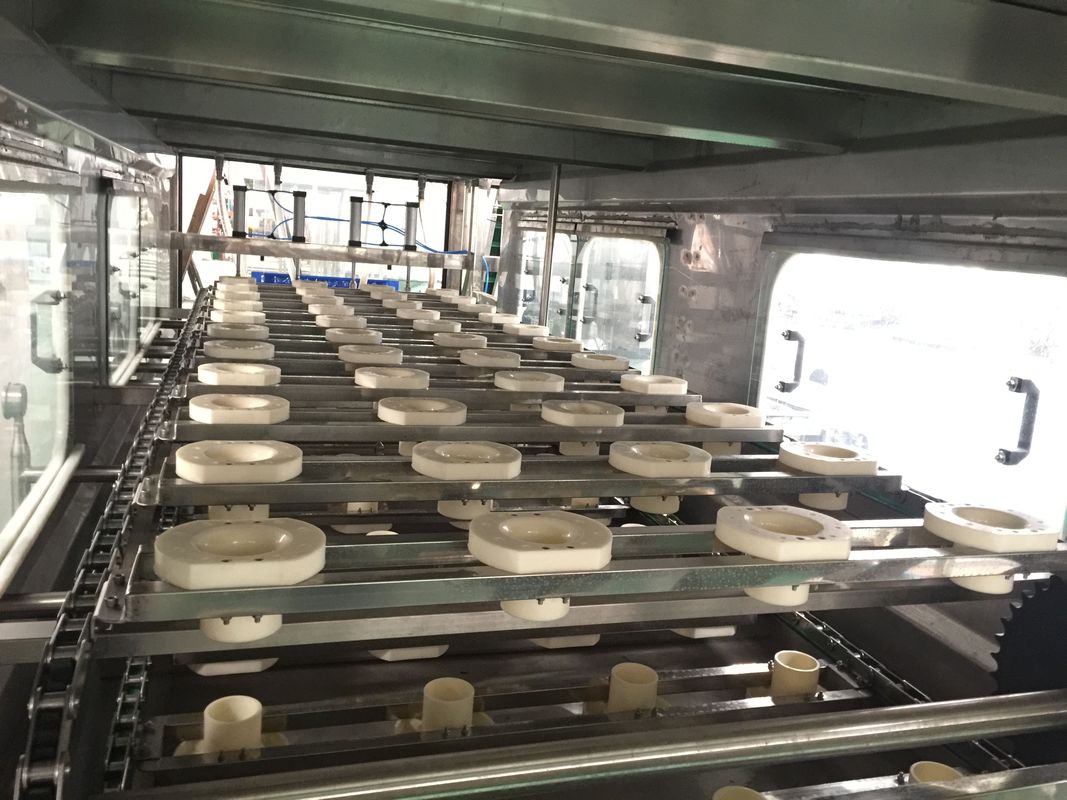

Washing-filling-capping 3-in-1 Monoblock


1. 3-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows



Function: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate

2400mm 5 Gallon Water Filling Machine 4

Model QGF-120 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Filling capacity 3-5gallon 3-5gallon 3-5gallon 3-5gallon 3-5gallon
Barrel size φ270×490 φ270×490 φ270×490 φ270×490 φ270×490
Machine capacity 120bph 300bph 450bph 600bph 900bph
Gas pressure (Mpa) 0.4 0.4 0.6 0.6 0.6

















2400mm 5 Gallon Water Filling Machine 5

2400mm 5 Gallon Water Filling Machine 6

2400mm 5 Gallon Water Filling Machine 7

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

2400mm 5 Gallon Water Filling Machine 8

2400mm 5 Gallon Water Filling Machine 9

Q:Are you a manufacturer or trade company? A:We are a manufacturer in beverage machine field more than 15 years, located at Leyu town,zhangjiagang,2 hours from Shanghai,1 hour from Wuxi by car. We will pick you up to visit our factory. Q:Do you have any certification? A:SGS,ISO,CE Q:What about the delivery time? A:Usually 40 Working days Q:What about the machine’s capacity? A:2000-20000 bottles in 500ml per hour. Q:The after-sale service A:24 months warranty. solve basic questions by telephone, email, whatsapp, wechat and video call. Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Operating manuals will be sent with machine or by email. We also have overseas service center Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle? A:Yes. Q: If I want to buy a machine, what information do I need to tell you, do you need from me? A:a. What kind beverage you want to produce? b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.? c. Producing capacity requirement? How many bottles per hour? d.Raw water analysis report . e.Voltage and altitude. Q:What kinds of product you supply? A: Drink water/juice/carbonated drink filling line. 5 gallon/20L/ can beverage/glass bottle beverage filling line Water treatment system. Bottle blowing making machine. After packing system(label machine, PE film shrink packing machine, carton machine)

2400mm 5 Gallon Water Filling Machine 10

Free 2D & 3D Bottle Design

Our Machine can fit bottle size from 100ml ~ 2000ml Bottle / 3L ~10L Bottle 10~25L Bottle

And three size of bottle fitting parts for free



Free Layout Plant Design

Every Factory are different and unique , We will special design the layout according to your factory , supply the best beverage package solution for you.



Free Spare Parts

All Reliable Machine will be supply One year Spare parts for Free . High Quality Parts ensure the stable of machine’s running.
