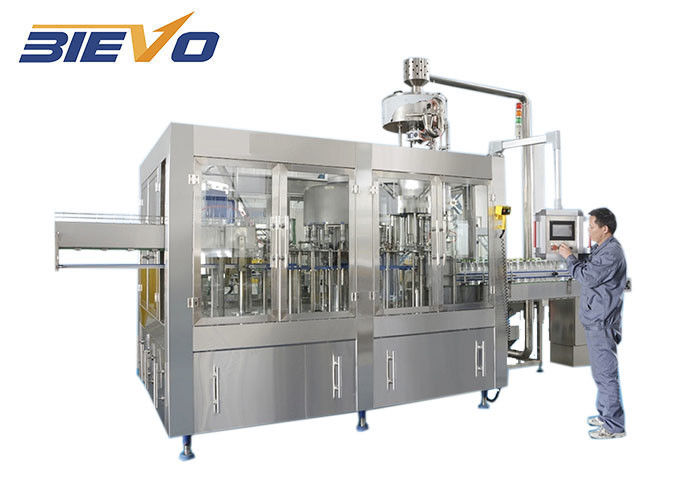

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph

  • High Light

    2000bph Bottle Water Production Line

    ,

    Liner Type Water Filling Machine

    ,

    500ml Bottle Water Production Line

  • Type
    Rinsing, Filling And Capping Machine
  • Automatic Grade
    Automatic
  • Material
    SUS 304/ SUS 316
  • Voltage
    220V / 380V / 415V
  • Dimension(L*W*H)
    3500*1800*2200 Mm
  • Weight
    3000KG
  • Filling Material
    Mineral Water /pure Water
  • Filling Valve Head
    12
  • Bottle Shape
    Round Or Square
  • Core Components
    Pump, PLC
  • Filling Accuracy
    99.9%
  • Key Selling Points
    Full Automatic
  • Bottle Size
    200-2500ml
  • Function
    Bottle Water Filling Machine
  • Control System
    Plc+touch Screen
  • Workshop Layout
    Free Design
  • Application
    Water Filling
  • Packaging Material
    Wood
  • Driven Type
    Electric
  • Machinery Capacity
    1000-2000BPH
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    CGF12-12-1
  • Minimum Order Quantity
    1set
  • Price
    9000dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    20-30working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph

1000-2000bph 500ml Liner Type Water Filling Machine In Hot Sale

1000-2000BPH separate type 12-12-1 mineral water pure water bottle filling machine



Introduction of Bottle Water Production Line



The water filling machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine. The whole process is automatic. The water filling machine is used in filling mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine tofill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.



500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 0

Model CGZ12-12-1 CGZ8-8-3 CGZ12-12-6 CGZ18-18-6 CGZ24-24-8 CGF32-32-8 CGF40-40-12
Capacity 1000-2000bph 2000BPH 4000BPH 8000BPH 12000BPH 15000BPH 20000BPH
Applicable bottle type Bottle diameter:50-100mm; height:150-320mm;Volume:330-1500ml
Applicable bottle shape Plastic Screw cap
Gas pressure 0.6 0.6 0.6 0.6 0.6 0.6 0.6
Motor power 2.3 2.3 3.1 3.5 3.8 3.8 4.2
Pressure 2-3kg/cm2
Machine size   2.2*1.8*2.3 m 2.45*1.65*2.1m 2.6*1.8*2.1m 3*2.2*2.4m 4*2.2*2.4m 4.1*2.782.6m
Weight   1800kg 2000kg 2500kg 4200kg 4800kg 5000kg





























Bottle Water Washing Filling Capping Machine
model output
12-12-1 1000-2000bph
8-8-3 2000-3000bph
16-12-6 4000-5000bph
18-18-6 6000-7000bph
24-24-8 8000-9000bph
32-32-10 10000-12000bph





500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 1

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 2



500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 3

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 4

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 5

Bottled water plant machinery characteristic:

1.Intelligent contact screen, human design, easy operation.

2.Imported filling valve, avoiding drop leaking, accurate filling quantity.
3.Program logic controller(PLC), easy for changing size or modifying parameters.
4.Pneumatic elements are all imported, stability and reliability.
5.Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters
6.Solely and specially-designed whole lifting device, easy governing to meet the needs of all kinds of container packing

Choose your production output per hour:

12-12-1 Bottle Water Washing Filling Capping Machine,Production:1000-2000 bottles per hour.
8-8-3 Bottle Water Washing Filling Capping Machine,Production:2000-3000 bottles per hour.
16-12-6 Bottle Water Washing Filling Capping Machine,Production:4000-5000 bottles per hour.
18-18-6 Bottle Water Washing Filling Capping Machine,6000-7000 bottles per hour.
24-24-8 Bottle Water Washing Filling Capping Machine,8000-9000 bottles per hour.
32-32-10 Bottle Water Washing Filling Capping Machine,10000-12000 bottles per hour.

40-40-10 Bottle Water Washing Filling Capping Machine,13000-15000 bottles per hour.

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 6



500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 7

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 8

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 9

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 10

500ml Bottle Liner Type Water Filling Machine 1000 - 2000bph 11

Q1: Where is your factory? How can I visit there?

A1: Our location is No.66, Baixiong Road, Sanxing Town, Zhangjiagang City, Jiangsu Province, China
Our factory is nearby from Shanghai City, if you fly from abroad, we can pick you up at the airport.

Q2: What's your payment stipulation?
A2: Our standard payment is 30% of the total amount for deposit, pay the balance before the shippment. For the others,
we can further discuss.

Q3: Do you have technicians for installation?
A3: We are responsible for the installaion in your country, you can also arange your staffs to our factory to learn how to operate the complete line.
