18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH

18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH

Product Details:

Place of Origin: China,Jiangsu
Brand Name: BIEVO
Certification: CE
Model Number: QGF-600

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 12000dollers/set
Packaging Details: wood case
Delivery Time: 10-20working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Type: 5 Gallon Filling Machine Automatic Grade: Full Automatic
Material: SUS 304 Voltage: 220V / 380V / 415V
Dimension(L*W*H): 3250*1900*2400mm Weight: 2000KG
Filling Material: Mineral Water Or Pure Water Filling Valve Head: Multi-Head
Bottle Shape: 19liter /20liter Barrel /5 Gallon Barrel Core Components: Pump, PLC
Filling Accuracy: 99.9% Certification: CE, ISO 9001:2008
Condition: New Key Selling Points: Full Automatic
Bottle Size: 3gallon -5gallon (Customized) Function: Bottle Water Filling Machine
Control System: Plc+touch Screen Workshop Layout: Design As Customer's Workshop Size
Application: Washing, Filling And Capping 5 Gallon Barrel Packaging Material: Wood
Driven Type: Electric Machinery Capacity: 600bph
High Light:

600BPH Barrel Water Filling Machine

,

600BPH 5 Gallon Bottle Filling Machine

,

Multi Head 5 Gallon Bottling Machine

Product Description

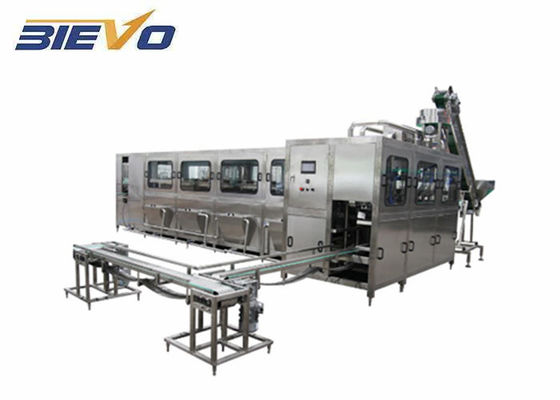

600BPH 18.9/20L 5 Gallon Water Filling Production Line/ Barrel Water Filling Machine



600BPH 5 gallon 20L bottle water filling machine/18.9L jar water filling production line/ barrel water filling machine



Product Introduction :

This 5 gallon bottle filling machine is specially designed to fill the purified water and the distilled water, mineral water and other bacteria free liquids.

The 18.9L bottle filling equipment is applied with 5GAL bottles (bottles of 1,2,3,4 and 6GAL can also be applied, but the sample bottle shall be provided.) .

As the equipment integrates the processes of bottle washing, filling, lid mounting, lid pressing and finished product delivering, it is the ideal choice of water plants.

Suit for bottle size:1-6 gallon bottle

Filling speed:60BPH-1200BPH

Bottle material:plastic



Functions
1. High safety operation: automatic break protection for power leakage and short circuit;
2. Under-pressure protection: when the pressure of incoming air is 0.5MPa, the filling equipment will automatically stop;
3. Water-shortage protection: when the level of the water tank is lower than that of the liquid switch, the 5 gallon filling machine will stop working automatically.

Advantages:

1.) The machine integrates rinser, filler and capper together.

2.) The machine is of stainless steel, resisting corrosion and easy to clean.

3.) The main electrical components and gas circuit elements are all of international brand.

4.) Water pump is Nanfang, Hangzhou (Grundfos is available)

5.) Nozzle is of America’s Spraying System Company’s technology.



Details Informations:


Cap Decapper
This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth, and increases cap pulling success greatly. 304 stainless machine frame and machine body.



Outer Brusher


Function: clean the external of 5 gallon bottles with brush and water


1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing

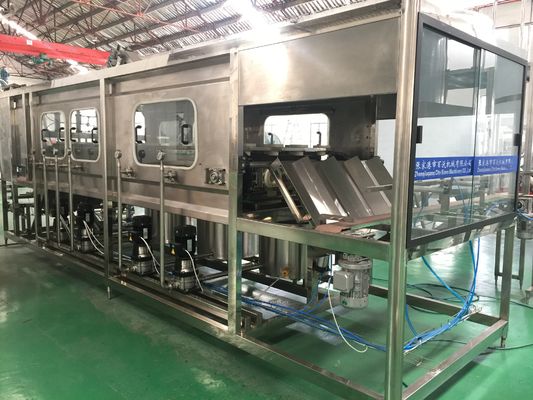

Washing-filling-capping 3-in-1 Monoblock

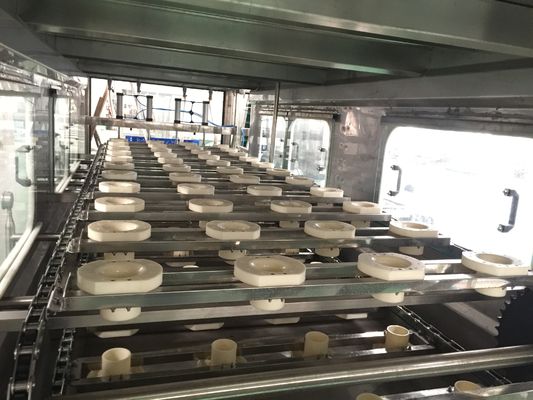

1. 3-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows



Function: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate

18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH 0

Model QGF-120 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Filling capacity 3-5gallon 3-5gallon 3-5gallon 3-5gallon 3-5gallon
Barrel size φ270×490 φ270×490 φ270×490 φ270×490 φ270×490
Machine capacity 120bph 300bph 450bph 600bph 900bph
Gas pressure (Mpa) 0.4 0.4 0.6 0.6 0.6

18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH 1



18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH 2



18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH 3



18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH 4

18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH 5

18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH 6

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH 7

18.9 / 20L Barrel 5 Gallon Bottle Filling Machine 600BPH 8

Q1: Where is your factory? How can I visit there?

A1: Our location is No.66, Baixiong Road, Sanxing Town, Zhangjiagang City, Jiangsu Province, China
Our factory is nearby from Shanghai City, if you fly from abroad, we can pick you up at the airport.

Q2: What's your payment stipulation?
A2: Our standard payment is 30% of the total amount for deposit, pay the balance before the shippment. For the others,
we can further discuss.

Q3: Do you have technicians for installation?
A3: We are responsible for the installaion in your country, you can also arange your staffs to our factory to learn how to operate the complete line.
