• 380V Carbonated Soft Drink Filling Machine 5000bph 24heads
  • 380V Carbonated Soft Drink Filling Machine 5000bph 24heads
  • 380V Carbonated Soft Drink Filling Machine 5000bph 24heads
  • 380V Carbonated Soft Drink Filling Machine 5000bph 24heads
  • 380V Carbonated Soft Drink Filling Machine 5000bph 24heads
380V Carbonated Soft Drink Filling Machine 5000bph 24heads

380V Carbonated Soft Drink Filling Machine 5000bph 24heads

Product Details:

Place of Origin: China,Jiangsu
Brand Name: BIEVO
Certification: CE
Model Number: BCG24-24-6

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 24000dollers/set
Packaging Details: wood case
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Type: Cola Bottling Filling Machine Name: Carbonated Soft Drink Filling Machine Production Line
Capacity: 5000BPH Bottle Type: PET Plastic Bottle
Filling Material: Beer, Carbonated Soft Drink Soda Beverage Bottle Size: 200-2000ML
Key Selling Points: High Productivity Voltage: 220V/380V/415V
Filling Range: 200ML,330ML,500ML,600ML,1000ML,1500ML,2000ML Automatic Grade: Automatic
Packaging Type: Bottles Control: SIEMENS Mittisubishi
Electric Parts: Schneider Function: Bottle Washing Filling Capping
Marketing Type: Easy To Operate Condition: New
Filling Type: Isobaric Filling Washing Heads: 24Heads
Filling Heads: 24Heads Capping Heads: 6Heads
High Light:

5000bph Carbonated Drink Filling Machine

,

Carbonated Soft Drink Filling Machine 380V

,

Carbonated Soda Bottling Machine

Product Description

5000bph 24heads 380V Free Spare Parts Carbonated Soft Drink Filling Machine



5000BPH carbonated soft co2 soda water beverage drink filling machine



Product Description:

Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine

1) Food-grade stainless steel 304 for the washing, filling, capping unit, the pipe, fittings and other part in contact with product, meet the food industry standard.
2) PLC automatic control with world famous brands like Mitsubishi, Siemens, Omron, etc., good stability.
3) Easy machine operation by using the touch screen like Weinview or Siemens.
4) Standard machine parts, easy to do maintenance work, greatly reduce the maintenance costs and improve work efficiency.
5) Emergency stop and other safety features provide unparallel operator safety.
6) All parts and service plans available.


Technical Parameters:

Model (BCGF)
18/18/6
24/24/6
32/32/8
40/40/12
50/50/12
Washing heads
18
24
32
40
50
Filling heads
18
24
32
40
50
Capping heads
6
6
8
12
12
Capacity (BPH)
3500
5000
8000
12000
16000
Power(kw)
3.5
4.5
6
7.5
9.5
Dimension (mm)
2600*1920
3100*2300
3800*2500
4600*2800
5450*3300
*2550 *2800 *2900 *2900 *2900
Weight(kg)
3500
4500
5600
8500
9800

Machines Details :

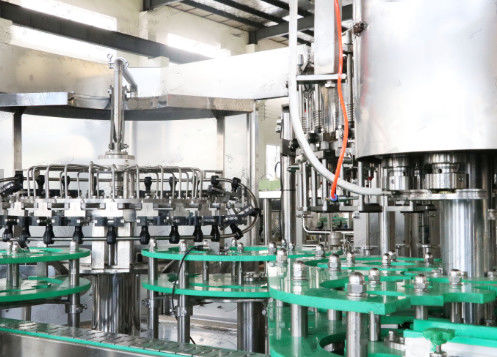

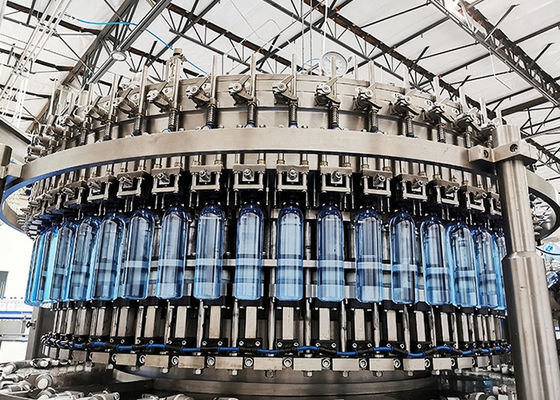

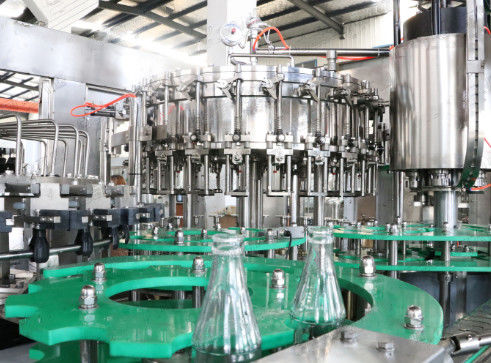

3 IN 1 Carbonated Soft Drinks Filling Machine



380V Carbonated Soft Drink Filling Machine 5000bph 24heads 0

380V Carbonated Soft Drink Filling Machine 5000bph 24heads 1

380V Carbonated Soft Drink Filling Machine 5000bph 24heads 2

380V Carbonated Soft Drink Filling Machine 5000bph 24heads 3

In the field of PET bottled carbonated soft drink, although the design of packaging PET bottles varies in size and height, the TIE team has integrated the filling and packaging technology of Europe and China, and continuously optimized, and developed a series of suitable PET bottles. Modular equipment for bottles, for PET bottles of different capacities, shapes and characteristics.
The production line includes: raw water filtration, CSD preparing and mixing system, bottled CSD filling, labeling, coding, film packaging and palletizing, etc. It can conveniently adjust the production line according to different bottle types, capacity and output requirements, and realize fully automated production. The core equipment is the CSD series filling machine. This model breaks the norm and improves irrigation capacity by at least 15% compared to competitors. The new filling system increases the carbonated soft drink filling speed by 10%-15% than before. The new capping system makes the capping seal stable and not easy to break.

Washing Part:

380V Carbonated Soft Drink Filling Machine 5000bph 24heads 4

Rotary type bottle washing machine, mainly used to wash bottles for drinking water and other beverage. New bottles go into the machine through air conveyor. Bottles are held by grips and turned over onto washing heads. After washing and drain water, bottles go into filling parts by star wheel. Main structure, protect shell and contact water part of washing part are all stainless steel.

Filling Part :
380V Carbonated Soft Drink Filling Machine 5000bph 24heads 5

Filling machine adopt German technology, produce by gravity filling and obey to normal pressure filling principle.Main drives adopt mechanical freestanding gear, high efficiency, low noise, long service life, easy to maintain, lubricate well. Frequency converter controls the main motor and makes the machine speed changeable.

Capping Part :
380V Carbonated Soft Drink Filling Machine 5000bph 24heads 6

Capping machine drives revolved plate by gear. Cap goes out of cap storage by centrifugal effect. At the cap output, there is cap divider. Reverse cap drops into pipes then return to cap storage by air conveyor. Right cap goes into conveyor. The quantity inspected by sensor, capping machine control the cap conveyor. The machine will stop when no caps.

Electrical Brand List
AC Contactor
SIEMENS (GERMANY)
Thermal overload relay
SIEMENS (GERMANY)
PLC
SIEMENS (GERMANY)
Touch Screen
SIEMENS (GERMANY)
Converter
SIEMENS (GERMANY)
Power Switch
SIEMENS (GERMANY)
Intermediate Relay


SCHNEIDER (FRANCE)

380V Carbonated Soft Drink Filling Machine 5000bph 24heads 7

380V Carbonated Soft Drink Filling Machine 5000bph 24heads 8

380V Carbonated Soft Drink Filling Machine 5000bph 24heads 9

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

380V Carbonated Soft Drink Filling Machine 5000bph 24heads 10

380V Carbonated Soft Drink Filling Machine 5000bph 24heads 11

Q1: Can you provide more information about this product, and quote the best price?
A: Sure, please contact us via any methods showed on this page, and we will send our product catalog, company profile for your reference.What's more, we will customize detailed offer according to your specific requirements.



Q2: The price is a little higher than my budget. Can you offer a better price?
A: The first proposal is preliminary design, as a professional buyer; pls don't only focus on the price. If you have any question or request, pls don't hesitate to contact us. Then we will adjust the configuration and quality according to your request. Your feedback will lead us to make the proposal to match your request.



Q3: What else need to be paid attention besides price?
A: except for the price, we also need pay attention to quality, product construction, design principle, configuration of part list, reasonability, convenience of operation, professional, service and etc.



Q4: Can you provide turnkey project service?
A: Yes, of course, we can provide the full set of turnkey project service to you.





380V Carbonated Soft Drink Filling Machine 5000bph 24heads 12

1. Installation & debugging
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.


2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The quality,specification and function all meet the demand of contract.

4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
