1) Material of filling valve: Stainless steel SUS304.
2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.
3) Main motor: ABB/SEW/SIEMENS.
4) Sliding bearing: Igus.
5) Frequency inverter: Mitsubishi.
6) Touch screen: PROFACE.
7) PLC: Siemens/Mitsubishi.
8) Pneumatic components: FESTO/AIRTAC.
9) Seals: Busak+Shamban.
10) Photocell switch and proximity switch: TURCK
 |

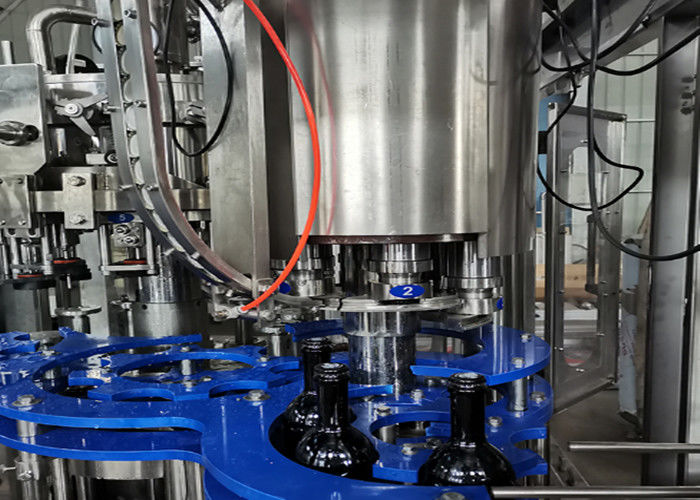

Glass Bottle Carbonated Soft Drink Filling Machine Glass Bottle with Crown Cap
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | BCG24-24-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 28000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Bottle Filling Machine | Name: | Glass Bottle Beer Filling Machine |
|---|---|---|---|
| Capacity: | 5000BPH | Bottle Type: | Glass Bottle Crown Cap |
| Filling Material: | Beer Or Carbonatd Drinks | Bottle Size: | 200-2500ml (Customized) |
| Machine Size: | 3100*2300*2800mm | Weight: | 4500KG |
| Filling Temperature: | 2~4degree | Advantage: | High Effective |
| Machines Material: | Stainless Steel SUS 304/316L | Control: | SIEMENS |
| Electric Parts: | Schneider | Function: | Glass Bottle Beer Filling And Packing |
| Marketing Type: | Easy To Operate | Condition: | New |
| Filling Type: | Isobaric Filling | Washing Heads: | 24Heads |
| Filling Heads: | 24Heads | Capping Heads: | 6Heads |
| High Light: | Crown Cap Carbonated Drink Filling Line,Crown Cap Carbonated Drink Filling Line,Glass Bottle Beer Filling Machine |
||
Product Description
Glass Bottle Crown Cap Carbonated Soft Drink Filling Machine
Professional Manufacture Small Automatic Glass Bottle Beer Filling Machine
Product Description:
Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine
Glass bottle three-in-one filling unit. This machine is suitable for the filling and sealing of glass bottle crown cap, aluminum screw cap, triple screw cap or four screw cap container. It is suitable for various beverages such as beer, wine, etc, can be selected according to the actual requirements of the user atmospheric pressure filling valve or negative pressure filling valve or isostatic filling, the machine is a normal pressure liquid surface filling, liquid level Height adjustable.
Main configuration:
Technical Parameters Of Carbonated Soda Water Filling Machine :
|
Model (BCGF)
|
24/24/6
|
32/32/8
|
40/40/12
|
|
Washing heads
|
24
|
32
|
40
|
|
Filling heads
|
24
|
32
|
40
|
|
Capping heads
|
6
|
8
|
12
|
|
Capacity (BPH)
|
5000
|
8000
|
12000
|
|
Power(kw)
|
4.5
|
6
|
7.5
|
|
Dimension (mm)
|
3100*2300
|
3800*2500
|
4600*2800
|
| *2800 | *2900 | *2900 | |
|
Weight(kg)
|
4500
|
5600
|
8500
|
Machines Details :
3 IN 1 Carbonated Soft Drinks Filling Machine
Out Look:
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system
Washing Part:
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.

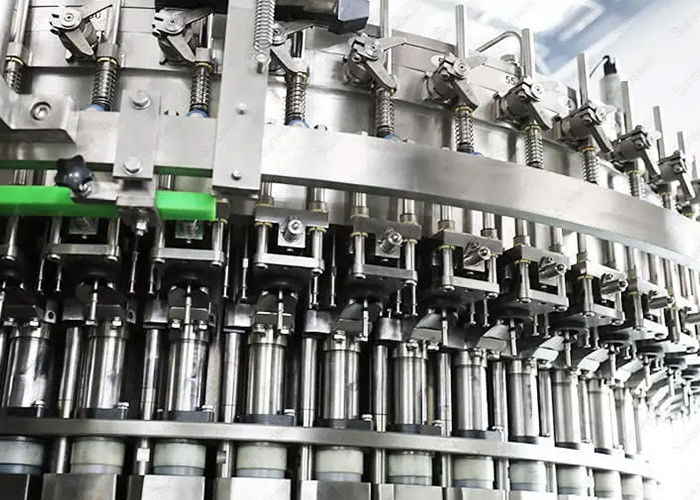

Filling Part :
The three-in-one unit completes the three processes of bottle washing, filling and capping at one time, with little bottle wear, accurate and stable transmission, and convenient bottle type replacement. * The specially designed all-stainless steel bottle washer bottle clamp is sturdy and durable, and does not touch the threaded part of the bottle mouth to avoid secondary pollution of the bottle mouth. * High-speed and large-flow gravity filling valve, fast filling speed, accurate liquid level without liquid loss.
Capping Part :
* All parts in contact with liquid are made of high-quality stainless steel materials or food-grade engineering plastics, which meet the national food hygiene standards. * The bottle bottom support plate of the bottle output wheel adopts a spiral descending method, and the height of the bottle conveyor chain is not required to change the bottle shape.
| Technical Partment Of Carbonated Soda Water Filling Machine | |||
|
S/N
|
Name
|
Brand
|
Country
|
|
1
|
Main motor
|
ABB
|
Switzerland
|
|
2
|
Inverter
|
MITSUBISHI
|
Japan
|
|
3
|
PLC
|
OMRON
|
Japan
|
|
4
|
Touch screen
|
MITSUBISHI
|
Japan
|
|
5
|
Contactor
|
SCHNEIDER
|
France
|
|
6
|
Thermo- relay
|
SCHNEIDER
|
France
|
|
7
|
Air-break switch
|
SCHNEIDER
|
France
|
|
8
|
Proximity switch
|
TURCK
|
USA
|
|
9
|
Photoelectric switch
|
BANNER
|
USA
|
|
10
|
Air circuit system
|
SMC
|
Japan
|
|
11
|
Water pump
|
Southern
|
China
|
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
1. Can your factory provide he whole plant from A to Z?
Yes, we can provide the complete plant, from bottling making plant,water purification plant,to filling packing plant.
2. Are all machinery your factory made?
Our factory make the water purification and filling packing plants.we do not make the bottle making machinery,we have good quality bottle making machinery partner,and we provide to customer same long warranty time and good after service.
3. How can I know the machinery quality before i order?
First,we will invite you visiting our factory to check the machines quality,and show the machines running for you in our factory.
4. What certificates you can provide?
Our factory provide the CE,SGS,ISO,and according to some countries,we also can provide the PVOC, COC,SONCAP...etc.
