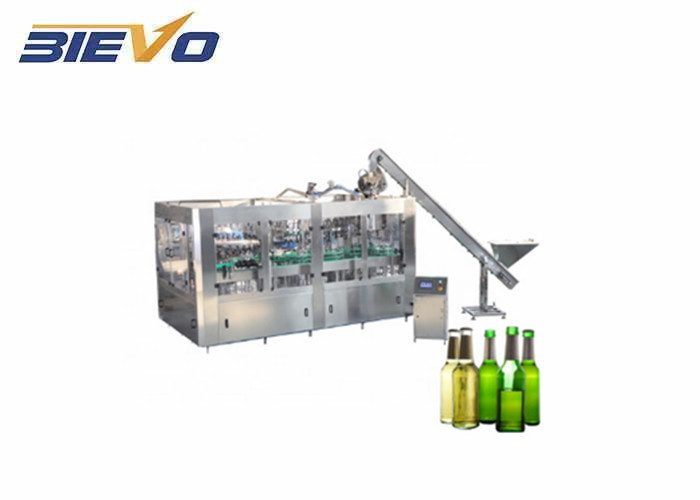

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph

  • High Light

    ROPP Carbonated Drink Filling Machine

    ,

    ROPP Carbonated Soft Drink Filling Machine

    ,

    12000bph Carbonated Drink Filling Machine

  • Type
    Glass Bottle Soda Water Filling Machine
  • Name
    Soda Water Filling Machinery
  • Capacity
    12000BPH
  • Bottle Type
    Glass Bottle
  • Filling Material
    Coke Type
  • Bottle Size
    200-2000ML
  • Key Selling Points
    High Precision
  • Voltage
    Standard
  • Filling Range
    200-2000ML
  • Automatic Grade
    Full Automatic
  • Control
    SIEMENS Mittisubishi
  • Electric Parts
    Good Brand
  • Function
    3 In 1
  • Marketing Type
    Easy To Operate
  • Condition
    New
  • Filling Type
    Isobaric Filling
  • Workshop Layout
    200-500 Square Meters
  • Driven Type
    Electric And Pneumatic
  • Brand Name
    Bievo
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    DGZ40-40-12
  • Minimum Order Quantity
    1set
  • Price
    68000dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    30 working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph

12000bph High Quality Glass Bottle ROPP Carbonated Soft Drink Filling Machine



Product Description:

Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine

The empty bottle passes through the bottle loading platform and conveyor, and then enters the three-in-one machine through the screw feeder. After passing through the flushing system, the bottle is flushed upside down with sterile water through the bottle flushing clip. The last two workers of the flushing station. The bottle is sprayed with sterile air, rinsed with sterile water and sprayed with air to ensure that the residual water inside the bottle does not exceed the capacity of a drop of water.

Empty bottles pass through the center dial to reach the bottle rotary turntable of the filling machine, which reduces the exposure time of the empty bottles after cleaning to the air, and then rises in the bottle holding device, passes through the control ring, and seals the bottle mouth and the filling valve.



Then open the valve to start filling, and the material starts to be injected into the packaging bottle. When the liquid level of the material in the bottle reaches the position of the return pipe, the return pipe of the filling valve starts to return liquid, and when it reaches the de-bottle position, the bottle holding device descends and closes the valve. , off the bottle.

Advantages:

High Hygiene Rinsing
304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during rinsing.

High precision valve
304/316 Stainless steel high precision filling nozzle.



Reduced changeover down-times
Quick changeover for packages with different diameters.

Adjustable Capping Strength
Adjustable magnetic powered capping device ensures tightness and prevents damage of the cap.

Technical Parameters:

Model (BCGF)
18/18/6
24/24/6
32/32/8
40/40/12
Washing heads
18
24
32
40
Filling heads
18
24
32
40
Capping heads
6
6
8
12
Capacity (BPH)
3500
5000
8000
12000
Power(kw)
3.5
4.5
6
7.5
Dimension (mm)
2600*1920
3100*2300
3800*2500
4600*2800
*2550 *2800 *2900 *2900
Weight(kg)
3500
4500
5600
8500

Machines Details :

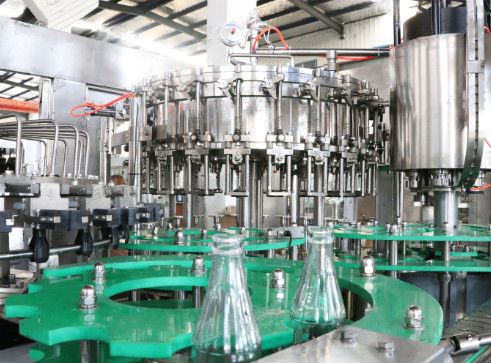

3 IN 1 Carbonated Soft Drinks Filling Machine

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 0

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 1



Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 2

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 3

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 4

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 5

Capping method:
Crown capper / Ropp capper

Bievo glass bottles are designed to be sealed exactly – with a metal pry off cap, a Roll On Pilfer Proof (ROPP) cap, or a standard (non pilfer proof) twist top cap. Our bottles can also be corked, and a swing top cap option is also available, as is a child resistant cap for customers with this requirement.






Beverage Mixer

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 6



Spray tunnel

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 7

Electrical Brand List
AC Contactor
SIEMENS (GERMANY)/Other high-end brand
Thermal overload relay
SIEMENS (GERMANY)/Other high-end brand
PLC
SIEMENS (GERMANY) /Other high-end brand
Touch Screen
SIEMENS (GERMANY) /Other high-end brand
Converter
SIEMENS (GERMANY) /Other high-end brand
Power Switch
SIEMENS (GERMANY) /Other high-end brand
Intermediate Relay


SCHNEIDER (FRANCE)/Other high-end brand

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 8

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 9

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 10



Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 11

Glass Bottle ROPP Carbonated Soft Drink Filling Machine 12000bph 12

We are proud to adhere to our company slogan "Engineering Excellence".Quality of products is the life of Beyond, customers satisfaction is our emphasis of work. Repeat orders from old customers are our standard to measure the users experience.



Warranty: 12 months

Warranty for motors: 12 months





In the warranty period:

In order to provide customers improve and thoughtful service, eliminating the customer's worries. Our company has established a perfect after-sales service system and effective after-sales service measures, and through a dedicated hotline after-sales service to provide users with satisfactory answers to questions and technical support; and has a service department to conduct regular customer visits. The company currently has more than 10 professional service engineers as a strong after-sales service team, ask your service to provide protection. Our company to you to make subordinate repair service commitment, and in accordance with the requirements of the service commitment to provide you with maintenance services.



FAQ

Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.


Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If
needed.Or you can arrange engineers to study in our factory. You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units tosave international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
