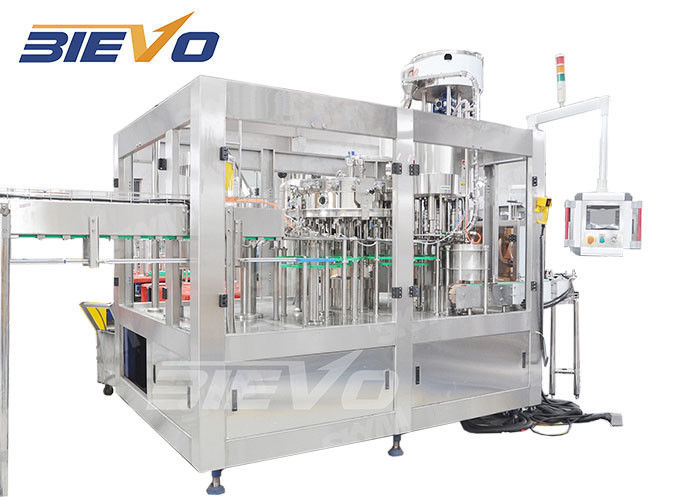

8000bph 200ml 380V Carbonated Soft Drink Filling Machine
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | BCG32-32-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 21800dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Filling Machine | Name: | Carbonated Drink Filling Line |
|---|---|---|---|
| Capacity: | 8000BPH | Bottle Type: | Glass Bottle |
| Filling Material: | Beer, Water, Soft Drink | Bottle Size: | 200-2000ML |
| Key Selling Points: | High Productivity | Voltage: | 380V/3 Phase |
| Automatic Grade: | Automatic | Packaging Type: | Bottles |
| Application: | Beverage | Operation: | Touch Screen ,Plc |
| Function: | Bottle Washing Filling Capping | Marketing Type: | New Product 2020 |
| Certification: | CE, ISO 9001:2008 | Condition: | New |
| Filling Type: | Under Pressure Filling | Workshop Layout: | Free Design |
| Driven Type: | Electric | Brand Name: | Bievo |
| High Light: | 380V Carbonated Soft Drink Filling Machine,8000bph Carbonated Soft Drink Filling Machine,8000bph soft drink bottling equipment |
||
Product Description
8000BPH Glass Bottle soft drink making filling production Carbonated Water Making Machine
Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine
2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.
6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.
Technical Parameters:
|
Model (BCGF)
|
2014/12/5
|
18/18/6
|
24/24/6
|
32/32/8
|
40/40/12
|
50/50/12
|
|
Washing heads
|
14
|
18
|
24
|
32
|
40
|
50
|
|
Filling heads
|
12
|
18
|
24
|
32
|
40
|
50
|
|
Capping heads
|
5
|
6
|
6
|
8
|
12
|
12
|
|
Capacity (BPH)
|
2000
|
3500
|
5000
|
8000
|
12000
|
16000
|
|
Power(kw)
|
2.2
|
3.5
|
4.5
|
6
|
7.5
|
9.5
|
|
Dimension (mm)
|
2400*1600
|
2600*1920
|
3100*2300
|
3800*2500
|
4600*2800
|
5450*3300
|
| *2500 | *2550 | *2800 | *2900 | *2900 | *2900 | |
|
Weight(kg)
|
2500
|
3500
|
4500
|
5600
|
8500
|
9800
|
Machines Details :

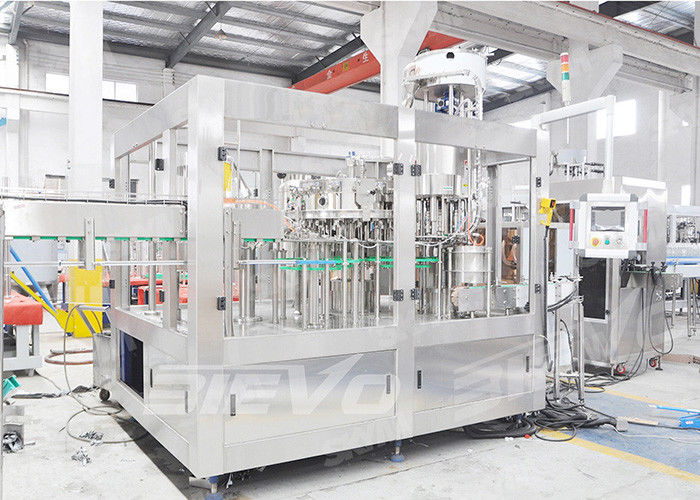

3 IN 1 Carbonated Soft Drinks Filling Machine
Out Look:
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system
Washing Part:
1) Into bottle way is flat conveyor cooperated with bottle feeding screw.
2) All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
4) 304/316 stainless steel washing pump make the machine more durable .
3) All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5) Efficient spray nozzle rinse thoroughly and save water for flushing
1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2) All 304/316 stainless steel construction
3) No bottle no capping
4) Automatic stop when lack of bottle
5) Capping effect is stable and reliable ,Defective rate ≤0.2% .
|
Electrical Brand List
|
|
|
AC Contactor
|
SIEMENS (GERMANY) |
|
Thermal overload relay
|
SIEMENS (GERMANY)
|
|
PLC
|
SIEMENS (GERMANY) |
|
Touch Screen
|
SIEMENS (GERMANY) |
|
Converter
|
SIEMENS (GERMANY) |
|
Power Switch
|
SIEMENS (GERMANY) |
|
Intermediate Relay
|
SCHNEIDER (FRANCE) |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Q1: Where is your factory? How can I visit there?
1. Installation & debugging
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The quality,specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
