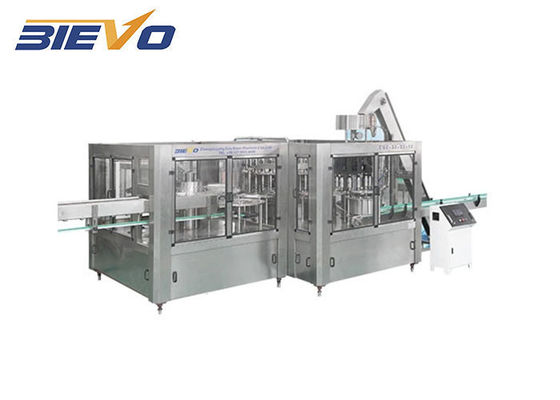

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment

  • High Light

    5000bph Small Scale Soda Bottling Equipment


    380V Small Scale Soda Bottling Equipment


    5000bph soda bottling machine

  • Type
    Carbonated Soft Drink Filling Machine
  • Name
    Carbonated Soft Drink Production Line
  • Capacity
  • Bottle Type
    PET Plastic Bottle
  • Filling Material
    Beer, Water, Soft Drink
  • Bottle Size
  • Key Selling Points
    High Productivity
  • Voltage
  • Carbonated Soft Drink Production Line
  • Advantage
    Automatic Work
  • Machines Material
    Stainless Steel SUS 304/316L
  • Control
    SIEMENS Mittisubishi
  • Electric Parts
  • Function
    Bottle Washing Filling Capping
  • Marketing Type
    Easy To Operate
  • Condition
  • Filling Type
    Isobaric Filling
  • Core Components
    Motor, Pump, PLC, Bearing, Valve
  • Driven Type
  • Brand Name
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    wood case
  • Delivery Time
    30 working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment

5000BPH Carbonated Soft Drink Production Line Gas Beverage And Carbonated Soft Drink Production Line

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 0

Product Description:

Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine

1. This kind of carbonated beverage filling machine combines washing,filling and rotary capping functions in one unit.It is a fully automatic and high efficiency liquid packing equipment.
2. carbonated beverage filling machine is suitable for packing beverage containing gas. carbonated beverage filling machine 's performance is as following all parts,for instance, filling valve, which directly contact medium are made of stainless steel or harmless material. So it conforms to the requirements of Food sanitation. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilization at high temperature.
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. The cylinder drive the valve the movements is accurate and reliable. High-throughput, high-precision filling valve, filling fast and accurate. Equipped the CIP loop and control procedures, the equipment is easy to clean.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Using the programmable controller as control centers; using pressure transmitter, electromagnetic measurement to maintain the balance of liquid surface so as to ensure the stability of liquid.

Technical Parameters:

Model (BCGF)
Washing heads
Filling heads
Capping heads
Capacity (BPH)
Dimension (mm)
*2800 *2900 *2900 *2900

Machines Details :

3 IN 1 Carbonated Soft Drinks Filling Machine

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 1

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 2

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 3

Out Look:

> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system

Washing Part:

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 4

Rotary type bottle washing machine, mainly used to wash bottles for drinking water and other beverage. New bottles go into the machine through air conveyor. Bottles are held by grips and turned over onto washing heads. After washing and drain water, bottles go into filling parts by star wheel. Main structure, protect shell and contact water part of washing part are all stainless steel.

Filling Part :
SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 5

Filling machine adopt German technology, produce by gravity filling and obey to normal pressure filling principle.Main drives adopt mechanical freestanding gear, high efficiency, low noise, long service life, easy to maintain, lubricate well. Frequency converter controls the main motor and makes the machine speed changeable.

Capping Part :
SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 6

Capping machine drives revolved plate by gear. Cap goes out of cap storage by centrifugal effect. At the cap output, there is cap divider. Reverse cap drops into pipes then return to cap storage by air conveyor. Right cap goes into conveyor. The quantity inspected by sensor, capping machine control the cap conveyor. The machine will stop when no caps.

Electrical Brand List
AC Contactor
Thermal overload relay
Touch Screen
Power Switch
Intermediate Relay


SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 7

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 8

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 9

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 10

SUS 304 380V 5000bph Small Scale Soda Bottling Equipment 11

1. Installation & debugging
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.

2. Training
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The quality,specification and function all meet the demand of contract.

4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
