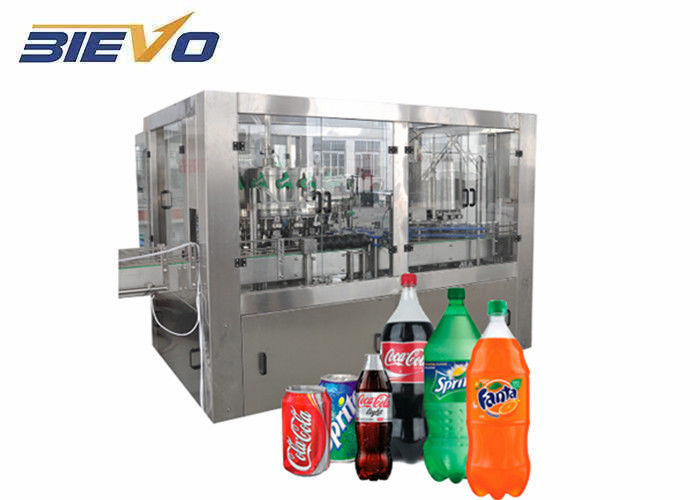

3000bph CE 330ml Carbonated Soft Drink Filling Machine
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | DGZ18-18-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 26000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Soda Water Filling Machine | Name: | Carbonated Drink Making Machine |
|---|---|---|---|
| Capacity: | 3000BPH | Bottle Type: | PET Bottle |
| Filling Material: | Gas Drink | Bottle Size: | 200-2000ML |
| Key Selling Points: | High Productivity | Voltage: | Standard |
| Filling Range: | 200-2000ML | Automatic Grade: | Full Automatic |
| Control: | SIEMENS Mittisubishi | Electric Parts: | High End Brand |
| Function: | Rinsing Filling Capping 3-in-1 | Marketing Type: | Easy To Operate |
| Condition: | New | Filling Type: | Isobaric Filling |
| Workshop Layout: | 200-500 Square Meters | Driven Type: | Electric |
| Brand Name: | Bievo | ||
| High Light: | DGZ18-18-6 Carbonated Soft Drink Filling Machine,3000bph Carbonated Soft Drink Filling Machine,3000bph coke filling machine |
||
Product Description
4000 gas drink coke filling machine/ carbonted drink production line/soda water filling machine
Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine
2. Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle.
3. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method.
4. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.
5. High automation and easy operation make it an ideal option for beverage companies.
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system
Technical Parameters:
|
Model (BCGF)
|
18/18/6
|
24/24/6
|
32/32/8
|
40/40/12
|
|
Washing heads
|
18
|
24
|
32
|
40
|
|
Filling heads
|
18
|
24
|
32
|
40
|
|
Capping heads
|
6
|
6
|
8
|
12
|
|
Capacity (BPH)
|
3500
|
5000
|
8000
|
12000
|
|
Power(kw)
|
3.5
|
4.5
|
6
|
7.5
|
|
Dimension (mm)
|
2600*1920
|
3100*2300
|
3800*2500
|
4600*2800
|
| *2550 | *2800 | *2900 | *2900 | |
|
Weight(kg)
|
3500
|
4500
|
5600
|
8500
|
Machines Details :
3 IN 1 Carbonated Soft Drinks Filling Machine
Washing Part:
The bottle enters into the rinsing part of three-in-one machine through air conveyor.
The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again
A. Filling valve use isobar machinery valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
B. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the main motor speed, the machine adopt Variable-frequency variable speed, whole operations area ,engine base is stainless steel contain carbon steel
C. Guide bottle system, simple structure, according to bottle style, can change
D. The whole machine can be controlled automatically by PLC
E. Filling hydraulic material liquid level height adopts liquid level probe control, liquid level steady, filling reliable
F. The machine important parts and electrical elements is import production
G. Filling hydraulic material can be controlled automatically and have CIP washing connector.
Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
Beverage Mixer
|
Electrical Brand List
|
|
|
AC Contactor
|
SIEMENS (GERMANY) |
|
Thermal overload relay
|
SIEMENS (GERMANY)
|
|
PLC
|
SIEMENS (GERMANY) |
|
Touch Screen
|
SIEMENS (GERMANY) |
|
Converter
|
SIEMENS (GERMANY) |
|
Power Switch
|
SIEMENS (GERMANY) |
|
Intermediate Relay
|
SCHNEIDER (FRANCE) |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
1. Installation & debugging
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debugging and testing production at the same time to make the equipments reach the rated producing capacity of the line.
Our company offers technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline.After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopts new design. The quality,specification and function all meet the demand of contract.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. After quality guarantee, we offer technology support and after sales service. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.
Why choose us?
(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide
Q1: How to find suitable machine or complete beverage production line?
A1: •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
