9800kg 16000bph 200ml Glass Bottle Filling Machine

9800kg 16000bph 200ml Glass Bottle Filling Machine

Product Details:

Place of Origin: China,Jiangsu
Brand Name: BIEVO
Certification: CE
Model Number: BCG50-50-12

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 45000dollers/set
Packaging Details: wood case
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Type: Filling Machine Name: Automatic Carbonated Soft Drink Filling Machine
Capacity: 16000BPH Bottle Type: PET Plastic Bottle
Filling Material: Water, Carbonated Drink Bottle Size: 200-2000ML
Key Selling Points: High Productivity Voltage: 220V/380V/415V
Machine Size: 5450*3300*2900MM Machine Weight: 9800KG
Operation: Touch Screen ,Plc Control: PLC (SIEMENS)
Marketing Type: New Product 2020 Certification: CE, ISO 9001:2008
Usage: Mineral Water,Pure Water,Beverage,Oil,Carbonated Drinks Filling Type: Isobaric Filling
Processing: Bottle Washing Filling Capping Machine Driven Type: Electric
Machine Material: Stainless Steel 304/316
High Light:

16000bph Glass Bottle Filling Machine

,

9800kg Glass Bottle Filling Machine

,

16000bph cold drink packaging machine

Product Description

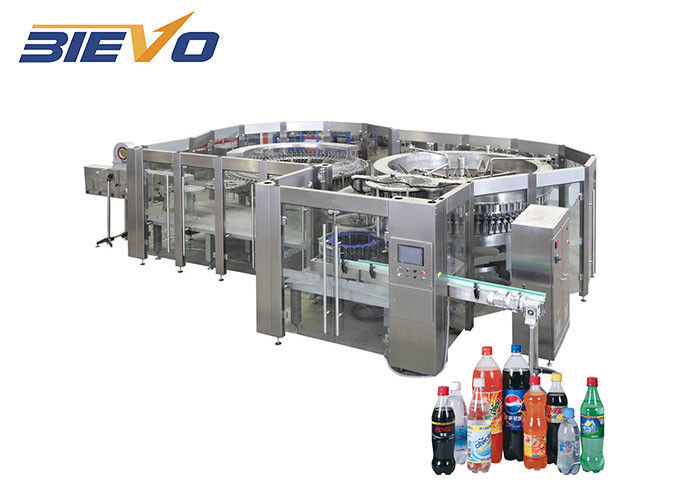

16000bph Automatic Soda Soft Drink Carbonated Gas Water Filling Machine

9800kg 16000bph 200ml Glass Bottle Filling Machine 0

Product Description:

Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine

Beverage Machinery-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. The cylinder drive the valve the movements is accurate and reliable. High-throughput, high-precision filling valve, filling fast and accurate. Equipped the CIP loop and control procedures, the equipment is easy to clean.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Using the programmable controller as control centers; using pressure transmitter, electromagnetic measurement to maintain the balance of liquid surface so as to ensure the stability of liquid.
7. New designing filling valve, return gas and filling liquid are separate to ensure the filling materials is clean.
8. The machine adopt advanced magnetic clutch screw lid and the torsion torque is adjustable, so screwing is safe and reliable.
Technical Parameters Of Auto Carbonated Soda Water Filling Machine :
Model (BCGF)
18/18/6
24/24/6
32/32/8
40/40/12
50/50/12
Washing heads
18
24
32
40
50
Filling heads
18
24
32
40
50
Capping heads
6
6
8
12
12
Capacity (BPH)
3500
5000
8000
12000
16000
Power(kw)
3.5
4.5
6
7.5
9.5
Dimension (mm)
2600*1920
3100*2300
3800*2500
4600*2800
5450*3300
*2550 *2800 *2900 *2900 *2900
Weight(kg)
3500
4500
5600
8500
9800

Machines Details Of Automatic Carbonated Soda Water Filling Machine:

3 IN 1 Carbonated Soft Drinks Filling Machine

9800kg 16000bph 200ml Glass Bottle Filling Machine 1

9800kg 16000bph 200ml Glass Bottle Filling Machine 2

9800kg 16000bph 200ml Glass Bottle Filling Machine 3

Out Look:

> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system

Washing Part:

9800kg 16000bph 200ml Glass Bottle Filling Machine 4

l. The rotary wheel is a fully stainless steel welded structure.

2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips

bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle

clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall,

and also saves rinsing water.

4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

5. The rinser is driven by driving system positioned inside machine frame via gear transmission.

6. Transfer starwheel

7. Made of stainless steel of superior quality.

Filling Part :
9800kg 16000bph 200ml Glass Bottle Filling Machine 5

l. Rotary wheel fully made of stainless steel SUS 304.

2. Gravity filling method.

3. Filling valves are made of SUS316L.

4. Filling valves are reasonably structured with accurate filling.

5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

6. Level of cylinder is controlled with float-ball.

7. Filler is driven through gears inside the machine frame.

Capping Part :
9800kg 16000bph 200ml Glass Bottle Filling Machine 6

Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock.

Our capper features as follows:

l.The equipment is designed with the support of experts from school of engineering and mechanical in Shanghai Jiao

Tong University, and uses the technology of Arol from Italy, most advance technology in the world, developed with the

experience of asepsis filling machine. For example,

1) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic

design of the wheel by experts improves the stability and credibility of the equipment.

2) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides

the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.

Electrical Brand List
AC Contactor
SIEMENS (GERMANY)
Thermal overload relay
SIEMENS (GERMANY)
PLC
SIEMENS (GERMANY)
Touch Screen
SIEMENS (GERMANY)
Converter
SIEMENS (GERMANY)
Power Switch
SIEMENS (GERMANY)
Intermediate Relay


SCHNEIDER (FRANCE)

9800kg 16000bph 200ml Glass Bottle Filling Machine 7

9800kg 16000bph 200ml Glass Bottle Filling Machine 8

9800kg 16000bph 200ml Glass Bottle Filling Machine 9

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

9800kg 16000bph 200ml Glass Bottle Filling Machine 10

9800kg 16000bph 200ml Glass Bottle Filling Machine 11

Q1:What's your guarantee or the warranty of the quality if we buy your machines?
A1:We offer you high quality machines with 1 year guarantee . we will give u spare part free in 1 year,
Life long after service. Mean while, our engineers go more than 50 countries for debugging, with rich experience.

Q2:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q3:How can I install my machine when it arrives?
A3:We will send our engineer to your side as soon as you get all your machines ready , for testing
and teaching your technicians how to run the machines.

Q4:What's the delivery time?
A4:30-45 days after the T/T deposit or L/C.

Q5:What's min order quantity?
A5:1 unit

9800kg 16000bph 200ml Glass Bottle Filling Machine 12

After-sales service:
We guarantee the quality of the main parts within 12 months.
If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
Whenever you have technical question in using it, we will freely do our best to support you.


Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship,
brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this
Contract.
Quality guarantee period is within 12 months from B/L date.
The Manufacturer would repair the contracted machines free of charge during the quality guarantee period.
If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair
parts cost.


Installation:
The seller would dispatch his engineers to instruct the installation.
Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country).
