BCG24-24-6 4000kg 5000bph Soda Production Line
Product Details:
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | BCG24-24-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 26500dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Place Of Origin: | Jiangsu, China | Type: | Filling Machine |
|---|---|---|---|
| Name: | Automatic Carbonated Soft Drink Production Line | Capacity: | 5000BPH |
| Bottle Type: | PET Plastic Bottle | Filling Material: | Beer, Water, Soft Drink |
| Bottle Size: | 200-2500ml (Customized) | Machine Size: | 3100*2300*2800mm |
| Weight: | 4000KG | Filling Temperature: | 3~5degree |
| Advantage: | High Effective | Machines Material: | Stainless Steel SUS 304/316L |
| Control: | SIEMENS Mittisubishi | Electric Parts: | Schneider |
| Function: | Bottle Washing Filling Capping | Marketing Type: | Easy To Operate |
| Condition: | New | Filling Type: | Isobaric Filling |
| Core Components:: | Motor, Pump, PLC, Bearing, Valve | Driven Type: | Electric |
| High Light: | 5000bph Soda Production Line,BCG24-24-6 Soda Production Line,5000bph soft drink refill machine |
||
Product Description
5000BPH Rotary Type Soda Water Bottling Filling Machine/Small Scale Carbonated Drink Filling
Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine
Technical Parameters Of Carbonated Soda Water Filling Machine :
|
Model (BCGF)
|
24/24/6
|
32/32/8
|
40/40/12
|
50/50/12
|
|
Washing heads
|
24
|
32
|
40
|
50
|
|
Filling heads
|
24
|
32
|
40
|
50
|
|
Capping heads
|
6
|
8
|
12
|
12
|
|
Capacity (BPH)
|
5000
|
8000
|
12000
|
16000
|
|
Power(kw)
|
4.5
|
6
|
7.5
|
9.5
|
|
Dimension (mm)
|
3100*2300
|
3800*2500
|
4600*2800
|
5450*3300
|
| *2800 | *2900 | *2900 | *2900 | |
|
Weight(kg)
|
4500
|
5600
|
8500
|
9800
|
Machines Details :

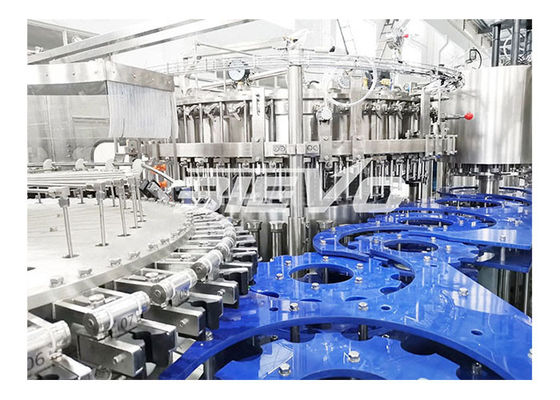

3 IN 1 Carbonated Soft Drinks Filling Machine
Out Look:
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system
Washing Part:
Rotary type bottle washing machine, mainly used to wash bottles for drinking water and other beverage. New bottles go into the machine through air conveyor. Bottles are held by grips and turned over onto washing heads. After washing and drain water, bottles go into filling parts by star wheel. Main structure, protect shell and contact water part of washing part are all stainless steel.
Filling machine adopt German technology, produce by gravity filling and obey to normal pressure filling principle.Main drives adopt mechanical freestanding gear, high efficiency, low noise, long service life, easy to maintain, lubricate well. Frequency converter controls the main motor and makes the machine speed changeable.

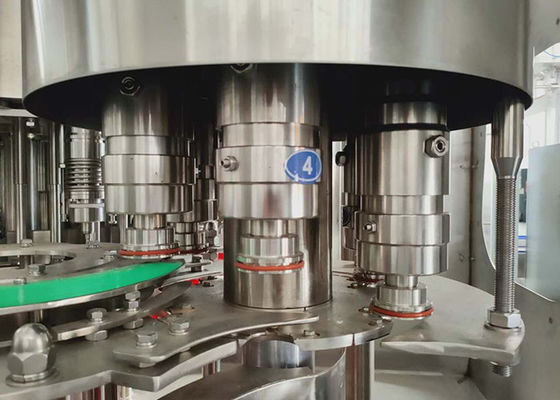

Capping machine drives revolved plate by gear. Cap goes out of cap storage by centrifugal effect. At the cap output, there is cap divider. Reverse cap drops into pipes then return to cap storage by air conveyor. Right cap goes into conveyor. The quantity inspected by sensor, capping machine control the cap conveyor. The machine will stop when no caps.
| Technical Partment Of Carbonated Soda Water Filling Machine | |||
|
S/N
|
Name
|
Brand
|
Country
|
|
1
|
Main motor
|
ABB
|
Switzerland
|
|
2
|
Inverter
|
MITSUBISHI
|
Japan
|
|
3
|
PLC
|
OMRON
|
Japan
|
|
4
|
Touch screen
|
MITSUBISHI
|
Japan
|
|
5
|
Contactor
|
SCHNEIDER
|
France
|
|
6
|
Thermo- relay
|
SCHNEIDER
|
France
|
|
7
|
Air-break switch
|
SCHNEIDER
|
France
|
|
8
|
Proximity switch
|
TURCK
|
USA
|
|
9
|
Photoelectric switch
|
BANNER
|
USA
|
|
10
|
Air circuit system
|
SMC
|
Japan
|
|
11
|
Water pump
|
Southern
|
China
|
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
Installation and commissioning
After the equipments arrived buyer's workshop, the buyer should take it's place for each equipment according to the supplied layout; the seller will send the experienced technician to guide the installation and debugging and trail production, and fulfil the designed capability within the designed time.
Training
The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.
After-sales service
1) After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
2) After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
