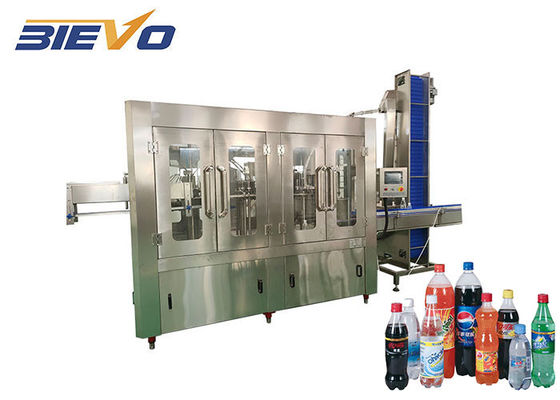

3500bph 8 Degree 500ml  PET Soda Filling Machine

3500bph 8 Degree 500ml PET Soda Filling Machine

Product Details:

Place of Origin: China,Jiangsu
Certification: CE
Model Number: BCG18-18-6

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 18400dollers/set
Packaging Details: wood case
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Brand Name: Bievo Type: Filling Machine
Name: Carbonated Soda Water Filling Machine Production Line Capacity: 3500BPH
Bottle Shape: Round/square/flat Filling Material: Gas Liquid
Bottle Size: 200-2000ML Filling: Carbonation Pressure Filling Type
Model: BCGF18-18-6 Machine Size: 2600*1920*2550MM
Weight: 3500KG Application: Beverage
Operation: Touch Screen And PLC Function: Carbonated Drink Washing Filling Capping Process
Marketing Type: New Product 2020 Filling Temperature: 3-8degree
Driven Type: Mechanical Filling Type: Isobaric Filling Type
Invertor: Mitsubishi PLC: Mitsubishi
High Light:

BCGF18-18-6 PET Soda Filling Machine

,

3500bph PET Soda Filling Machine

,

3500bph soda bottle packing machine

Product Description

3500BPH Carbonated soft drink filling machine / soda water production plant

3500bph 8 Degree 500ml  PET Soda Filling Machine 0

Product Description:

Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine

1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and fast when changing the bottle type.
2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.
3. Adopting advanced pressure filling process, the filling is fast, stable, and accurate.
4. Adopt advanced capping structure for crown cap without any surface damage of the cap.
5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.
6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.

Technical Parameters:

Model (BCGF)
2014/12/5
18/18/6
24/24/6
32/32/8
40/40/12
Washing heads
14
18
24
32
40
Filling heads
12
18
24
32
40
Capping heads
5
6
6
8
12
Capacity (BPH)
2000
3500
5000
8000
12000
Power(kw)
2.2
3.5
4.5
6
7.5
Dimension (mm)
2400*1600
2600*1920
3100*2300
3800*2500
4600*2800
*2500 *2550 *2800 *2900 *2900
Weight(kg)
2500
3500
4500
5600
8500

Machines Details :

3 IN 1 Carbonated Soft Drinks Filling Machine

3500bph 8 Degree 500ml  PET Soda Filling Machine 1

3500bph 8 Degree 500ml  PET Soda Filling Machine 2

3500bph 8 Degree 500ml  PET Soda Filling Machine 3

Out Look:

> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust

Washing Part:

3500bph 8 Degree 500ml  PET Soda Filling Machine 4

1) Into bottle way is flat conveyor cooperated with bottle feeding screw.
2) All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .

3) 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4) 304/316 stainless steel washing pump make the machine more durable .
Filling Part :
3500bph 8 Degree 500ml  PET Soda Filling Machine 5
1) 304/316 Stainless steel high precision filling nozzle
2) Filling volume adjustable in fine rank, same liquid level after filling
3) All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5) Efficient spray nozzle rinse thoroughly and save water for flushing
6) Air lifting mechanism makes the running more stable and smooth.
Capping Part :
3500bph 8 Degree 500ml  PET Soda Filling Machine 6

1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2% .

Electrical Brand List
AC Contactor
SIEMENS (GERMANY)
Thermal overload relay
SIEMENS (GERMANY)
PLC
SIEMENS (GERMANY)
Touch Screen
SIEMENS (GERMANY)
Converter
SIEMENS (GERMANY)
Power Switch
SIEMENS (GERMANY)
Intermediate Relay


SCHNEIDER (FRANCE)

3500bph 8 Degree 500ml  PET Soda Filling Machine 7

3500bph 8 Degree 500ml  PET Soda Filling Machine 8

3500bph 8 Degree 500ml  PET Soda Filling Machine 9

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

3500bph 8 Degree 500ml  PET Soda Filling Machine 10

3500bph 8 Degree 500ml  PET Soda Filling Machine 11

Q1: How to find suitable soda water or carbonated drink filling machine or complete production line?
A1: Looking for carbonated beverage filling machine in www.grandeemachine.en.alibaba.com
Q2: How to start a soda water factory business ? What's my budget?
A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 10000liters/hr,etc.
Q3: How to confirm the bottle shapes that is very attractive for your customer ?
A3: Confirm the plastic bottle size is 355ml, 500ml, 1000ml,1500ml or 2000ml, then our engineer can design the bottle shapes for you.
Q4: Which kinds of machines included in one complete soda water production line?
A4: PE Resin, injection molding machine, automatic or semi auto plastic blowing molding machine, RO water treatment plant, beverage processing machine, carbonation mixer, water chiller carbonated filling machine, bottle warming machine, sleeve shrink labeling machine or self adhesive labeling machine or OPP labeling machine or rotary labeling machine, semiautomatic or full automatic L type shrink packing machine, high speed shrink packing machine, laser or ink printer, palletizer, pallet wrapping machine.
Q5: Are you a trading company or a manufacturer?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
