PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine

  • High Light

    2900mm Carbonated Soft Drink Filling Machine

    ,

    BCG50-50-12 Carbonated Soft Drink Filling Machine

    ,

    16000bph soda bottle filling machine

  • Type
    Filling Machine
  • Name
    Automatic Carbonated Soft Drink Filling Machine
  • Capacity
    16000BPH
  • Bottle Type
    PET /Glass Bottle
  • Filling Material
    Water, Carbonated Drink
  • Bottle Size
    200-2000ML
  • Key Selling Points
    High Productivity
  • Voltage
    According To Order
  • Machine Size
    5450*3300*2900MM
  • Machine Weight
    9800KG
  • Operation
    Touch Screen ,PLC
  • Control
    PLC (SIEMENS) +Touch Screen
  • Marketing Type
    New Product 2020
  • Certification
    CE, ISO 9001:2008
  • Processing Types
    Gas Drink
  • Filling Type
    Isobaric Filling
  • Machine Color
    Silver Gray
  • Driven Type
    Electric
  • Machine Material
    Stainless Steel 304/316
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    BCG50-50-12
  • Minimum Order Quantity
    1set
  • Price
    45000dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    30 working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine

16000bph 16000bph Soft Drink Carbonated Filling Machine/Carbonated Drink Production Line/Soda Water Maker

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 0

Product Description:

Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine

1. Automatic Rinser, Filler& Capper monobloc filling machine
2. Capacity:2000-22000bph
3. Bottle size: 330-1500ML PET Bottle
4. Bottle material: Plastic
5. Human Machine interface control- Made in Taiwan
6. PLC controller- Japanese Mitsubish / Omron International famous brand components

7. Water Pump- Nanfang, China National Top Brand

Product Application:

This series of equipments is used in the production all kinds of carbonated drink contained in PET bottle.Washing,filling and capping are integrated into one machine.The machine design scientificly,beautiful appearance,complete function,convenient maintenance and highly automation.
The production line include DGZAutomatic washer, CYG often pressure filler, FXZ cap turning machine, SSJ carrying machine ect. The key parts for washing, filling and sealing are made of high quality stainless material, with the features of advanced technology, completed system, reliable performance, easy in operation.

Technical Parameters Of Auto Carbonated Soda Water Filling Machine :
Model (BCGF)
18/18/6
24/24/6
32/32/8
40/40/12
50/50/12
Washing heads
18
24
32
40
50
Filling heads
18
24
32
40
50
Capping heads
6
6
8
12
12
Capacity (BPH)
3500
5000
8000
12000
16000
Power(kw)
3.5
4.5
6
7.5
9.5
Dimension (mm)
2600*1920
3100*2300
3800*2500
4600*2800
5450*3300
*2550 *2800 *2900 *2900 *2900
Weight(kg)
3500
4500
5600
8500
9800

Machines Details Of Automatic Carbonated Soda Water Filling Machine:

3 IN 1 Carbonated Soft Drinks Filling Machine

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 1

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 2

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 3

Out Look:

> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system

Washing Part:

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 4

<1> Rinsing water distributor ensure each working position has stable water supply, as well as cut the rinsing water consumption.
<2> Single fluid spray nozzle is used, rinser water is spraying in setting angle, and clean all parts inside of bottle with features complete rinsing and water saving. Water rinsing time is 4 seconds and dripping water is 2 seconds;

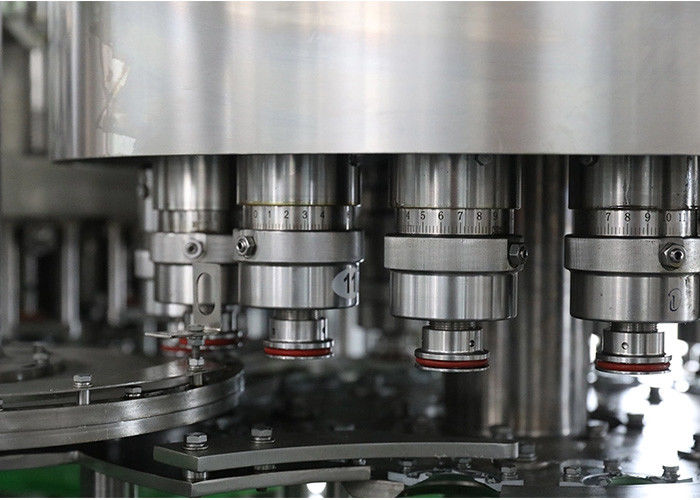

Filling Part :
PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 5

<1> Material of filling valve and tank are made from stainless steel 304L.
<2> High speed and precision filling technology, filling flow rate is 35% higher than Newamstar's second generation filling technology (reaches to 200ml/s), liquid level precision ≤±2mm;.
<3> Circline liquid tank, the liquid level is controlled by floating ball.

Capping Part :
PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 6

Capping Part
<1> High speed and high precision capping technology and ensure capping inferior ≤0.2%.
<2> Capping air tightness ≥ 99.99%
<3> Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
<4> The anti-rotation blade is made by chrome material, no rust and wearable.

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 7

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 8

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 9

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 10

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 11

Q:Are you a manufacturer or trade company?
A:We are a manufacturer in beverage machine field more than 10 years, located at Jinfeng town,zhangjiagang,2 hours from Shanghai,1 hour from Wuxi by car. We will pick you up to visit our factory.



Q:The after-sale service
A:12 months warranty.
solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
We also have overseas service center



Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes.



Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.



Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.



Q: If I want to buy a machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.



Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line.
5 gallon/20L/ can beverage/glass bottle beverage filling line.
Water treatment system.
Bottle blowing making machine.
After packing system(label machine, PE film shrink packing machine, carton machine)

PET CE 5450x3300x2900mm Carbonated Soft Drink Filling Machine 12

After-sales service:
We guarantee the quality of the main parts within 12 months.
If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
Whenever you have technical question in using it, we will freely do our best to support you.


Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship,
brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this
Contract.
Quality guarantee period is within 12 months from B/L date.
The Manufacturer would repair the contracted machines free of charge during the quality guarantee period.
If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair
parts cost.


Installation:
The seller would dispatch his engineers to instruct the installation.
Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country).
