16000bph 12 Heads 200ml Carbonated Drink Bottling Machine

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine

  • High Light

    200ml Carbonated Drink Bottling Machine

    ,

    16000bph Carbonated Drink Bottling Machine

    ,

    16000bph soda filling and capping machine

  • Type
    Filling Machine
  • Name
    Automatic Carbonated Soft Drink Beverage Filling Machine
  • Capacity
    16000BPH
  • Bottle Shape
    Round Bottle Or Flat Bottle
  • Filling Material
    Water, Carbonated Drink
  • Bottle Size
    200-2000ML
  • Washing Heads
    50heads
  • Filling Heads
    50heads
  • Capping Heads
    12heads
  • Machine Size
    5450*3300*2900MM
  • Machine Weight
    9800KG
  • Control
    PLC (SIEMENS) +Touch Screen
  • Marketing Type
    New Product 2020
  • Certification
    CE, ISO 9001:2008
  • Processing Types
    Gas Drink
  • Filling Type
    Isobaric Filling
  • Machine Color
    Silver Gray
  • Driven Type
    Electric
  • Machine Material
    Stainless Steel 304/316
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    BCG50-50-12
  • Minimum Order Quantity
    1set
  • Price
    45000dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    30 working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine

16000bph Full-Auto Carbonated Soft Drinking Liquid Bottle Filling Capping Machine

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 0

Product Application For Carbonated Soft Drink Bottle Washing Filling Capping Machine:

This series of equipments is used in the production all kinds of carbonated drink contained in PET bottle.Washing,filling and capping are integrated into one machine.The machine design scientificly,beautiful appearance,complete function,convenient maintenance and highly automation.
The production line include DGZAutomatic washer, CYG often pressure filler, FXZ cap turning machine, SSJ carrying machine ect. The key parts for washing, filling and sealing are made of high quality stainless material, with the features of advanced technology, completed system, reliable performance, easy in operation.

Technical Parameters Of Auto Carbonated Soda Water Filling Machine :
Model (BCGF)
18/18/6
24/24/6
32/32/8
40/40/12
50/50/12
Washing heads
18
24
32
40
50
Filling heads
18
24
32
40
50
Capping heads
6
6
8
12
12
Capacity (BPH)
3500
5000
8000
12000
16000
Power(kw)
3.5
4.5
6
7.5
9.5
Dimension (mm)
2600*1920
3100*2300
3800*2500
4600*2800
5450*3300
*2550 *2800 *2900 *2900 *2900
Weight(kg)
3500
4500
5600
8500
9800

Machines Details Of Automatic Carbonated Soda Water Filling Machine:

3 IN 1 Carbonated Soft Drinks Filling Machine

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 1

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 2

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 3

Out Look:

> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system

Washing Part:

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 4

<1>Rinsing water distributor ensure each working position has stable water supply, as well as cut the rinsing water consumption.
<2>Single fluid spray nozzle is used, rinser water is spraying in setting angle, and clean all parts inside of bottle with features complete rinsing and water saving. Water rinsing time is 4 seconds and dripping water is 2 seconds;

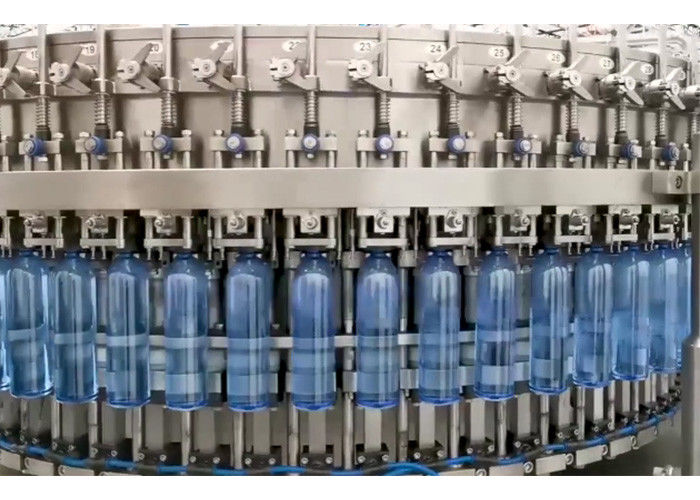

Filling Part :
16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 5

<1>Material of filling valve and tank are made from stainless steel 304L.
<2>High speed and precision filling technology, filling flow rate is 35% higher than Newamstar's second generation filling technology (reaches to 200ml/s), liquid level precision ≤±2mm;.
<3>Circline liquid tank, the liquid level is controlled by floating ball.

Capping Part :
16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 6

Capping Part
<1>High speed and high precision capping technology and ensure capping inferior ≤0.2%.
<2>Capping air tightness ≥ 99.99%
<3>Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
<4>The anti-rotation blade is made by chrome material, no rust and wearable.

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 7

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 8

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 9

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

16000bph 12 Heads 200ml Carbonated Drink Bottling Machine 10

After-sales service:
We guarantee the quality of the main parts within 12 months.
If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
Whenever you have technical question in using it, we will freely do our best to support you.


Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship,
brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this
Contract.
Quality guarantee period is within 12 months from B/L date.
The Manufacturer would repair the contracted machines free of charge during the quality guarantee period.
If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair
parts cost.


Installation:
The seller would dispatch his engineers to instruct the installation.
Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country).
