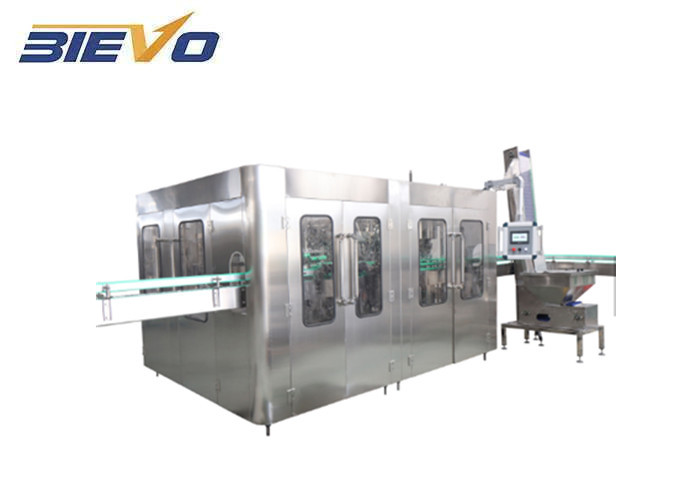

Isobaric filling beer making machine glass bottle beer bottle production line
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | BGF18-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 26500dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Cap Type: | Crown Cap/aluminum Screw Cap | Name: | Beer Filling And Capping Machine |
|---|---|---|---|
| Capacity: | 1000-36000BPH | Bottle Type: | Glass Bottle |
| Filling Material: | Beer Or Carbonatd Drinks | Bottle Size: | 200-2000ml (Customized) |
| Machine Size: | 3100*2300*2800mm | Weight: | 4000KG |
| Filling Temperature: | 2~4degree | Advantage: | Stable Filling |
| Machines Material: | Stainless Steel SUS 304/316L | Control: | SIEMENS Or Other Brand |
| Electric Parts: | Schneider Or Other Brand | Function: | Glass Bottle Beer Filling |
| Marketing Type: | Easy To Operate | Condition: | New |
| Filling Type: | Isobaric Filling | Filling Heads: | 18Heads |
| Capping Heads: | 6Heads | ||
Product Description
Isobaric filling beer making machine glass bottle beer bottle production line
Products Introduction Of Carbonated Soft Drink Beverage Filling Botling Machine
Carbonated beverage glass bottle filling machine could be separated to 3 modules.the height of the bottle-out conveyor is
adjustable.bottles are conveyed to rinser,filler and capper through starwheel and conveyed out finally through bottle-out
conveyor.equip alarm device for bottle block,bottle absence,cap absence and overload.the machine meets the national food hygienic
standard,with high automation and easy to operate.
2. The filling process of different types of bottles can be reached only by changing the star-wheel
3. The parts contacting with product is made of quality SUS, anti-corrosive, and easy to clean.
4. By adopting high speed filling valve, the liquid level is precise and no waste is to increase. That guarantees the demand of
modern filling technology.
5. The capping head adopts constant torque magnetic device to guarantee capping quality, without any damage to the cap.
6 . This machine has a highly efficient cap arranging system, perfect cap feeding and protection device.
7 . By adopting overload protection system, it can ensure the protection of safety of the operator and equipment.
8 . The operating system bears the function of production speed control, cap-shortage checking, production suspension when
bottles-blocked, and counting of outputs.
9. The electric equipment and pneumatic parts are of brand name of the world.
Technical Parameters Of Carbonated Soda Water Filling Machine :
|
Model (BGF)
|
12/6
|
18/6
|
24/8
|
|
Filling heads
|
12
|
18
|
24
|
|
Capping heads
|
6
|
6
|
8
|
|
Capacity (BPH)
|
1000
|
2000-3000
|
4000-5000
|
|
Power(kw)
|
1.5
|
1.5
|
3.75
|
|
Dimension (mm)
|
1700*1100
|
1800*1300
|
1950*1580
|
| *2300 | *2300 | *2500 | |
|
Weight(kg)
|
2000
|
2400
|
3000
|
Machines Details :
3 IN 1 Carbonated Soft Drinks Filling Machine
Out Look:
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system
Washing Part:
Rotary rinser is one of the key components, which is installed on the clamp, media distributor and other components. When the
figure of the rotary bearing rotation, driven turret and the other components are installed on the rotating simultaneously,
slewing bearing lubrication in order to concentrate lubrication.
CO2 pre-charge
Open the charge valve, form a pathway between bottle and alcohol tank’s CO2. The CO2 will filling into the bottle through the
pathway. The charge valve will closed when the setting time reached, that means the CO2 pre-charge process end.
Vacuum extraction
Open the take out-vacuum valve pole, form a pathway between bottle and vacuum. The CO2 and air will be discharged from the bottle
by the pathway, and form into vacuum in the bottle.
The take out-vacuum will be closed when the setting time arrived, then the once take out-vacuum end.
The capper is made up of hopper, slide way, upper capper, lower capper, rise and fall parts, and preventing turning upright
stanchion.
The requirements of crown cap:
Only when the height and diameter all accord with crown cap’s standard, the capper’s normal running can be guaranteed. The crown
cap should be stored in the dry room.
| Technical Partment Of Carbonated Soda Water Filling Machine | |||
|
S/N
|
Name
|
Brand
|
Country
|
|
1
|
Main motor
|
ABB
|
Switzerland
|
|
2
|
Inverter
|
MITSUBISHI
|
Japan
|
|
3
|
PLC
|
OMRON
|
Japan
|
|
4
|
Touch screen
|
MITSUBISHI
|
Japan
|
|
5
|
Contactor
|
SCHNEIDER
|
France
|
|
6
|
Thermo- relay
|
SCHNEIDER
|
France
|
|
7
|
Air-break switch
|
SCHNEIDER
|
France
|
|
8
|
Proximity switch
|
TURCK
|
USA
|
|
9
|
Photoelectric switch
|
BANNER
|
USA
|
|
10
|
Air circuit system
|
SMC
|
Japan
|
|
11
|
Water pump
|
Southern
|
China
|
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
A1: Looking for beverage filling machine in www.bievotevh.com
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your
requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell
drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians
working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and
maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once
your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from
your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will
go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Title goes here.
Customer's service:
1.Grandee company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. Grandee company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. Grandee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you
want to product, what is your capacity(how many bottles one hour) what is you bottle
material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance
service.
