18 Heads Carbonated Drink Bottling Machine 4000bph 500ml

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml

  • High Light

    18 Heads Carbonated Drink Bottling Machine

    ,

    500ml Bottle Carbonated Drink Filling Machine

    ,

    4000bph Carbonated Drink Bottling Machine

  • Type
    Filling Machine
  • Name
    Automatic Carbonated Soft Drink Beverage Filling Machine
  • Capacity
    4000BPH
  • Bottle Shape
    Round Bottle Or Flat Bottle
  • Filling Material
    Water, Carbonated Drink
  • Bottle Size
    200-2000ML
  • Washing Heads
    18heads
  • Filling Heads
    18heads
  • Capping Heads
    6heads
  • Machine Size
    2600*1920*2550MM
  • Machine Weight
    3500KG
  • Control
    PLC (SIEMENS) +Touch Screen
  • Marketing Type
    New Product 2022
  • Certification
    CE, ISO 9001:2008
  • Processing Types
    Gas Drink
  • Filling Type
    Isobaric Filling
  • Machine Color
    Silver Gray
  • Driven Type
    Electric
  • Machine Material
    Stainless Steel 304/316
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    BCG18-18-6
  • Minimum Order Quantity
    1set
  • Price
    19000dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    30 working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml

4000bph 500ml 18 Heads Carbonated Drink Bottling Machine In Sale



4000bph Full-Auto Carbonated Soft Drinking Liquid Bottle Filling Capping Machine



Gas Energy Drink Machine Description

1) Rinser / filler / capper monobloc
2) Bottle material: PET, glass, metal
3) Bottle volume: 150ml - 2.5L
4) Production capacity: 50 - 22,000bottles/h
5) Can design according to customers' demands

6) We can supply filling line solution and filling machines for soft drinks (carbonated drinks)

Technical Parameters Of Auto Carbonated Soda Water Filling Machine :
Model (BCGF)
18/18/6
24/24/6
32/32/8
40/40/12
50/50/12
Washing heads
18
24
32
40
50
Filling heads
18
24
32
40
50
Capping heads
6
6
8
12
12
Capacity (BPH)
3500
5000
8000
12000
16000
Power(kw)
3.5
4.5
6
7.5
9.5
Dimension (mm)
2600*1920
3100*2300
3800*2500
4600*2800
5450*3300
*2550 *2800 *2900 *2900 *2900
Weight(kg)
3500
4500
5600
8500
9800

Machines Details Of Automatic Carbonated Soda Water Filling Machine:

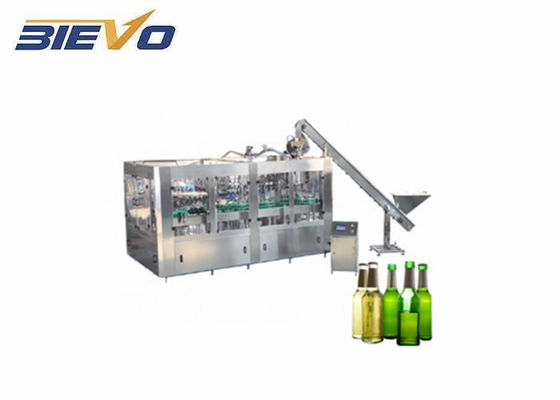

3 IN 1 Carbonated Soft Drinks Filling Machine

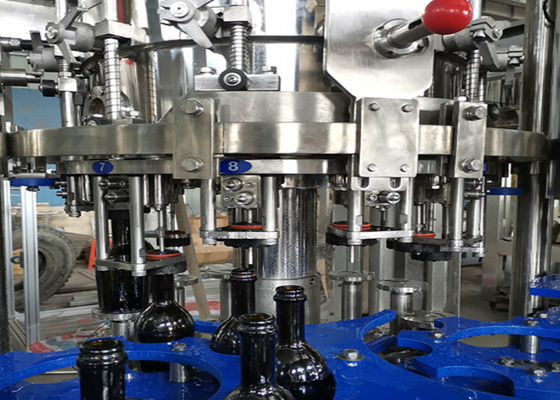

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 0

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 1

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 2

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 3

Out Look:

> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever antirust
> All seal where liquid may Leakage & base neck come with rubber, water proof
> Manual lubrication system

Washing Part:

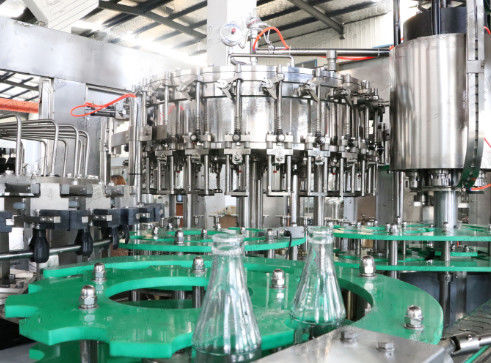

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 4

<1>Rinsing water distributor ensure each working position has stable water supply, as well as cut the rinsing water consumption.
<2>Single fluid spray nozzle is used, rinser water is spraying in setting angle, and clean all parts inside of bottle with features complete rinsing and water saving. Water rinsing time is 4 seconds and dripping water is 2 seconds;

Filling Part :

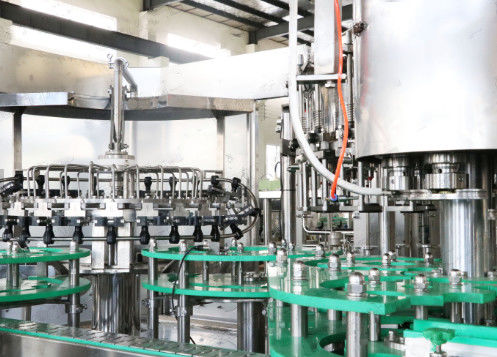

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 5

<1>Material of filling valve and tank are made from stainless steel 304L.
<2>High speed and precision filling technology, filling flow rate is 35% higher than Newamstar's second generation filling technology (reaches to 200ml/s), liquid level precision ≤±2mm;.
<3>Circline liquid tank, the liquid level is controlled by floating ball.

Capping Part :
18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 6

Capping Part
<1>High speed and high precision capping technology and ensure capping inferior ≤0.2%.
<2>Capping air tightness ≥ 99.99%
<3>Adopted in constant magnetic torque capping technology. capping effect is stable and reliable.
<4>The anti-rotation blade is made by chrome material, no rust and wearable.

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 7

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 8

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 9

Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .

18 Heads Carbonated Drink Bottling Machine 4000bph 500ml 10

After-sales service:
We guarantee the quality of the main parts within 12 months.
If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you.
After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.
Whenever you have technical question in using it, we will freely do our best to support you.


Installation:
The seller would dispatch his engineers to instruct the installation.
Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country).
