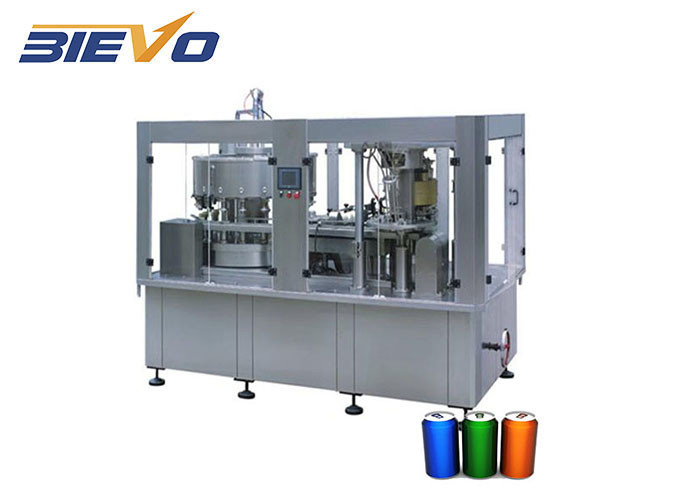

200ml PET Cans Filling Machine 6000cph Soda Canning Production Line

200ml PET Cans Filling Machine 6000cph Soda Canning Production Line

  • High Light

    PET Cans Filling Machine

    ,

    200ml Cans Filling Machine

    ,

    6000cph soda canning machine

  • Type
    Can Beverage Filling Machine
  • Automatic Grade
    Automatic
  • Material
    SUS 304
  • Voltage
    Customized
  • Dimension(L*W*H)
    2200X2100X2200MM
  • Weight
    2500KG
  • Filling Material
    Carbonated Drinks
  • Filling Valve Head
    12
  • Can Shape
    Aluminum Can
  • Core Components
    Pump, PLC
  • Filling Accuracy
    99.9%
  • Certification
    CE, ISO 9001:2008
  • Condition
    New
  • Key Selling Points
    Full Automatic
  • Bottle Size
    200ml-1500ml (Customized)
  • Function
    Cans Filling Sealing Machine
  • Control System
    PLC+Touch Screen
  • Workshop Layout
    Free Design
  • Application
    Beverage
  • Packaging Material
    Wood
  • Driven Type
    Electric
  • Machinery Capacity
    6000cph
  • Place of Origin
    China,Jiangsu
  • Brand Name
    BIEVO
  • Certification
    CE
  • Model Number
    DGF12-1
  • Minimum Order Quantity
    1set
  • Price
    20000dollers/set
  • Packaging Details
    wood case
  • Delivery Time
    20-30working days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 sets per month

200ml PET Cans Filling Machine 6000cph Soda Canning Production Line

6000CPH Automatic Carbonated Soft Drink Cans Filling Sealing Machines Production Line

Canned beverage machines are used to fill liquid in cans and seal cans.

The Liquid can filling, sealing machines were made based on absorbing advance technology from abroad. All the canning machines adopt the advanced mechanical, electrical and pneumatic control technology. Can filling and seaming system were made in one unit. The filling system driving force was supplied by seaming system to assure the synchronization. With using counter pressure filling principle, filling work is stable, fast, accurate and has no leakage. Capping performance is well. The can filling machine owns stable working, elegant appearance, easy maintainence, motor speed frequency control. It also can be equipped with long-range control system according to customers’ requirement. It is the ideal machine for beer and beverage factory.

Product Application

Beverage can filling machine
Application :energy drink,juice beverage,carbonated drink etc.
pop can filling and seaming machine for fruit juice(non carbonated) has such prominent features as high filling speed , consistent height from the liquid level in the can to the can mouth after filling , stable machine operation , good sealing quality , beautiful and decent appearance , convenient use and maintenance , etc .

It is the preferred equipment for the medium beer and beverage plant.
We provide the complete pop cans / tin can filling and package solution ,from can depalletizer ,can rinsing machine ,can filling&sealing monoblock machine ,leakage check,liquid nitrogen dosing machine ,pasteurizer tunnel ,blow dryer ,carton package ,film package system ,which is widely used for the beverage ,beer ,juice industry and so on.

The machine is advanced filling and capping equipment, it’s designed on the basis of absorbing domestic and foreign advanced technology. It is mainly used in filling and capping carbonated beverages like soft drinks, cola, sparkling wine, etc. It has such advantages as advanced construction, stable working, convenient operation, and repair & maintenance, transducer control as well as high production efficiency. It is the ideal equipment for mid-scale & small-scale beverage factory.



Model
DYGF12-1
DYGF20-4
DYGF30-6
DYGF40-6
DYGF40-8
The number of filling head
12
20
30
40
40
The number of sealing head
1
4
6
6
8
Production capacity
1500~2000CPH
9000CPH
18000CPB
24000CPH
27000CPH
(Adjustable)
Can Diameter
52.5~99mm
52.5~99mm
52.5~99mm
52.5~99mm
52.5~99mm
Can Height
39~160mm
39~160mm
39~160mm
39~160mm
39~160mm
Power
2.0Kw
5.5Kw
7.5Kw
9.7Kw
11.5Kw
Weight
2500kg
3800kg
5500kg
7500kg
9000kg
Dimension
1850x1240x1900mm
3050x1750x1900mm
3800x1900x1900mm
4200x2100x1900mm
4600x2400x1900mm

200ml PET Cans Filling Machine 6000cph Soda Canning Production Line 0

200ml PET Cans Filling Machine 6000cph Soda Canning Production Line 1



200ml PET Cans Filling Machine 6000cph Soda Canning Production Line 2

200ml PET Cans Filling Machine 6000cph Soda Canning Production Line 3

200ml PET Cans Filling Machine 6000cph Soda Canning Production Line 4

S/N Name Brand Country
1 Main motor ABB Switzerland
2 Inverter MITSUBISHI Japan
3 PLC OMRON Japan
4 Touch screen MITSUBISHI Japan
5 Contactor SCHNEIDER France
6 Thermo- relay SCHNEIDER France
7 Air-break switch SCHNEIDER France
8 Proximity switch TURCK USA
9 Photoelectric switch BANNER USA
10 Air circuit system SMC Japan
11 Water pump Southern Japan















200ml PET Cans Filling Machine 6000cph Soda Canning Production Line 5

200ml PET Cans Filling Machine 6000cph Soda Canning Production Line 6



Our Service

Installation and commissioning
After the equipments arrived buyer's workshop, the buyer should take it's place for each equipment according to the supplied layout; the seller will send the experienced technician to guide the installation and debugging and trail production, and fulfil the designed capability within the designed time.

Training
The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.

After-sales service
1) After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.

2) After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
