Automatic 200-1500ml Cans Filling Machine 6000cph Tin Packing Machine

Automatic 200-1500ml Cans Filling Machine 6000cph Tin Packing Machine

Product Details:

Place of Origin: China,Jiangsu
Brand Name: BIEVO
Certification: CE
Model Number: DGF12-1

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 20000dollers/set
Packaging Details: wood case
Delivery Time: 20-30working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Get Best Price Contact Now

Detail Information

Type: Can Beverage Filling Machine Automatic Grade: Automatic
Material: SUS 304 Voltage: Customized
Dimension(L*W*H): 2200X2100X2200MM Weight: 2500KG
Filling Material: Carbonated Drinks Filling Valve Head: 12
Can Shape: Aluminum Can Core Components: Pump, PLC
Filling Accuracy: 99.9% Certification: CE, ISO 9001:2008
Condition: New Key Selling Points: Full Automatic
Bottle Size: 200ml-1500ml (Customized) Function: Cans Filling Sealing Machine
Control System: PLC+Touch Screen Workshop Layout: Free Design
Application: Beverage Packaging Material: Wood
Driven Type: Electric Machinery Capacity: 6000cph
High Light:

1500ml Cans Filling Machine

,

200ml Cans Filling Machine

,

6000cph tin packing machine

Product Description

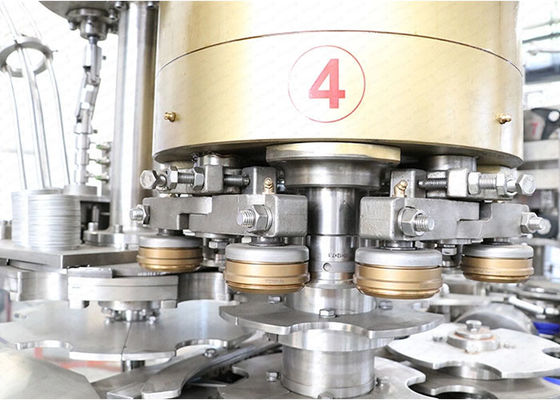

6000CPH Automatic Soda Beverage Drinks Can Making Filling Capping Machine Automatic Equipment

1. This equipment is used for filling carbonated beverage in cans , such as beer, cola, energy drinks and soda water.
2. This equipment can be used for different material of cans, such as plastic, iron, aluminum and so on ,and the different size of cans is allowed.We can design the equipment according to your requirements

3. It is applicable for equal pressure filler and capper of carbonated drinks in beer and drink industry.
4. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit.
5. Filling and sealing is the overall designed, power system by filling sealing system to Ensure that both the absolute synchronization and coordination.

6. It adopts the advanced machine, electrical equipment, and Pneumatic control technology.

7. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss.
8. It can equip long-distance control system according to the Customers request.
9. It is the preferred equipment for the medium beer and beverage plant .



We are specialized in manufacturig can filling machine from China.

Machine include function : Filling Capping
Application: Beverage, water , cola , beer , juice , oil

Usage: The machine is used in washing can, filling carbonated drinks in beer and coca cola , pepsi drink and other carbonated drink production industry and capping.

1. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination.

2. It adopts the advanced machine, electrical equipment, and pneumatic control technology.

3. The requirements of the can filling machine
It is suitable for filling and sealing aluminum canned beer and carbonated soft drinks. It is equipped the advanced device,
electrical equipment, and pneumatic control technology. It has the characteristics of filling repose fully, high speed, liquid
level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system.
It is the preferred equipment for the medium beer and beverage plant.
We provide the complete pop cans / tin can filling and package solution ,from can depalletizer ,can rinsing machine ,can filling&sealing monoblock machine ,leakage check,liquid nitrogen dosing machine ,pasteurizer tunnel ,blow dryer ,carton package ,film package system ,which is widely used for the beverage ,beer ,juice industry and so on

Technical Specification
Model GF12-1 GF18-4 GF24-6
Capacity 1200-1500cans/hour 5000-6000 CPH 7000-9000 CPH
Can volume 200ml-1000ml 200ml-1000ml 200ml-1000ml
Can diameater 50-70mm 50-70mm 50-70mm
Bottle high 120-170mm 120-170mm 120-170mm
Machine power 1.5KW 2.2KW 3.7KW
Machine size 175x120x195CM 305x175x220CM 340X195X220CM

Automatic 200-1500ml Cans Filling Machine 6000cph Tin Packing Machine 0

Automatic 200-1500ml Cans Filling Machine 6000cph Tin Packing Machine 1



Automatic 200-1500ml Cans Filling Machine 6000cph Tin Packing Machine 2

Automatic 200-1500ml Cans Filling Machine 6000cph Tin Packing Machine 3

Automatic 200-1500ml Cans Filling Machine 6000cph Tin Packing Machine 4

S/N Name Brand Country
1 Main motor ABB Switzerland
2 Inverter MITSUBISHI Japan
3 PLC OMRON Japan
4 Touch screen MITSUBISHI Japan
5 Contactor SCHNEIDER France
6 Thermo- relay SCHNEIDER France
7 Air-break switch SCHNEIDER France
8 Proximity switch TURCK USA
9 Photoelectric switch BANNER USA
10 Air circuit system SMC Japan
11 Water pump Southern Japan



















Automatic 200-1500ml Cans Filling Machine 6000cph Tin Packing Machine 5

Q: How to get an appropriate offer from Bievo Machinery?
A: Please inform us:
1, production capacity per hour/per day/per month ... ...
2, filling liquid: water, juice, carbonated drink, beer or ... ...
3, bottle type: plastic bottle, glass bottle, can or ... ...
4, cap type: screw cap, crown cap, can lid or ... ...
5, for water treatment, it's better offer us the raw water quality report ... ...

Q: What can I do if I haven't gotten any clue of the production line? I just wanna open a factory and to do the business.
A: Don't worry about this; You can inform us:
1, the exact production you wanna deal with;
2, the budget of the production line; If no budget of the business, I will send you the popular machine in our factory for your ref;
3, we will help tp design everything including the machine layout and factory layout;

Q: This is the first time I cooperate with your factory. How can I trust you about the machien quality?
A: Before ordering the machine, we will make the offer very clear. For example, the material thickness, the brand etc. We can have the video call and I will show what we have in the factory;
Also you can visit us to see the machine;


Q: If the quality doesn't meet my requirment, how can you solve this problem?
A: Before ordering the machine, we will negotiate the machine inspection standard. Then start production; If you are not satisfied with the quality, show us, we will re-do it before shipping;

Q: Can I run the machines in your factory if I buy the complete line in your factory?
A: Sure, why not. We will have the line connected and tested in our factory before shipping even you didn't mention; We will make it working before arriving at your factory;

Q: How can I get the machine?
A: Our company have the export license, so we can help to ship the machine to discharge port that you are available.

Q: How can I install the machine and commissioning? Do you have the technician to my factory?
A: We have the technician available to your factory for machine installation and commissioning; BUT client should be responsible for the round-way flight tickets, technicians' daily salary, local transportation, local hotel and eating.
