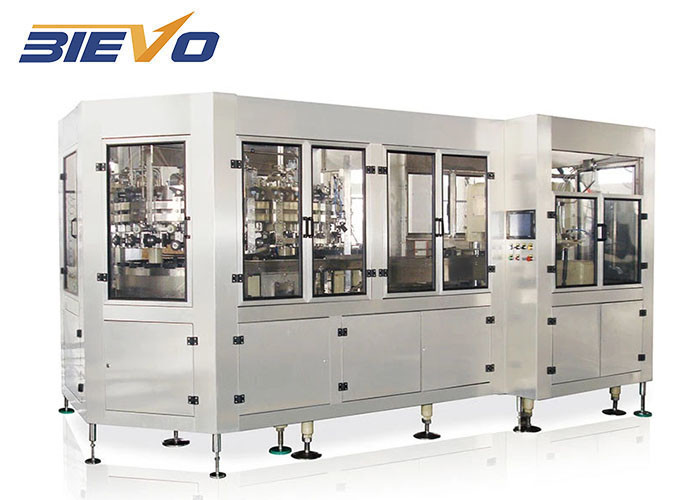

330-1000ml Beer Can Filling Machine 415V Tin Can Filling Machine
Product Details:
| Place of Origin: | China,Jiangsu |
| Brand Name: | BIEVO |
| Certification: | CE |
| Model Number: | DGF12-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 20000dollers/set |
| Packaging Details: | wood case |
| Delivery Time: | 20-30working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Type: | Beer Filling Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Material: | SUS 304 | Voltage: | 220V / 380V / 415V |
| Dimension(L*W*H): | 2200X2100X2200MM | Weight: | 2500KG |
| Filling Material: | Beer /carbonated Drinks | Filling Valve Head: | Multi-Head |
| Bottle Shape: | Cans /glass Bottle | Core Components: | Pump, PLC |
| Filling Accuracy: | 99.9% | Certification: | CE, ISO 9001:2008 |
| Condition: | New | Key Selling Points: | Full Automatic |
| Bottle Size: | 200ml-1000ml (Customized) | Function: | Cans Filling Sealing Machine |
| Control System: | Plc+touch Screen | Workshop Layout: | Free Design |
| Application: | Beverage | Packaging Material: | Wood |
| Driven Type: | Electric | Machinery Capacity: | 1500bph |
| High Light: | 330ml Beer Can Filling Machine,1000ml Beer Can Filling Machine,415V tin can filling machine |
||
Product Description
Automatic 330ml Craft Beer Beverage Juice Aluminum Cans Filling Sealing Machine
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing
<2> All 304/316 stainless steel construction
<3> Automatic stop when lack of bottle
<4>Capping effect is stable and reliable ,Defective rate ≤0.2％ .
<2>Special lubrication system, keep products clean, health, safety
<3>Extended service life
<4>Electric eyes design keep whole line running safety and quickly
<5>Overload protection mechanism to effectively ensure the safety of the machine
Product Paramenters:
|
Model
|
DYGF12-2
|
DYGF18-4
|
DYGF24-4
|
|
Amoust of working position
|
filling 12, sealing 2
|
filling 18, sealing 4
|
filling 24, sealing 4
|
|
Production Speed
|
3000CPH(330ml)
|
6000CPH
|
10000CPH
|
|
Pressure of rinse water
|
0.06~0.2Mpa
|
0.06~0.2Mpa
|
0.06~0.2Mpa
|
|
Main motor power
|
2.87kw
|
3.12kw
|
3.92kw
|
|
Dimension(L*W*H)mm
|
2.7*2.3*2.7(L*W*H)
|
2.8*2.6*2.7(L*W*H)
|
2.95*2.6*2.7(L*W*H)
|
|
Weight
|
3500kg
|
4750kg
|
6000kg
|
| S/N | Name | Brand | Country |
| 1 | Main motor | ABB | Switzerland |
| 2 | Inverter | MITSUBISHI | Japan |
| 3 | PLC | OMRON | Japan |
| 4 | Touch screen | MITSUBISHI | Japan |
| 5 | Contactor | SCHNEIDER | France |
| 6 | Thermo- relay | SCHNEIDER | France |
| 7 | Air-break switch | SCHNEIDER | France |
| 8 | Proximity switch | TURCK | USA |
| 9 | Photoelectric switch | BANNER | USA |
| 10 | Air circuit system | SMC | Japan |
| 11 | Water pump | Southern | Japan |
Zhangjiagang City Bievo Machinery Co., Ltd. is located in a national level development zone - Zhangjiagang Economic And Technology Development Zone, covering area more than 8,000 square meters.We enjoy convenient transportation with Shanghai Hongqiao International Airport and Shanghai Pudong International Airport on hand.Which accumulated a great number of China's top technologists in the liquid beverage industry.We have complete system from designing, manufacturing, installation, training to after service.Our main product water production line, carbonated beverage production line . Fruit juice and milk production line ,3 to 5 gallons production line, daily chemical production line and so on.Plat and tube UHT device, CIP system.All the products are sold well.We devote ourselves to the development, research and production of liquid food and beverage filling and packing industry .
1. A: Are you factory?How many workers do you have?
<1>Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
<2>Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
<3>Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
